Display Check Mode

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

COLOR BAR CHECK
HINT:
- This mode checks the color display on the multi-display.
- Illustrations may differ from the actual vehicle depending on the device settings and options.
1. Enter diagnostic mode (see DTC CHECK / CLEAR ).
2. Select "Display Check" from the "Diagnosis MENU" screen.

  Fig 1: Identifying "Diagnosis MENU" Display Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

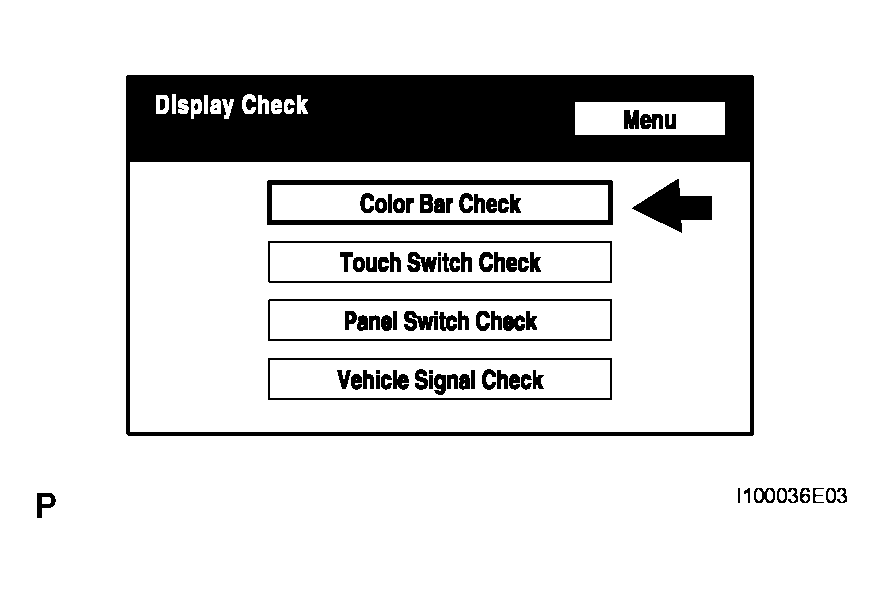

3. Select "Color Bar Check" from the "Display Check" screen.

  Fig 2: Identifying "Display Check" Display Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Select a color bar from the "Color Bar Check Mode" screen.
  HINT:
  - The entire screen turns to the color or stripe selected.
  - Touching the display will return to the "Color Bar Check" screen.
TOUCH SWITCH CHECK
HINT:
- This mode checks the touch switches on the multi-display.
- Illustrations may differ from the actual vehicle depending on the device settings and options.
1. Enter diagnostic mode (see DTC CHECK / CLEAR ).

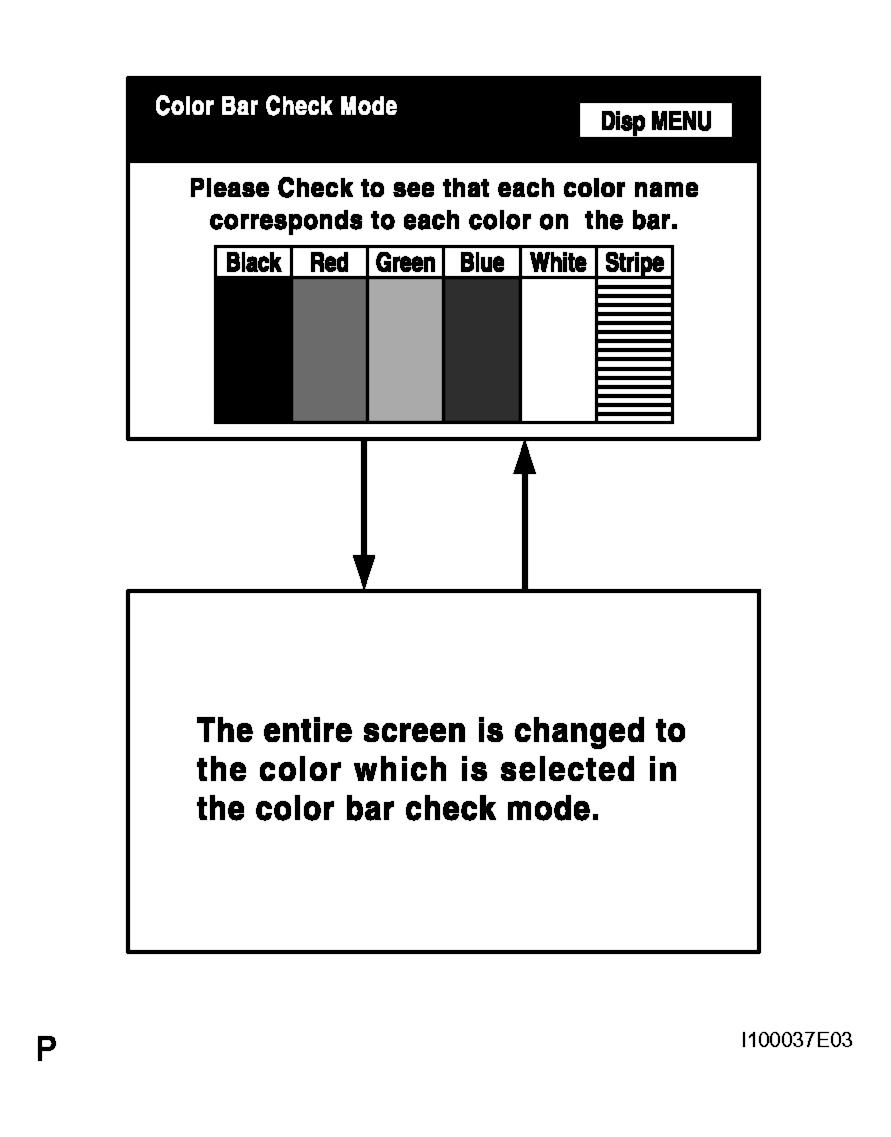

  Fig 3: Identifying "Color Bar Check Mode" Display Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select "Display Check" from the "Diagnosis MENU" screen.

  Fig 4: Identifying "Diagnosis MENU" Display Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Touch Switch Check" from the "Display Check" screen.

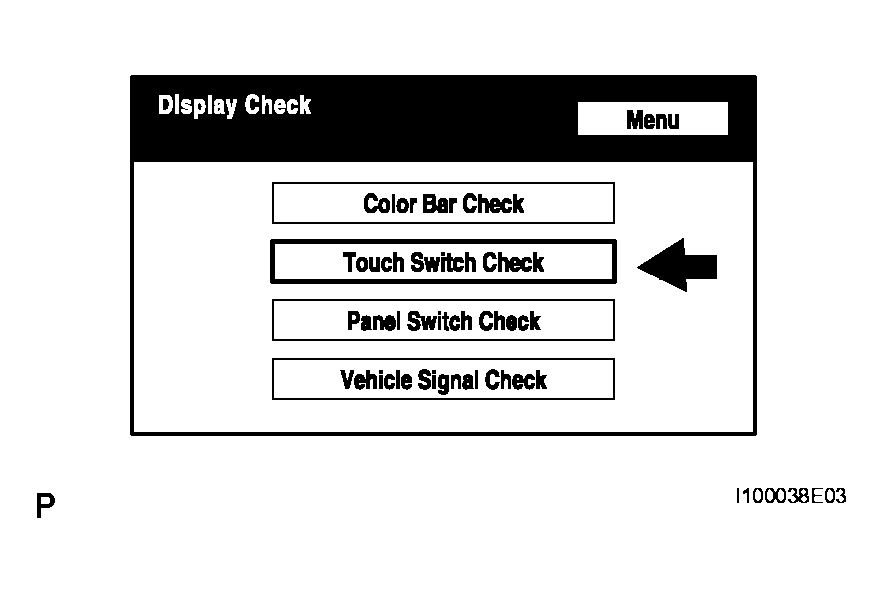

  Fig 5: Identifying "Display Check" Display Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.
  HINT:
  - A "+" mark is displayed where the display is touched.
  - The "+" mark remains on the display even after the finger is removed.

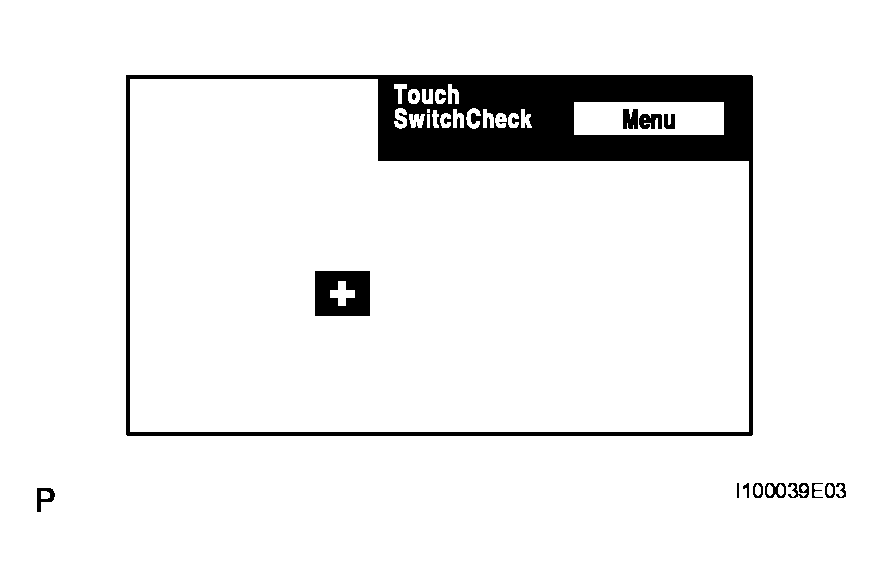

    Fig 6: Identifying "Touch Switch Check" Display Screen
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PANEL SWITCH CHECK

HINT:

This mode checks the panel switches on the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options.

Enter diagnostic mode (see DTC CHECK / CLEAR ).
Select "Display Check" from the "Diagnosis MENU" screen.

Fig 7: Identifying "Diagnosis MENU" Display Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Panel Switch Check" from the "Display Check" screen.

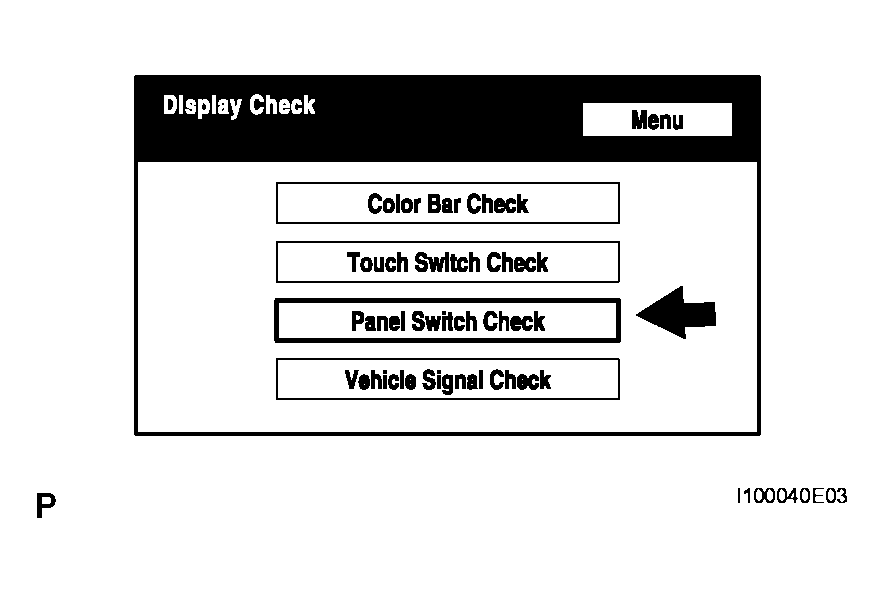

Fig 8: Identifying "Display Check" Display Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Operate each switch and check that the switch name and condition are correctly displayed.

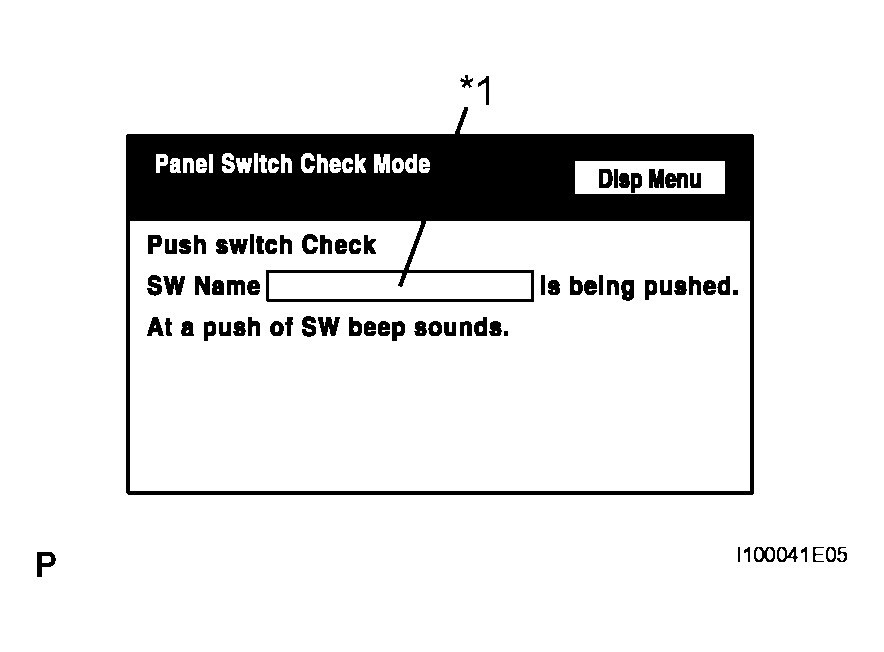

Fig 9: Identifying "Panel Switch Check" Display Screen

DISPLAY AND CONTENTS CHART

Display	Contents
Push switch name / *1	Name of the pressed switch is displayed If more than one switch is pressed, "MULTIPLE" is displayed

VEHICLE SIGNAL CHECK
HINT:
- This mode checks the vehicle signal status input to the multi-display.
- Illustrations may differ from the actual vehicle depending on the device settings and options.
1. Enter diagnostic mode (see DTC CHECK / CLEAR ).
2. Select "Display Check" from the "Diagnosis MENU" screen.

  Fig 10: Identifying "Diagnosis MENU" Display Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Vehicle Signal Check" from the "Display Check" screen.

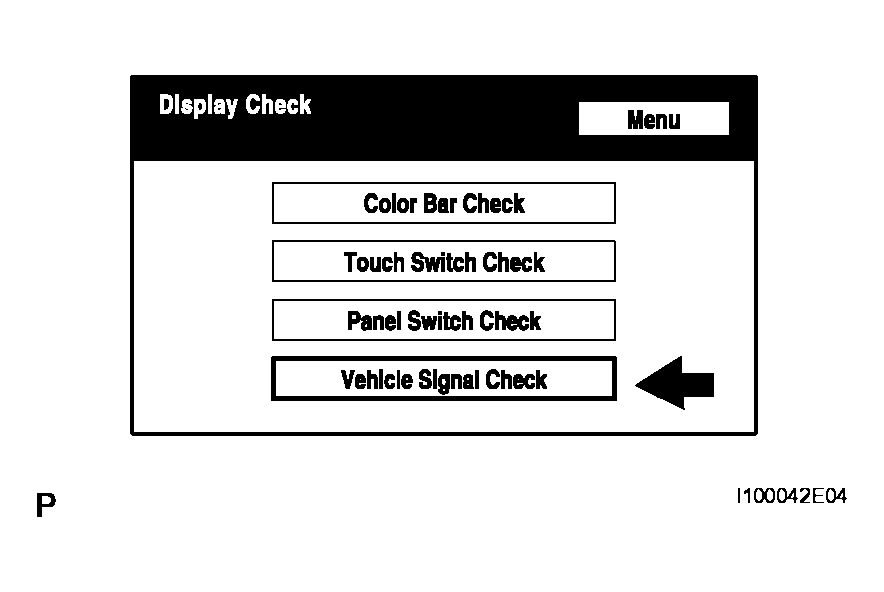

  Fig 11: Identifying "Display Check" Display Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
  HINT:
  - Only conditions having inputs are displayed.
  - This screen is updated once per second when input signals to the vehicle are changed.

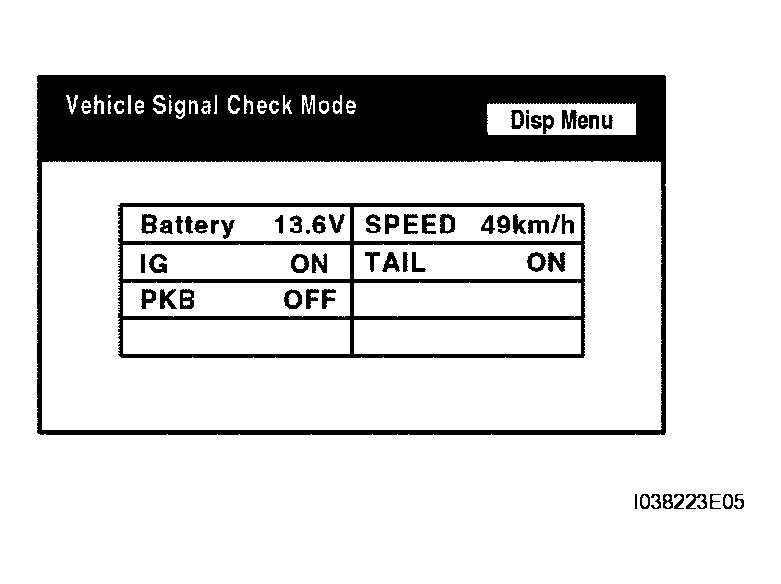

    Fig 12: Identifying "Vehicle Signal Check Mode" Display Screen
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
