Navigation Check Mode
WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
- GPS INFORMATION
HINT:
- This mode displays GPS satellite information.
- Illustrations may differ from the actual vehicle depending on the device settings and options.
- Enter diagnostic mode (see DTC CHECK / CLEAR ).
- Select "Navigation Check" from the "Diagnosis MENU" screen.

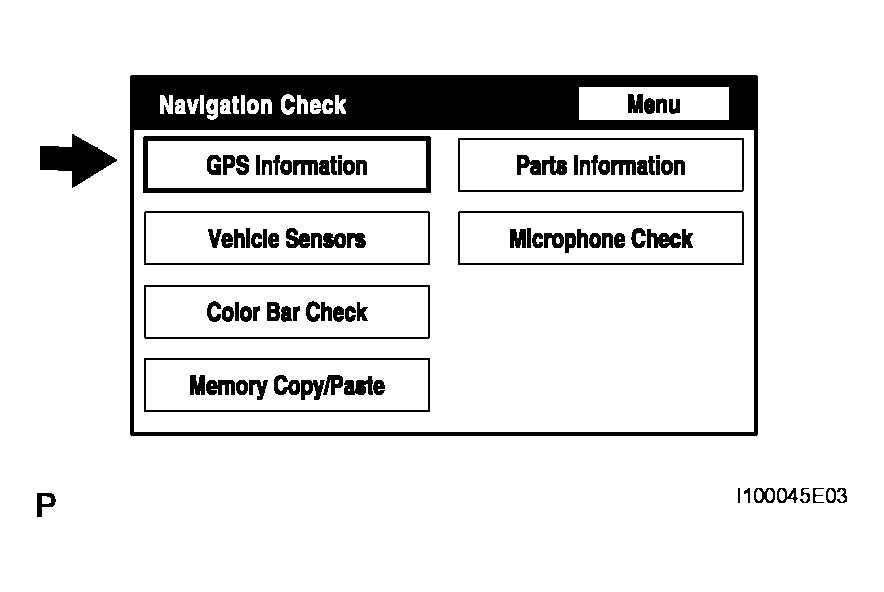

- Select "GPS Information" from the "Navigation Check" screen.

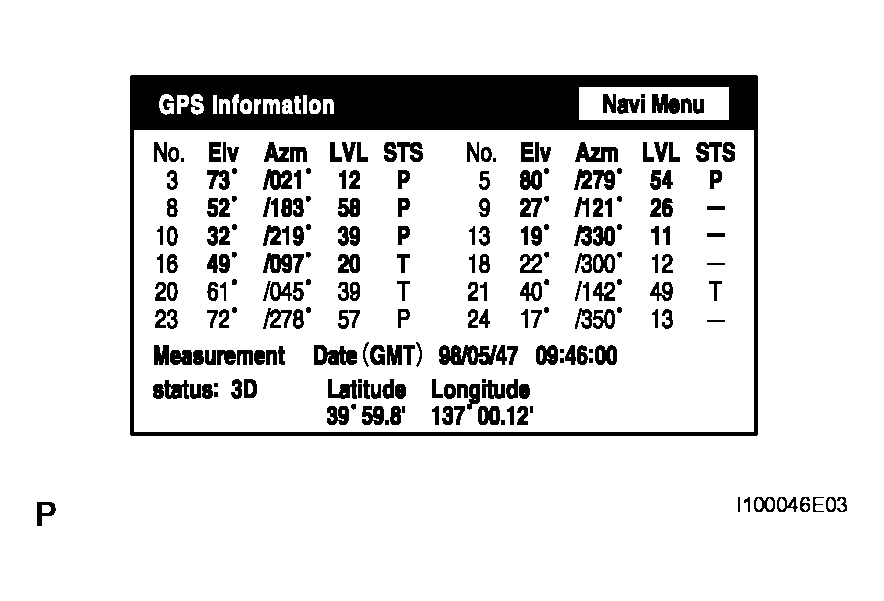

- When GPS information is displayed, check the GPS conditions.
HINT:
This screen is updated once per second when input signals to the vehicle are changed.
- VEHICLE SENSORS
HINT:
- This mode checks the vehicle signal status to the navigation ECU.
- Illustrations may differ from the actual vehicle depending on the device settings and options.
- Enter diagnostic mode (see DTC CHECK / CLEAR ).

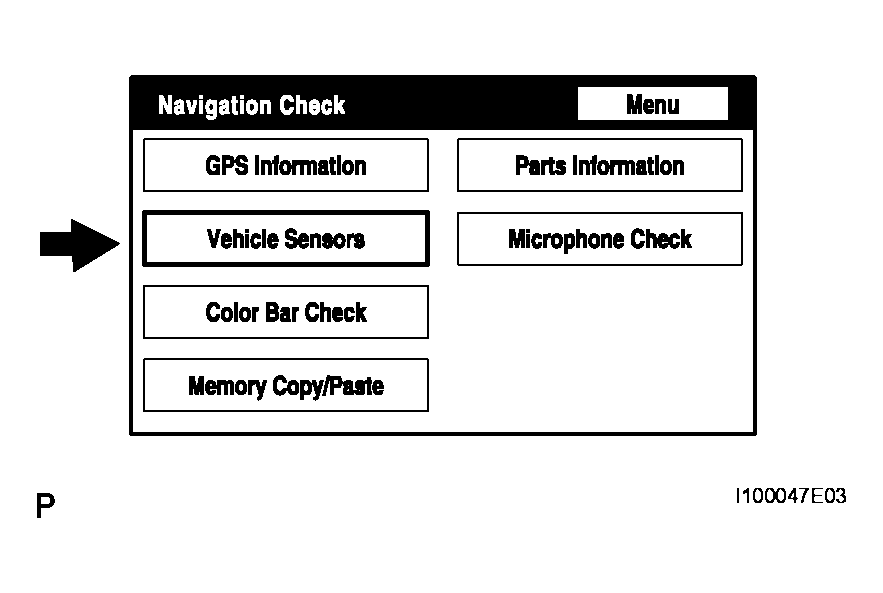

- Select "Navigation Check" from the "Diagnosis MENU" screen.

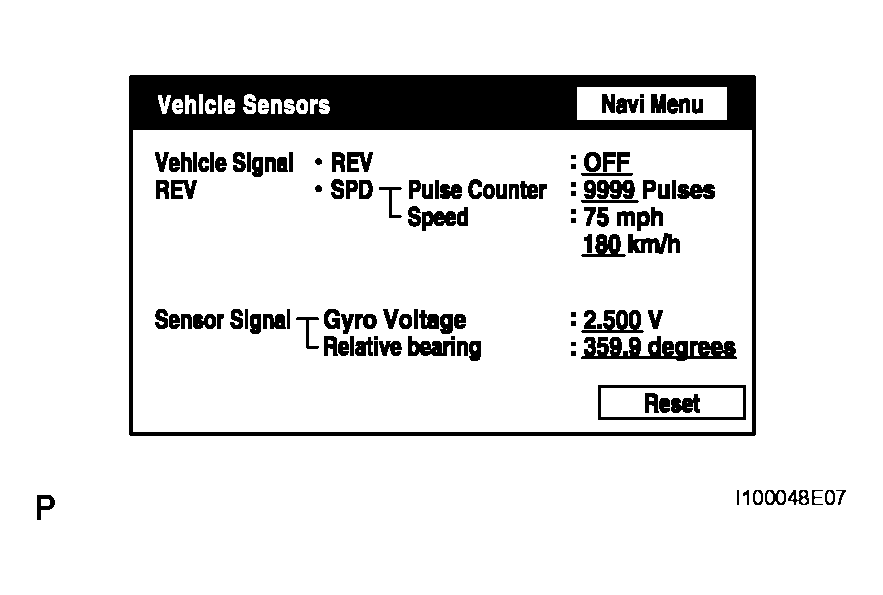

- Select "Vehicle Sensors" from the "Navigation Check" screen.
- Check all the signals and sensors when vehicle signal information is displayed.
HINT:
This screen is updated once per second when input signals to the vehicle are changed.
- NAVI COLOR BAR CHECK
HINT:
- This mode checks the navigation color bars on the multi-display.
- Illustrations may differ from the actual vehicle depending on the device settings and options.
- Enter diagnostic mode (see DTC CHECK / CLEAR ).
- Select "Navigation Check" from the "Diagnosis MENU" screen.

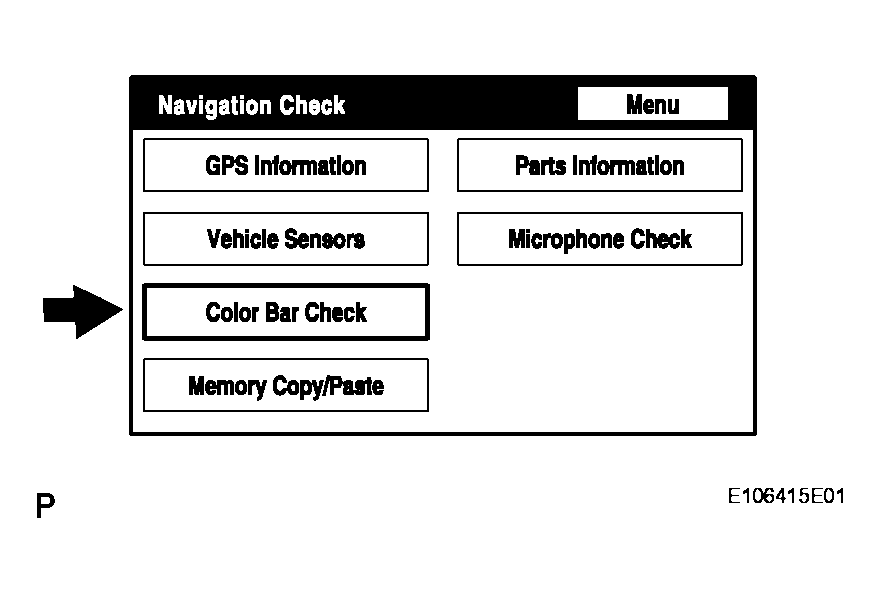

- Select "Color Bar Check" from the "Navigation Check" screen.

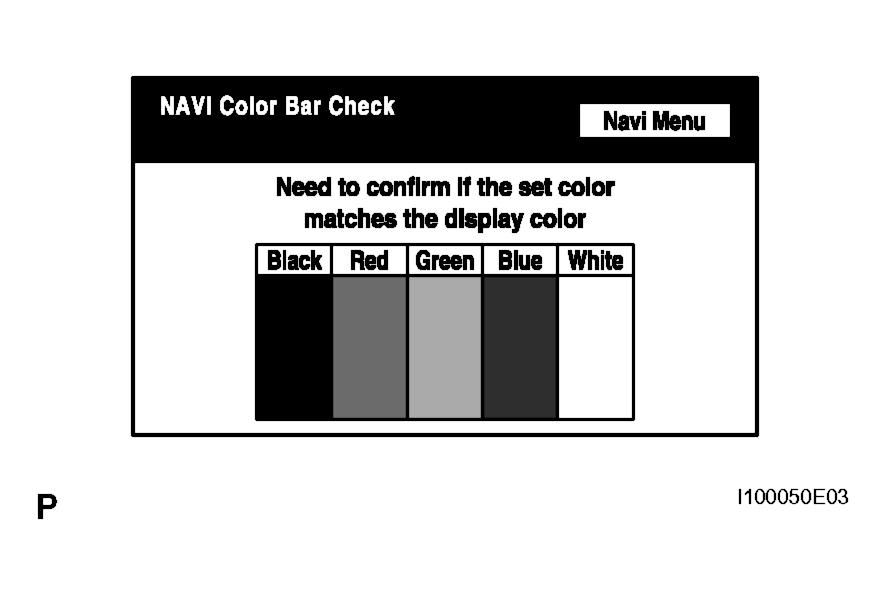

- Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.
HINT:
The selected color will not be displayed full-screen as in "Display Check Mode".
- PARTS INFORMATION
HINT:
- This mode checks the part information display function.
- Illustrations may differ from the actual vehicle depending on the device settings and options.
- Enter diagnostic mode (see DTC CHECK / CLEAR ).

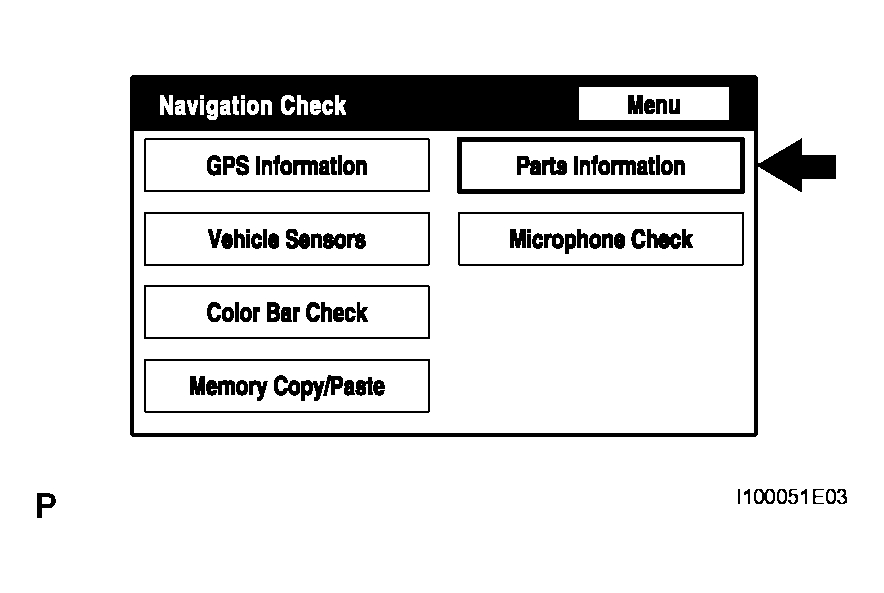

- Select "Navigation Check" from the "Diagnosis MENU" screen.
- Select "Parts Information" from the "Navigation Check" screen.
- Check the navigation and disc information when the "Parts Information" screen is displayed.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

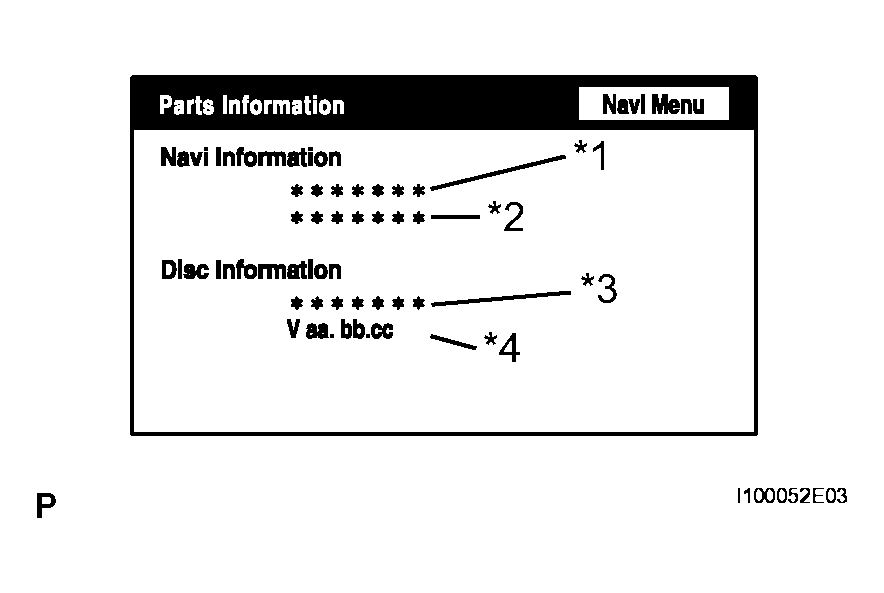

DISPLAY AND CONTENTS CHARTDisplay Contents Navigation Manufacturer / *1 Navigation ECU manufacturer name is displayed Navigation Version / *2 Navigation ECU version is displayed Disc Manufacturer / *3 Map disc manufacturer is displayed Disc Version / *4 Map disc version is displayed
- MICROPHONE CHECK
HINT:
- The microphone is checked in the "Navigation Check (Microphone Check)" mode.
- Illustrations may differ from the actual vehicle depending on vehicle specifications.
- Start diagnostic mode (see DTC CHECK / CLEAR ).
- Select "Navigation Check" from the "Diagnosis MENU" screen.

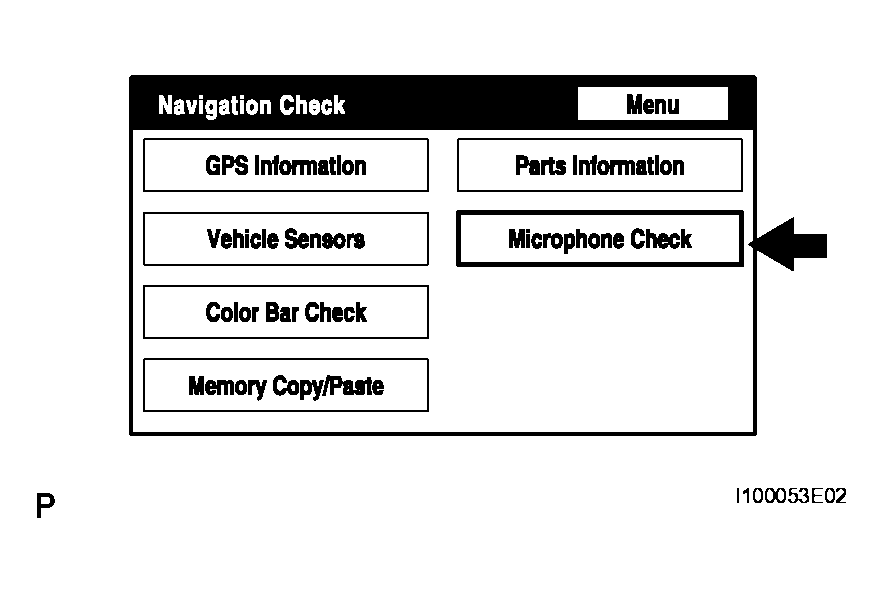

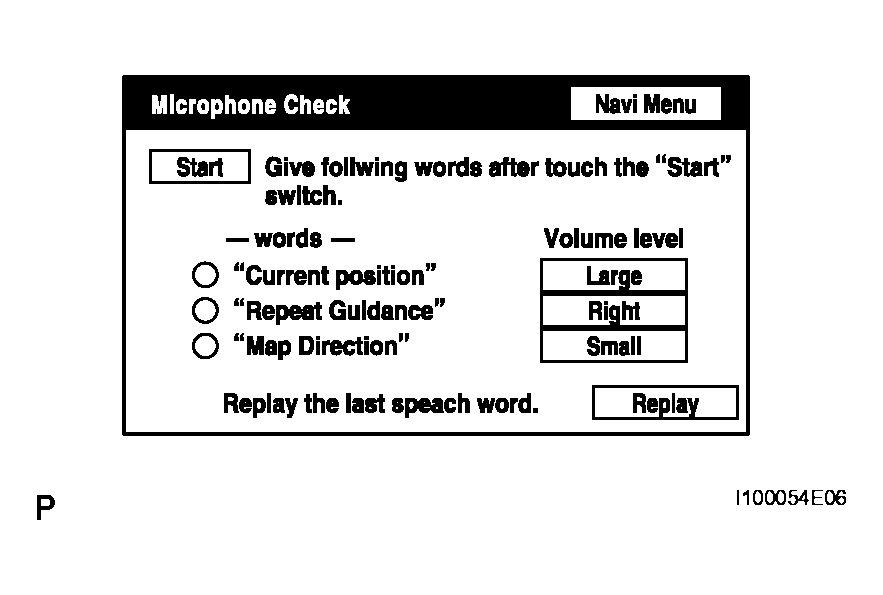

- Select "Microphone Check" from the "Navigation Check" screen.
- Perform the microphone check by following the directions on the "Microphone Check" screen.
- SCREEN NOISE AUTOMATIC ADJUSTMENT
HINT:
- This adjustment is performed to reduce noise when screen noise occurs upon replacing the multi-display, the navigation ECU or the television camera ECU.
- Illustrations may differ from the actual vehicle depending on the device settings and options.
- Perform both procedures below when the multi-display is replaced.
- When either the multi-display or the navigation ECU is replaced:
- Turn the engine switch on (ACC) and wait for at least 6 seconds to activate the diagnostic mode (see DTC CHECK / CLEAR ).
- Select "Navigation Check" from the "Diagnosis MENU" screen.

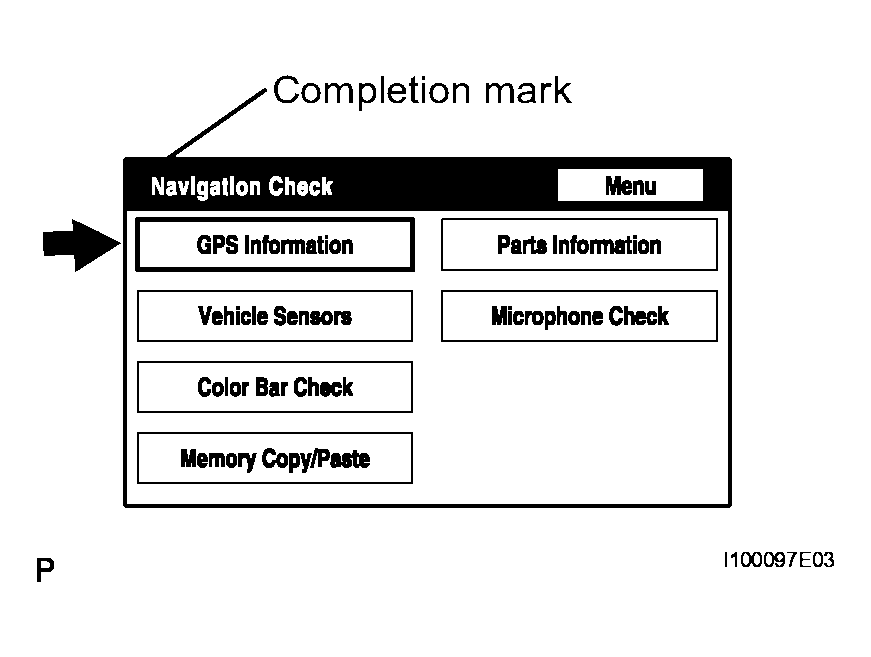

- The screen enters "Navigation Check" with a beep sound. Adjustment is completed when the completion mark is displayed.
- Cancel the diagnostic mode (see DTC CHECK / CLEAR ).
