Touch Panel Switch does not Function

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

CHECK TOUCH PANEL
1. Check for foreign matter on the display.
  OK : The display is clean.
NG : CLEAN DISPLAY AND RECHECK TOUCH PANEL

OK : GO TO NEXT STEP
CHECK TOUCH SWITCH (DISPLAY CHECK MODE)
1. Enter the "Display Check" mode (Touch Switch Check) (see DISPLAY CHECK MODE ).
2. Touch the display in the area where the abnormal switch appears.
  OK : A "+" mark appears at the touched position.
NG : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

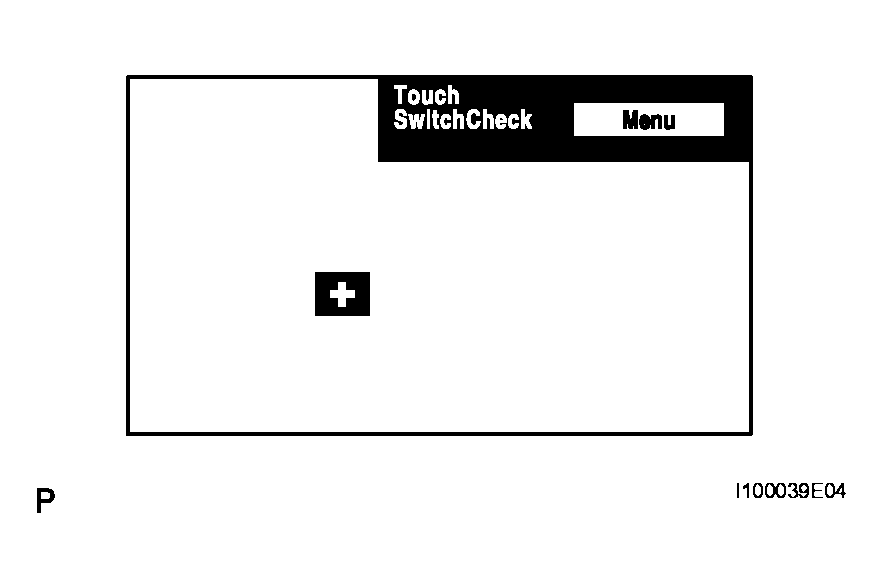

Fig 1: Identifying Touch Switch Check Display Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE MULTI-DISPLAY
