Inspection Procedure

CHECK TOUCH PANEL
1. Check for foreign matter on the display.
  OK: The display is clean.
1. NG: CLEAN THE DISPLAY AND RECHECK TOUCH PANEL
2. OK: Go to next step.
CHECK TOUCH SWITCH (DISPLAY CHECK MODE)
1. Enter the DISPLAY CHECK MODE (TOUCH SWITCH CHECK) .
2. Touch the display in the area where the abnormal switch occurs.
  OK: A "+" mark appears at the touched position.

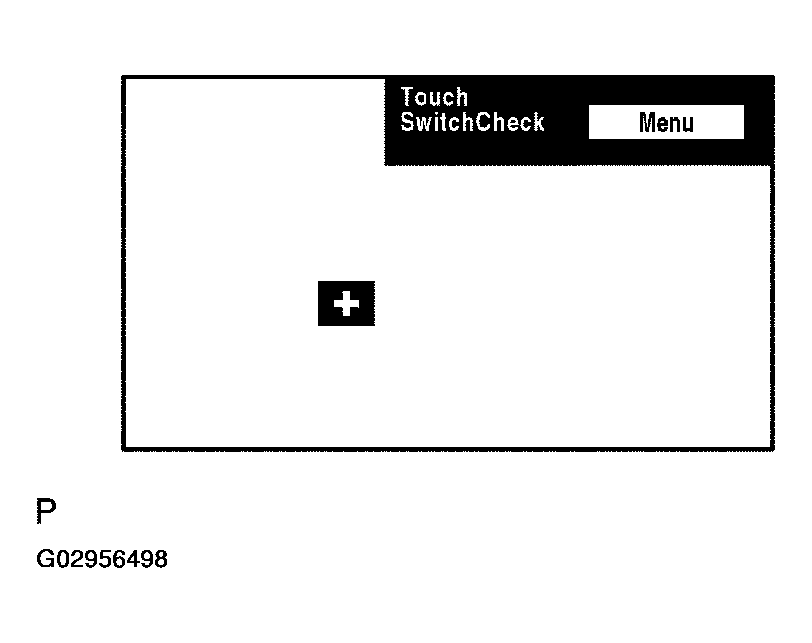

  Fig 1: Checking Touch Switch (Display Check Mode)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
2. OK: REPLACE MULTI-DISPLAY (See MULTI-DISPLAY (CENTER DISPLAY) )
