Headlamp Alignment Control Module: Service and Repair

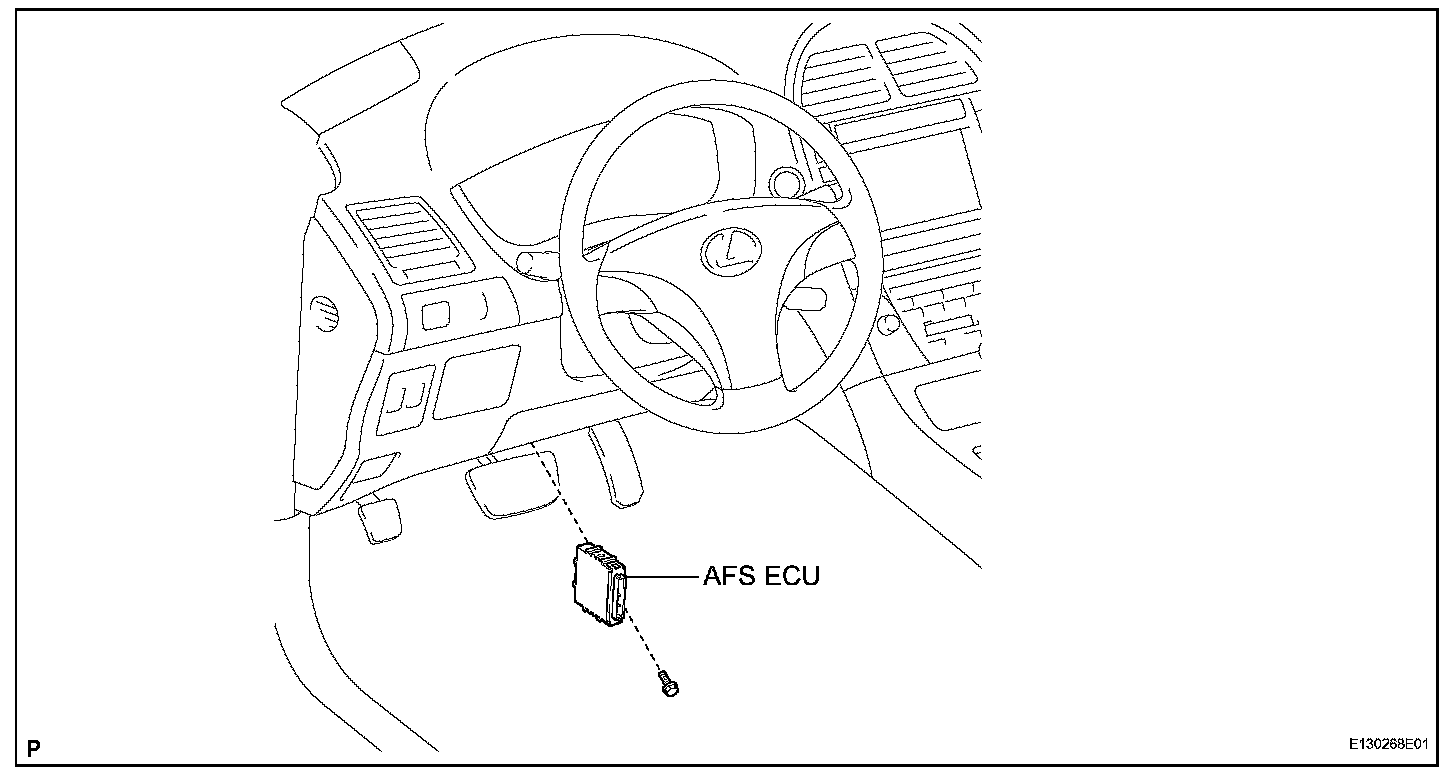

AFS ECU:

AFS ECU

REMOVAL

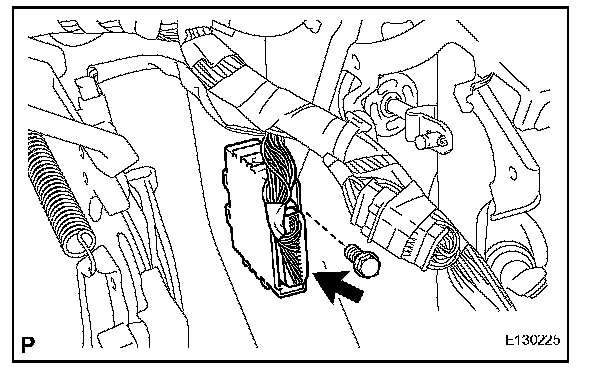

1. REMOVE AFS ECU




a. Disconnect the connector.
b. Remove the bolt and the AFS ECU.

INSTALLATION

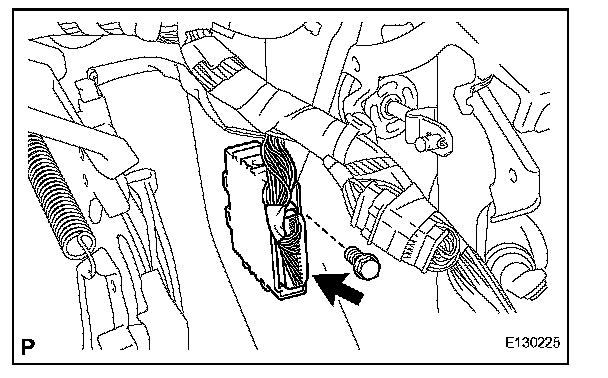

1. INSTALL AFS ECU




a. Install the AFS ECU with the bolt.
b. Connect the connector.

2. HEIGHT CONTROL SENSOR SIGNAL INITIALIZATION.
3. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT
4. PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine)
5. PREPARATION FOR HEADLIGHT AIMING (Using a Screen)
6. HEADLIGHT AIMING INSPECTION
7. HEADLIGHT AIMING ADJUSTMENT
