Height Control Sensor: Components

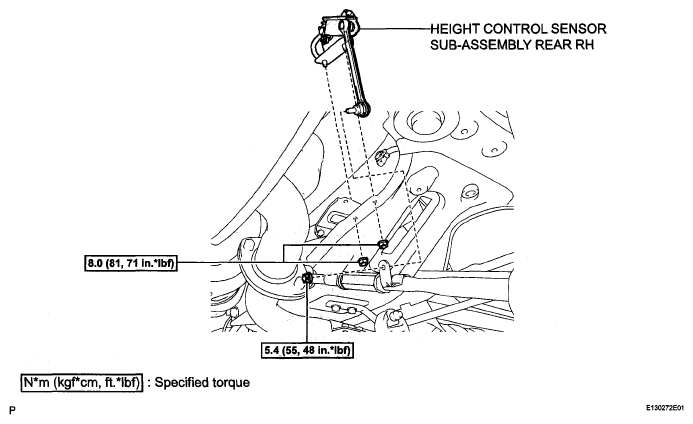

Fig 1: Height Control Sensor Replacement Components With Torque Specifications
G05252540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
