Front Seat Assembly: Components

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)
G05253958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

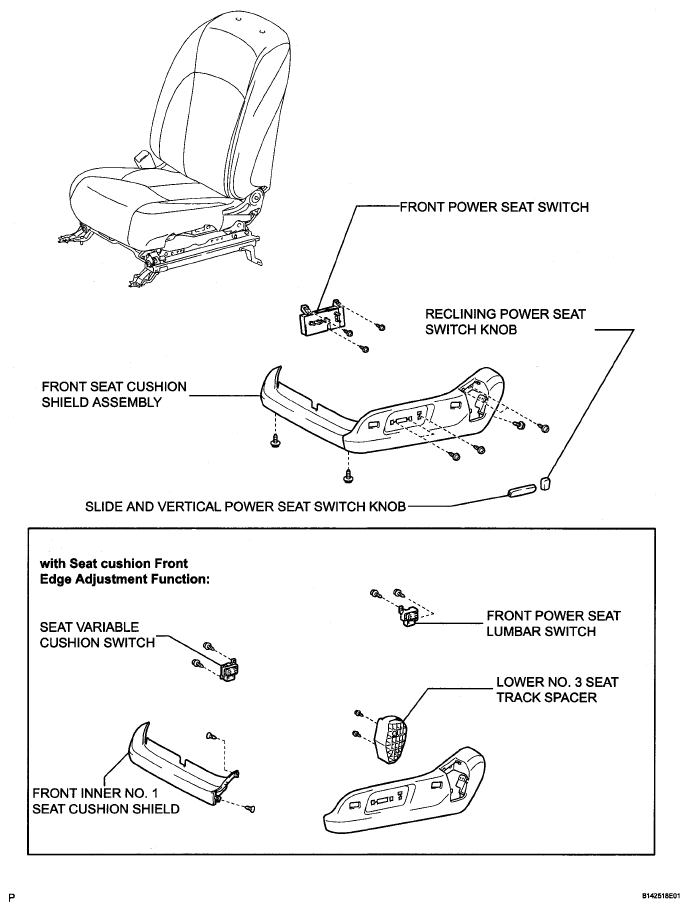

Fig 2: Identifying Front Seat Assembly Components (2 Of 5)
G05253959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

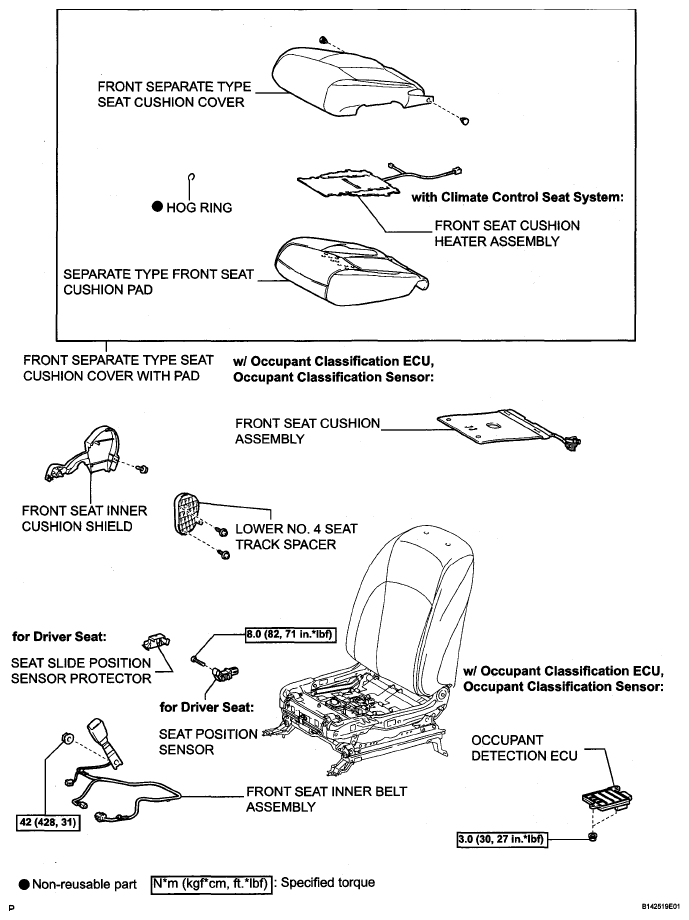

Fig 3: Front Seat Assembly Replacement Components With Torque Specifications (3 Of 5)
G05253960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

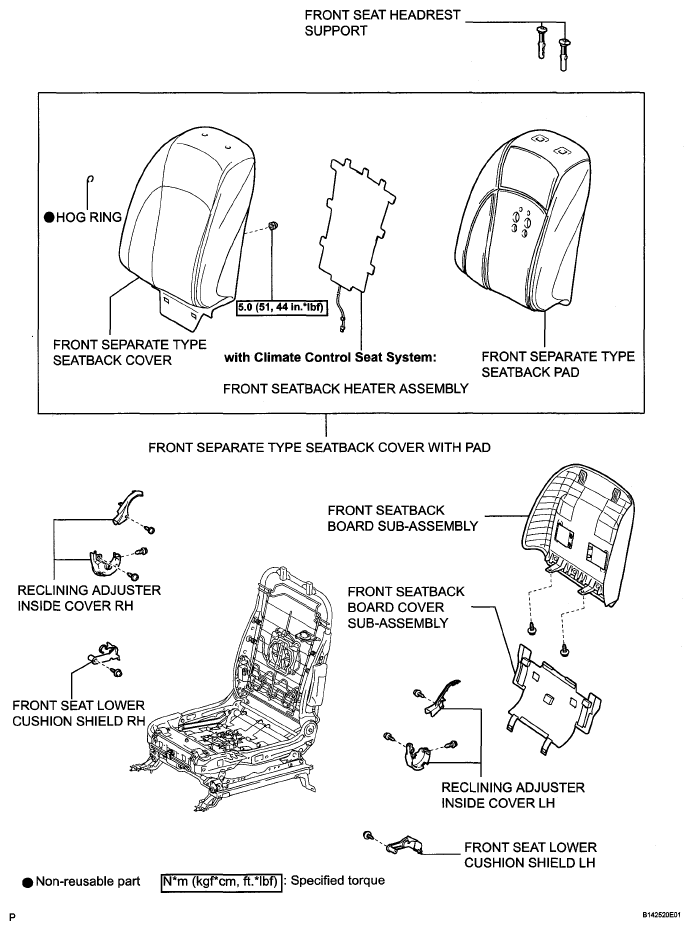

Fig 4: Front Seat Assembly Replacement Components With Torque Specifications (4 Of 5)
G05253961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

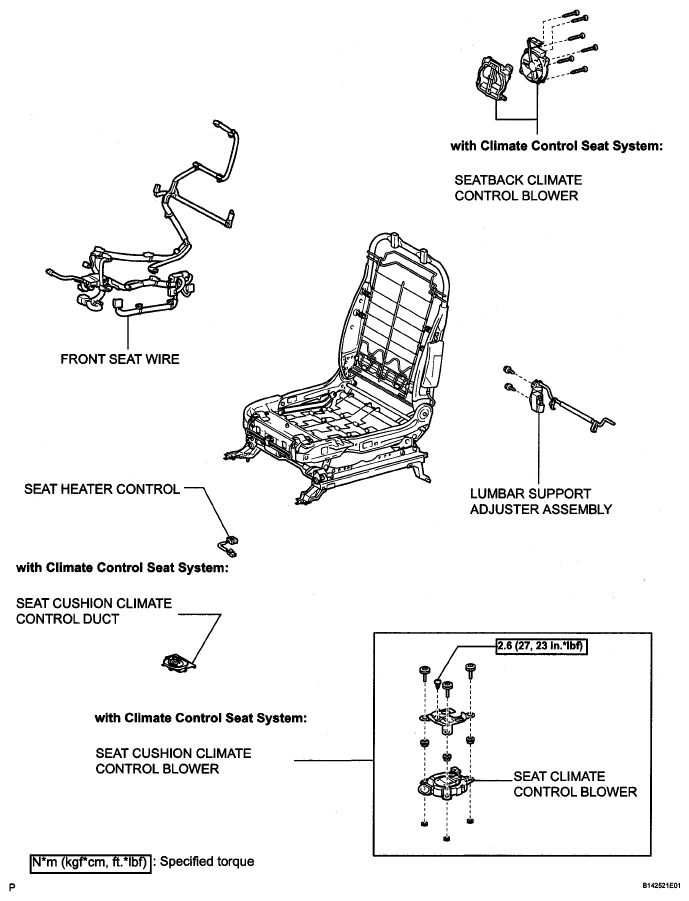

Fig 5: Front Seat Assembly Replacement Components With Torque Specifications (5 Of 5)
G05253962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
