Lumbar Support Adjuster Assembly: Components

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)
G05253958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

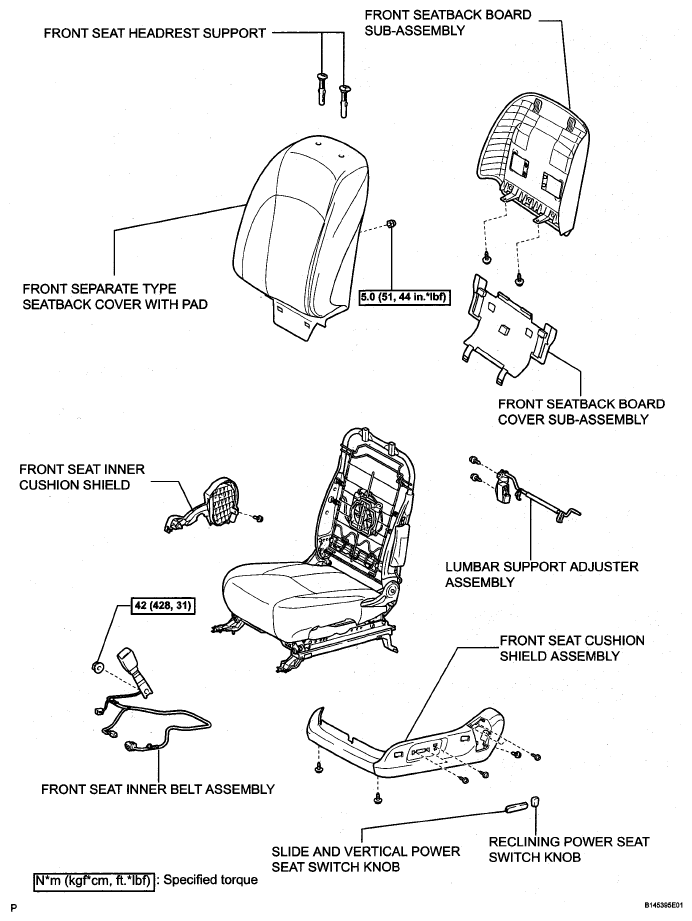

Fig 2: Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (2 Of 2)
G05254118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
