Seat Heater Control: Components

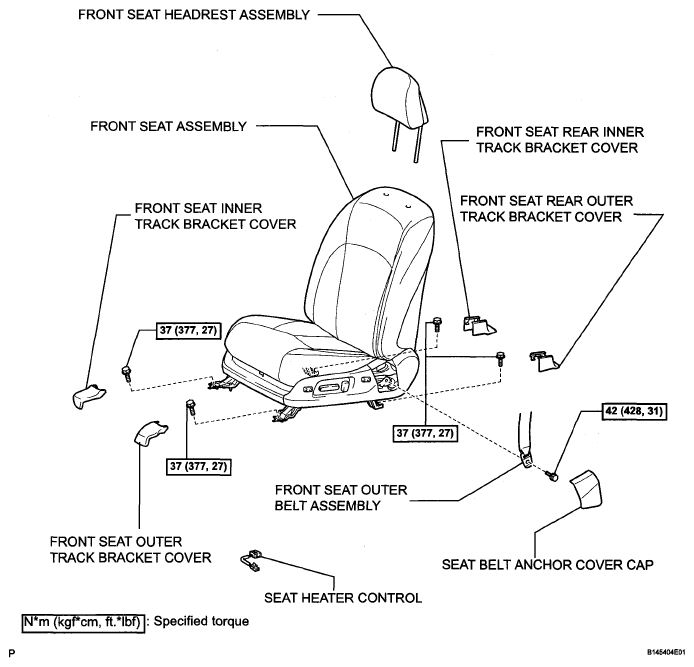

Fig 1: Seat Heater Control Replacement Components With Torque Specifications
G05254158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
