Inspection Procedure

  1. CHECK CRANKING
    1. When starting the engine, check whether the starter motor starts.

    OK: CHECK FOR INTERMITTENT PROBLEMS

    NG: Go to Next Step

  2. READ VALUE OF INTELLIGENT TESTER (STA SIGNAL)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the intelligent tester on.
    4. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / STARTER SIG. Read the values.
    5. Check the result when the engine switch is turned on (IG) and when the engine is started.

      Standard

      STANDARD RESULT REFERENCE

      Display (STARTER SIG) Condition
      OFF Engine switch on (IG)
      ON Engine start

    OK: Go to step   7

    NG: Go to Next Step

  3. INSPECT ECM (STSW VOLTAGE)
    1. Disconnect the A10 ECM Connector.
    2. Measure the voltage between the specified terminal of the ECM connector and body ground while cranking the engine.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      STSW (A10-14) - Body ground 9 to 14 V
      Fig 1: Identifying A10 ECM Connector Terminals
      G05247869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reconnect the ECM connector.

    NG: Go to step   11

    OK: Go to Next Step

  4. INSPECT ECM (STAR VOLTAGE)
    1. Remove the ST CUT relay from the engine room R/B.
    2. Measure the voltage between the specified terminal of the engine room R/B and body ground while cranking the engine.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      ST CUT relay (3) - Body ground 9 to 14 V
      Fig 2: Identifying Engine Room Relay Block & ST CUT Relay
      G04973819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reinstall the ST CUT relay.

    NG: Go to step   8

    OK: Go to Next Step

  5. INSPECT ST CUT RELAY
    1. Remove the ST CUT relay from the engine room R/B.
    2. Measure the resistance between the terminals.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)
      Fig 3: Inspecting ST CUT Relay
      G04942976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reinstall the ST CUT relay.

    NG: REPLACE ST CUT RELAY

    OK: Go to Next Step

  6. INSPECT PARK/NEUTRAL SWITCH ASSEMBLY
    1. Inspect the Park/Neutral Position (PNP) switch.
      1. Disconnect the B36 switch connector.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        RESISTANCE REFERENCE TABLE

        Gear Selector Lever Position Tester Connection Specified Condition
        P 4 - 5 Below 1 Ω
        N 4 - 5 Below 1 Ω
        Fig 4: Identifying Park/Neutral Position Switch Connector Terminals
        G05247754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Reconnect the PNP switch connector.

    NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY  (See ON-VEHICLE INSPECTION )

    OK: CHECK HARNESS AND CONNECTOR

  7. INSPECT STARTER RELAY
    1. Remove the ST relay from the engine room R/B.
    2. Measure the resistance between the terminals.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)
      Fig 5: Inspecting Starter Relay
      G04942976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reinstall the ST relay.

    NG: REPLACE STARTER RELAY

    OK: Go to Next Step

  8. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - STARTER RELAY)
    1. Disconnect the B36 park/neutral position switch connector.
    2. Remove the ST relay from the engine room R/B.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE REFERENCE (CHECK FOR OPEN)

      Tester Connection Specified Condition
      B36-9 - ST relay terminal (1) Below 1 Ω

      Standard resistance (Check for open)

      RESISTANCE REFERENCE (CHECK FOR OPEN)

      Tester Connection Specified Condition
      B36-9 or ST relay terminal (1) - Body ground 10 kΩ or higher

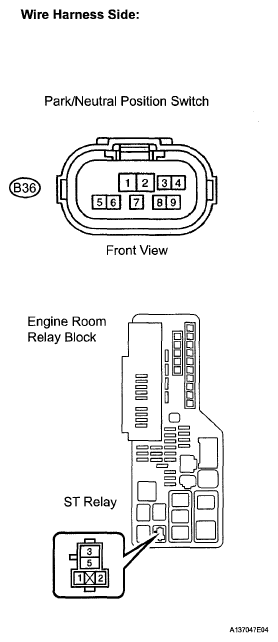

      Fig 6: Identifying Park/Neutral Position Switch Connector Terminal
      G05247874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reinstall the ST relay.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  9. INSPECT ENGINE ROOM RELAY BLOCK (STARTER RELAY VOLTAGE)
    1. Remove the ST relay from the engine room R/B.
    2. Measure the voltage between the specified terminal of the engine room R/B and body ground.

      Standard voltage

      VOLTAGE SPECIFICATION TABLE

      Tester Connection Specified Condition
      ST relay (5) - Body ground 9 to 14 V
      Fig 7: Inspecting Engine Room Relay Block (Starter Relay Voltage)
      G04973652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  10. INSPECT STARTER ASSEMBLY

    NG: REPAIR OR REPLACE STARTER ASSEMBLY

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER RELAY - STARTER, STARTER BATTERY)

  11. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - ECM)
    1. Disconnect the E58 main body ECU connector.
    2. Disconnect the A10 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE REFERENCE (CHECK FOR OPEN)

      Tester Connection Specified Condition
      STSW (E58-4) - STSW (A10-14) Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE REFERENCE (CHECK FOR SHORT)

      Tester Connection Specified Condition
      STSW (E58-4) or STSW (A10-14) - Body ground 10 kΩ or higher
      Fig 8: Identifying Main Body ECU & ECM Connector Terminals
      G05247876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the main body ECU connector.
    5. Reconnect the ECM connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO  SMART ACCESS SYSTEM WITH PUSH-BUTTON START
