Accelerator Pedal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Accelerator Pedal

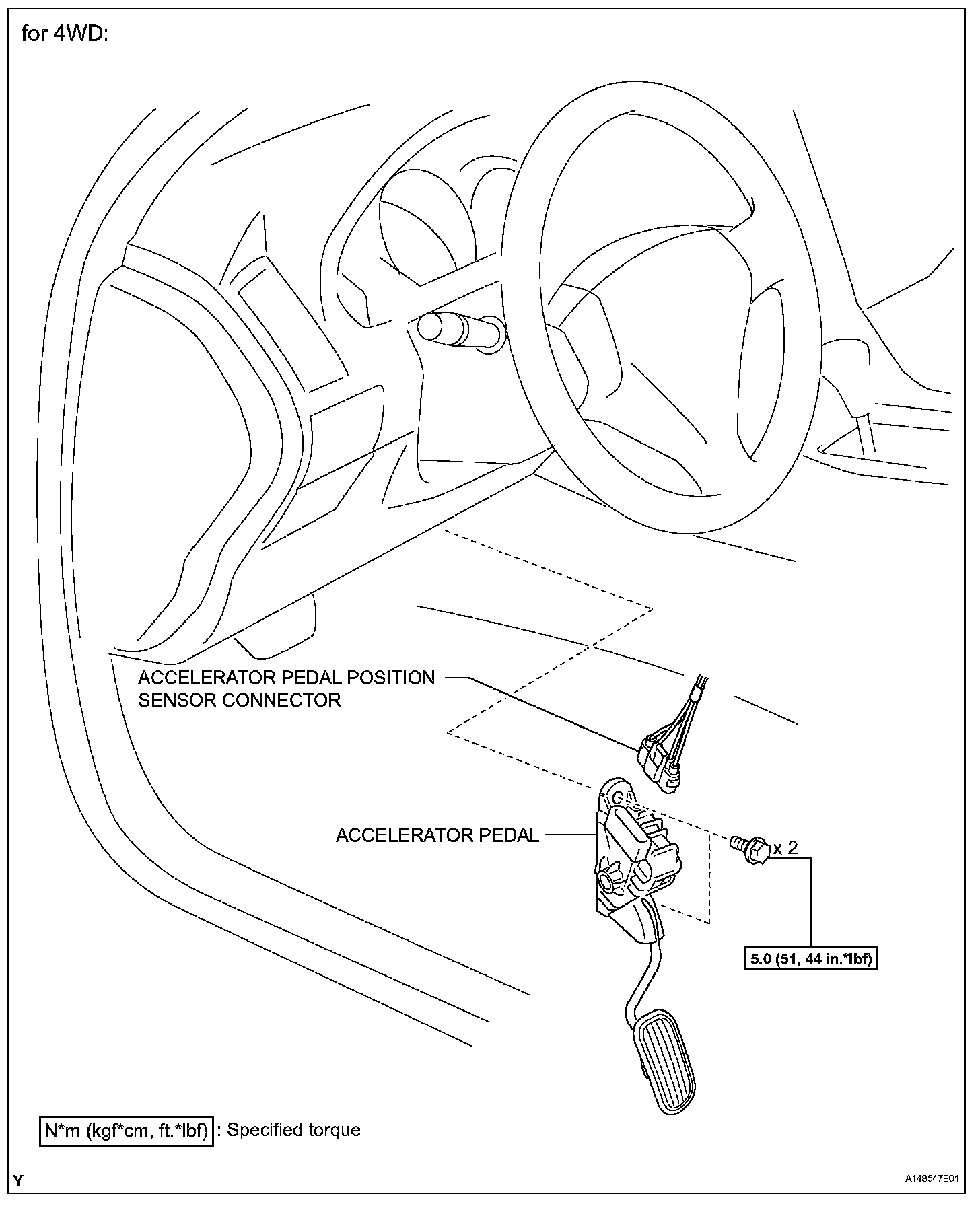

Accelerator Pedal:

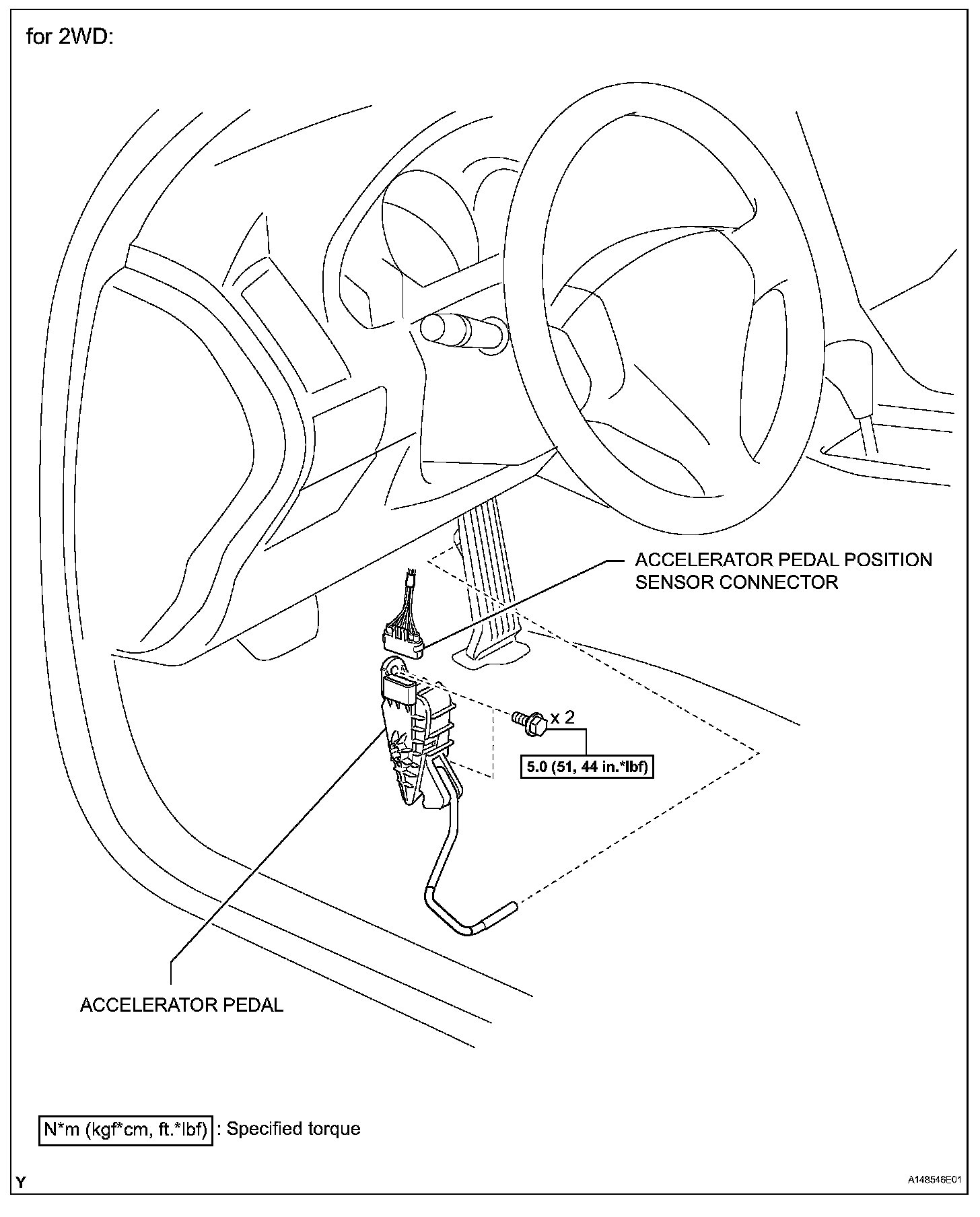

Accelerator Pedal:
