Fuel Injector

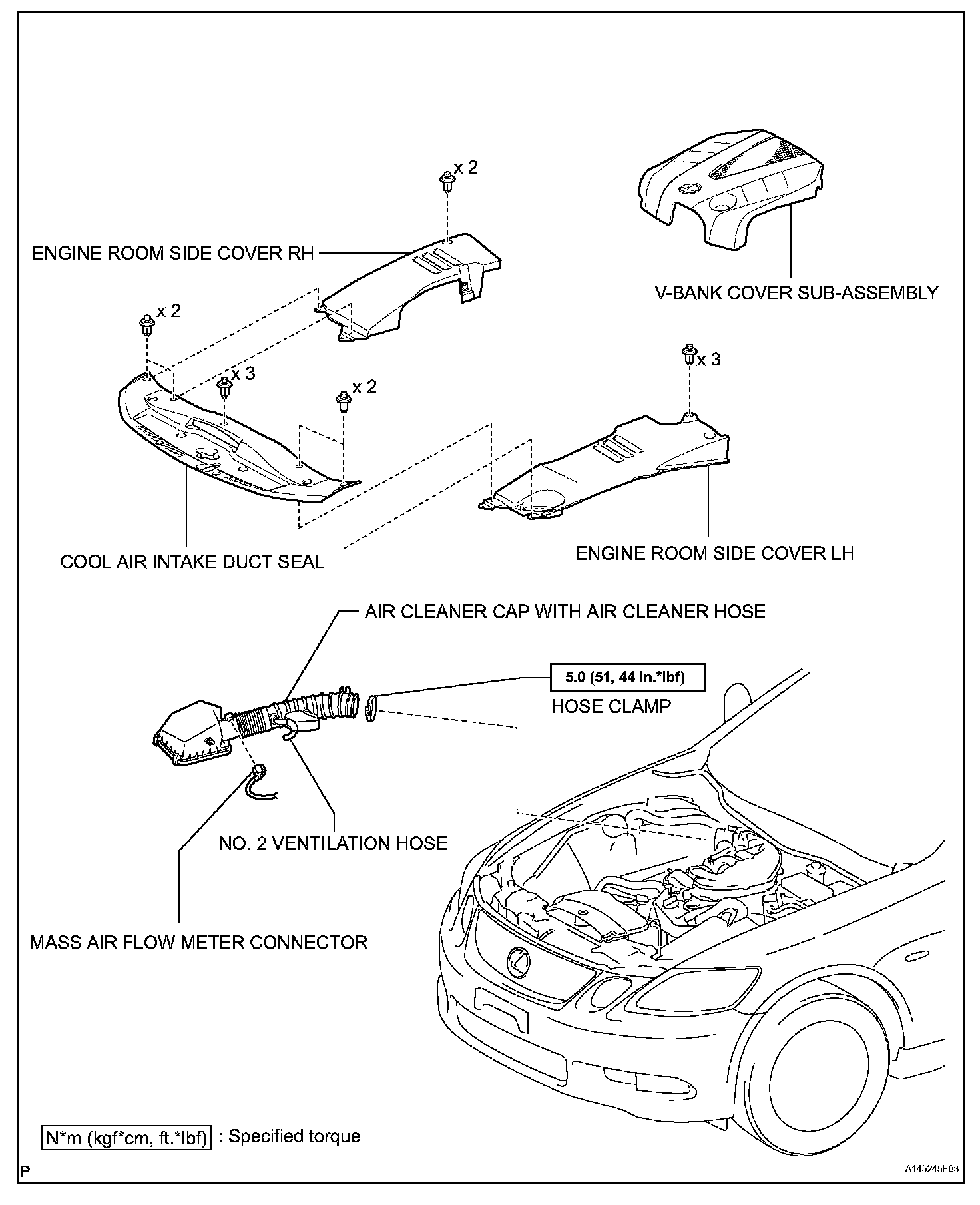

Fuel Injector (For Port Injection):

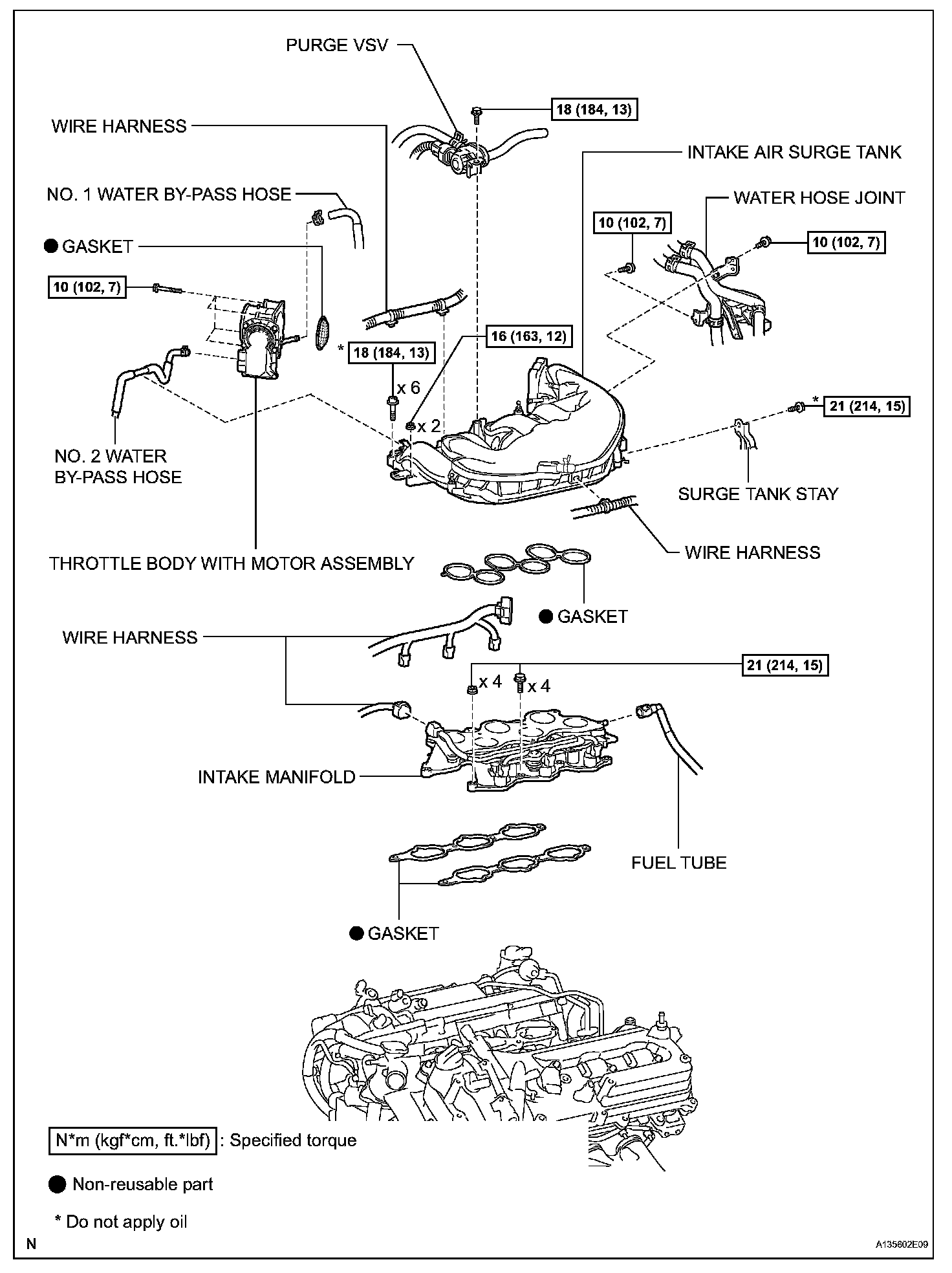

Fuel Injector (For Port Injection):

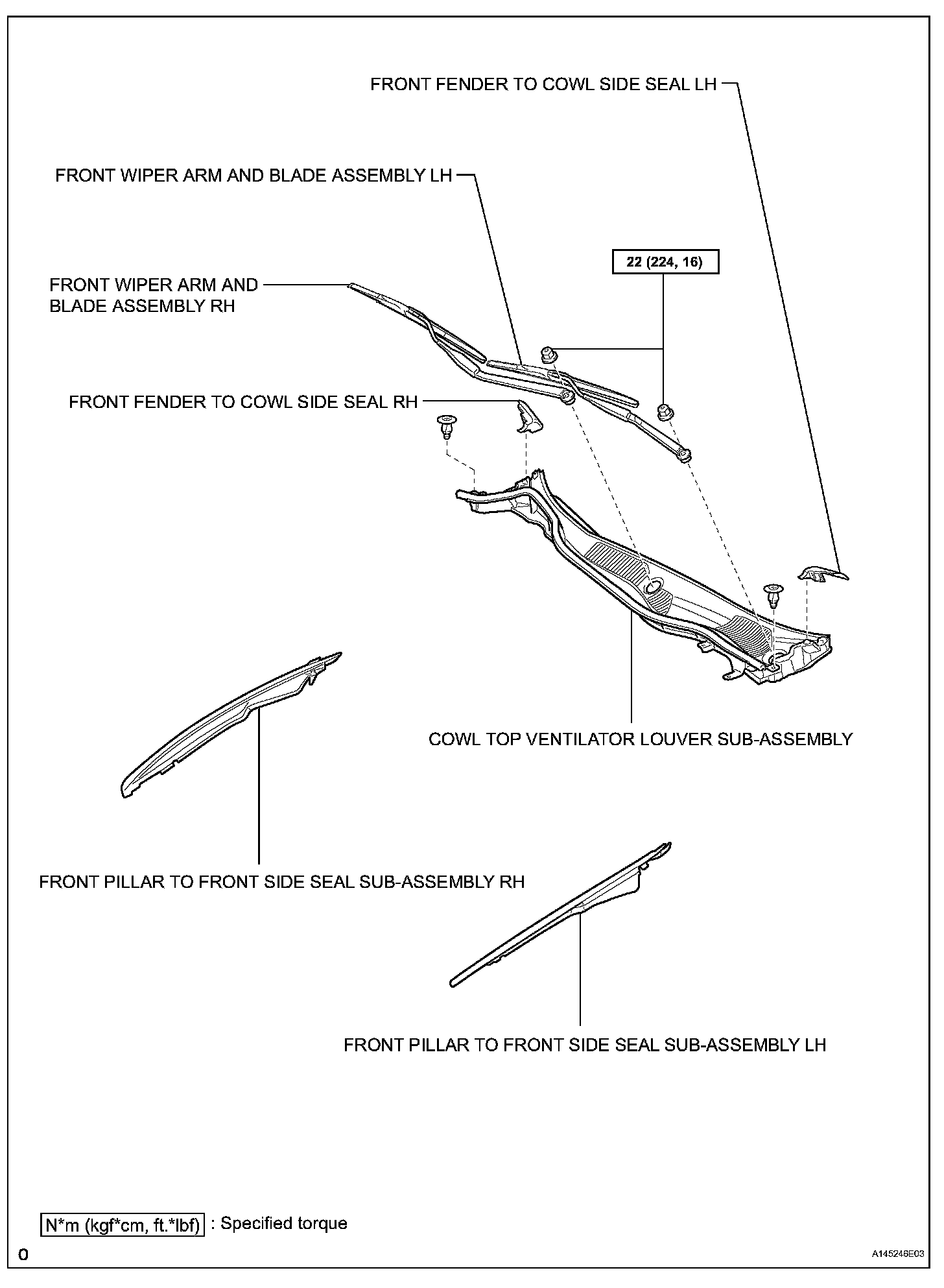

Fuel Injector (For Port Injection):

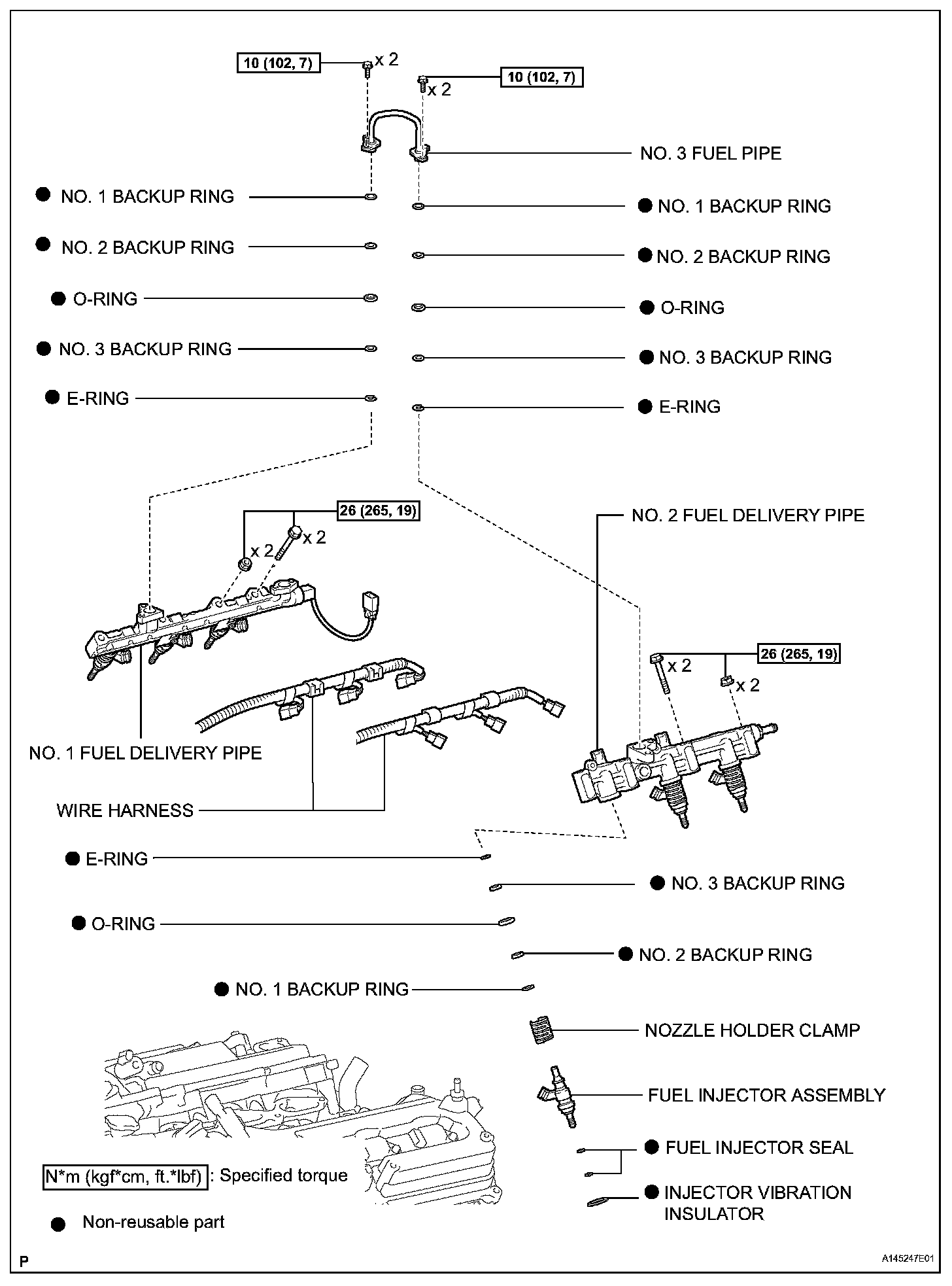

Fuel Injector (For Direct Injection):

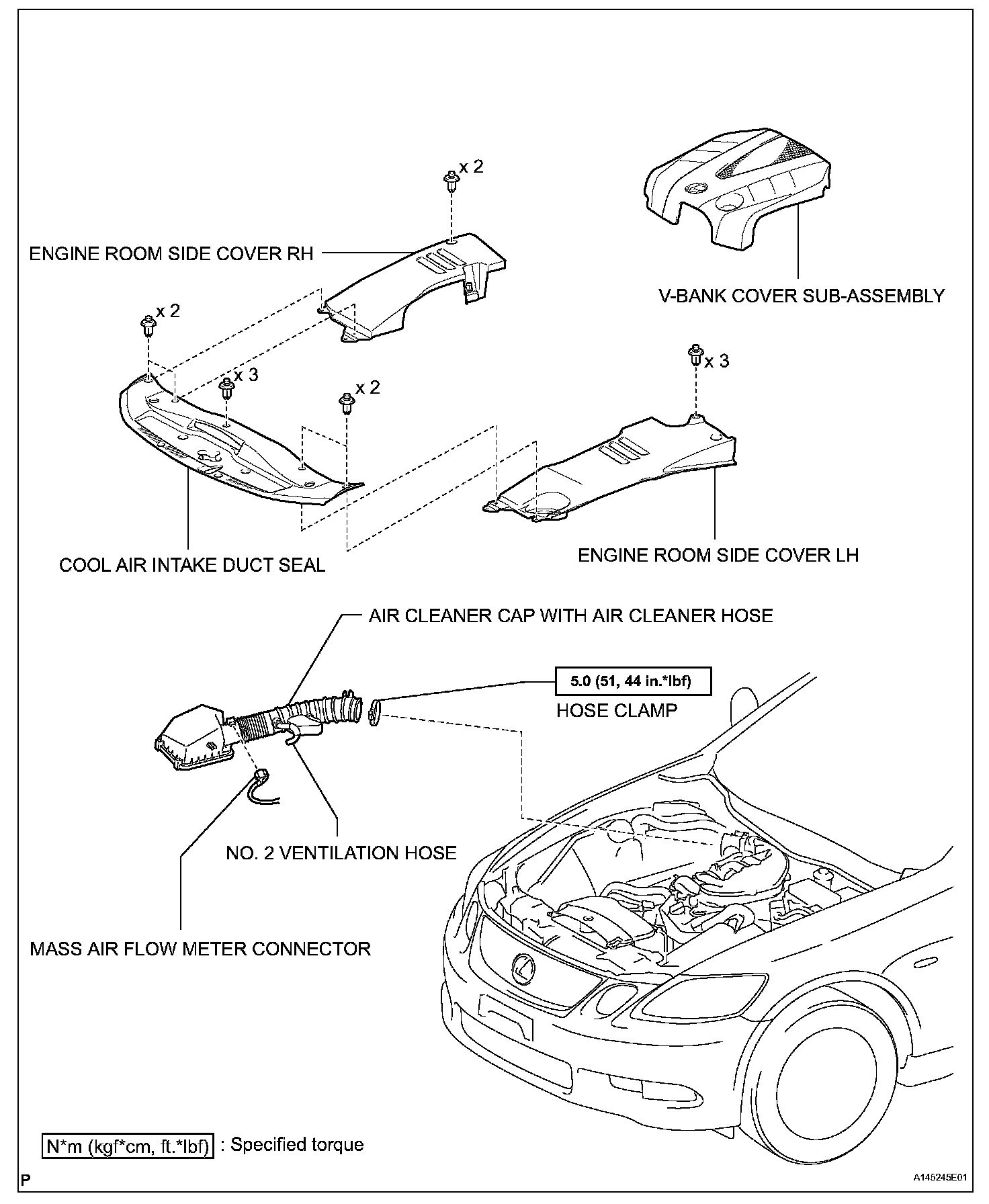

Fuel Injector (For Direct Injection):

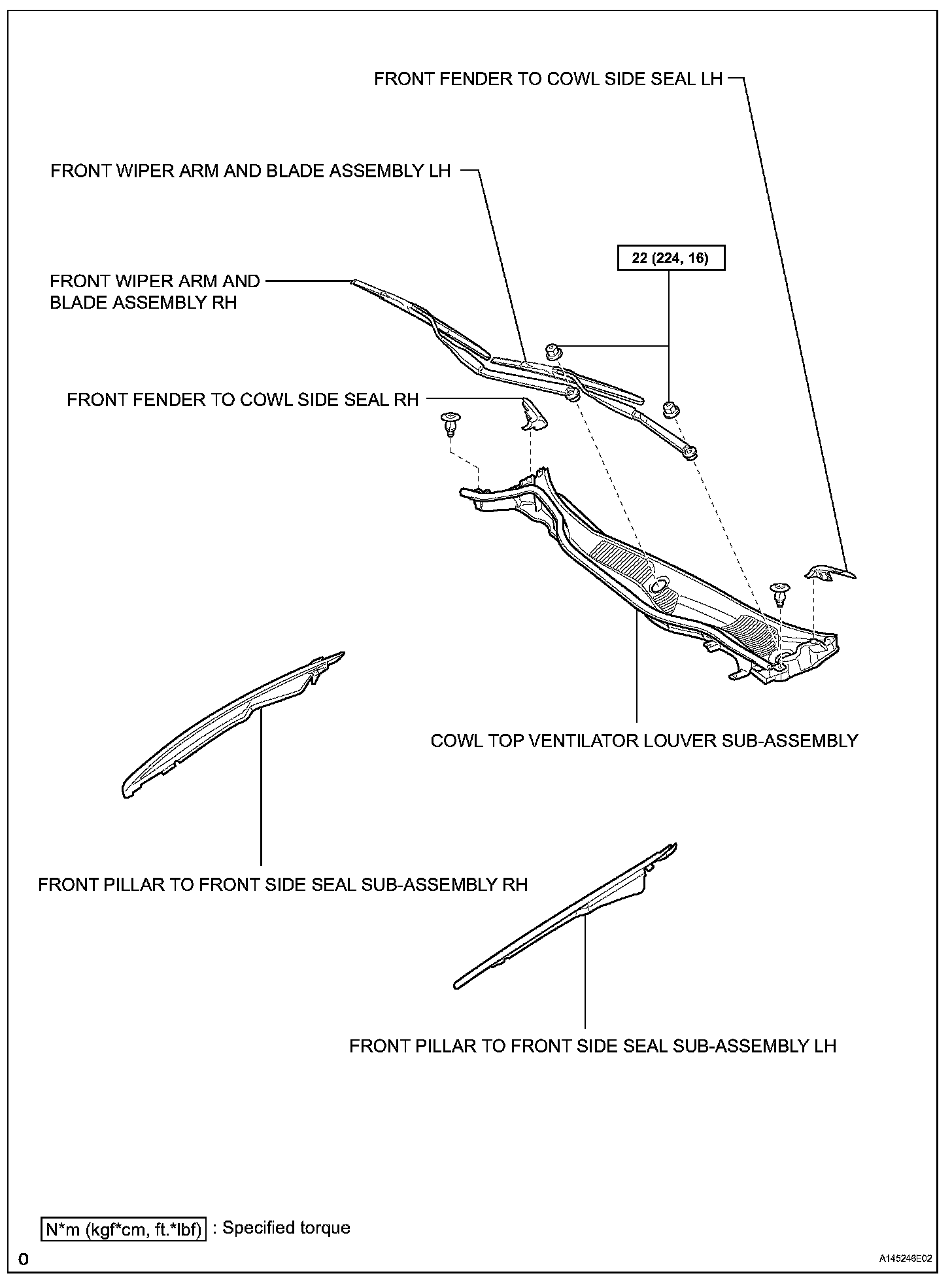

Fuel Injector (For Direct Injection):

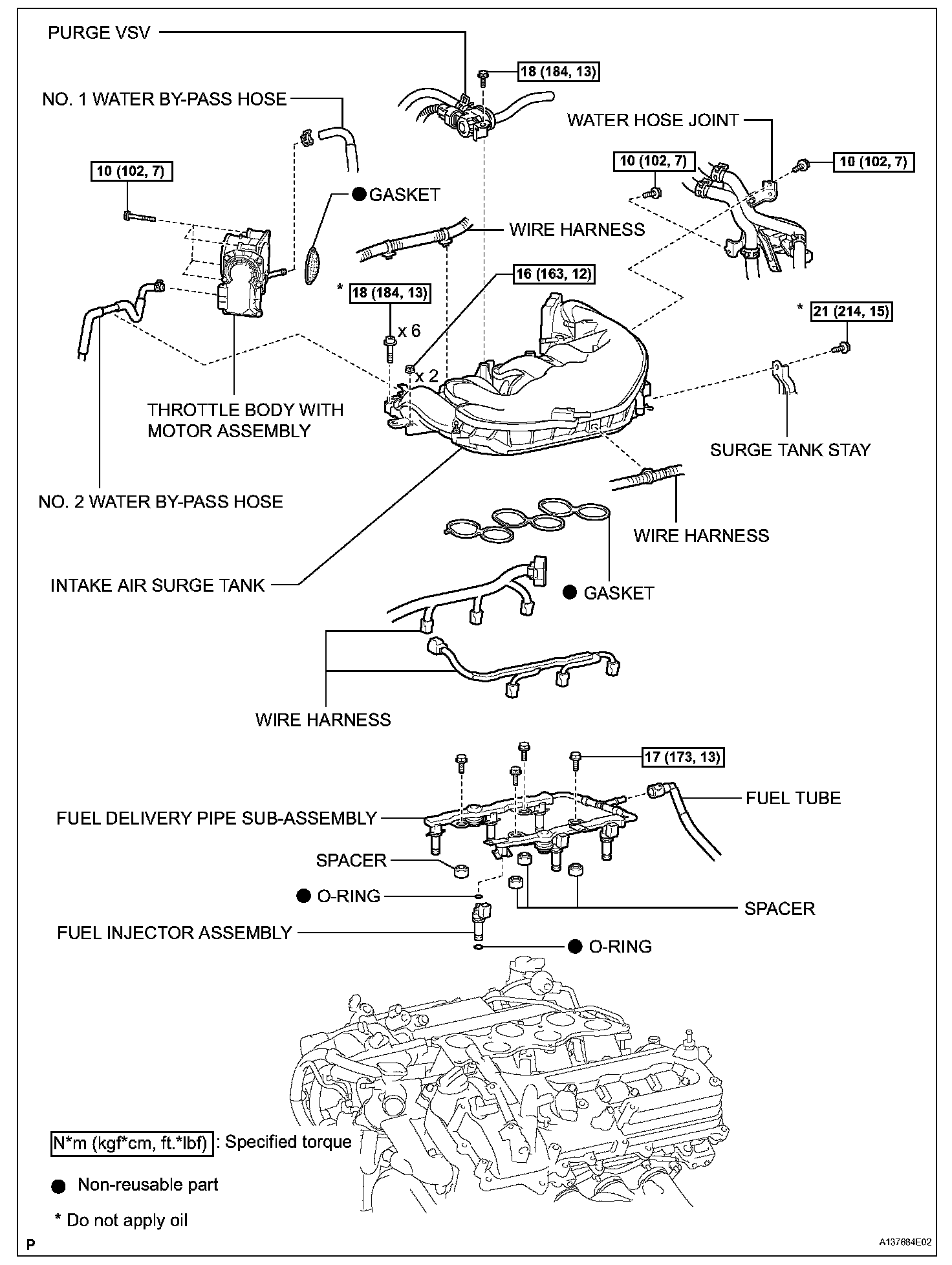

Fuel Injector (For Direct Injection):

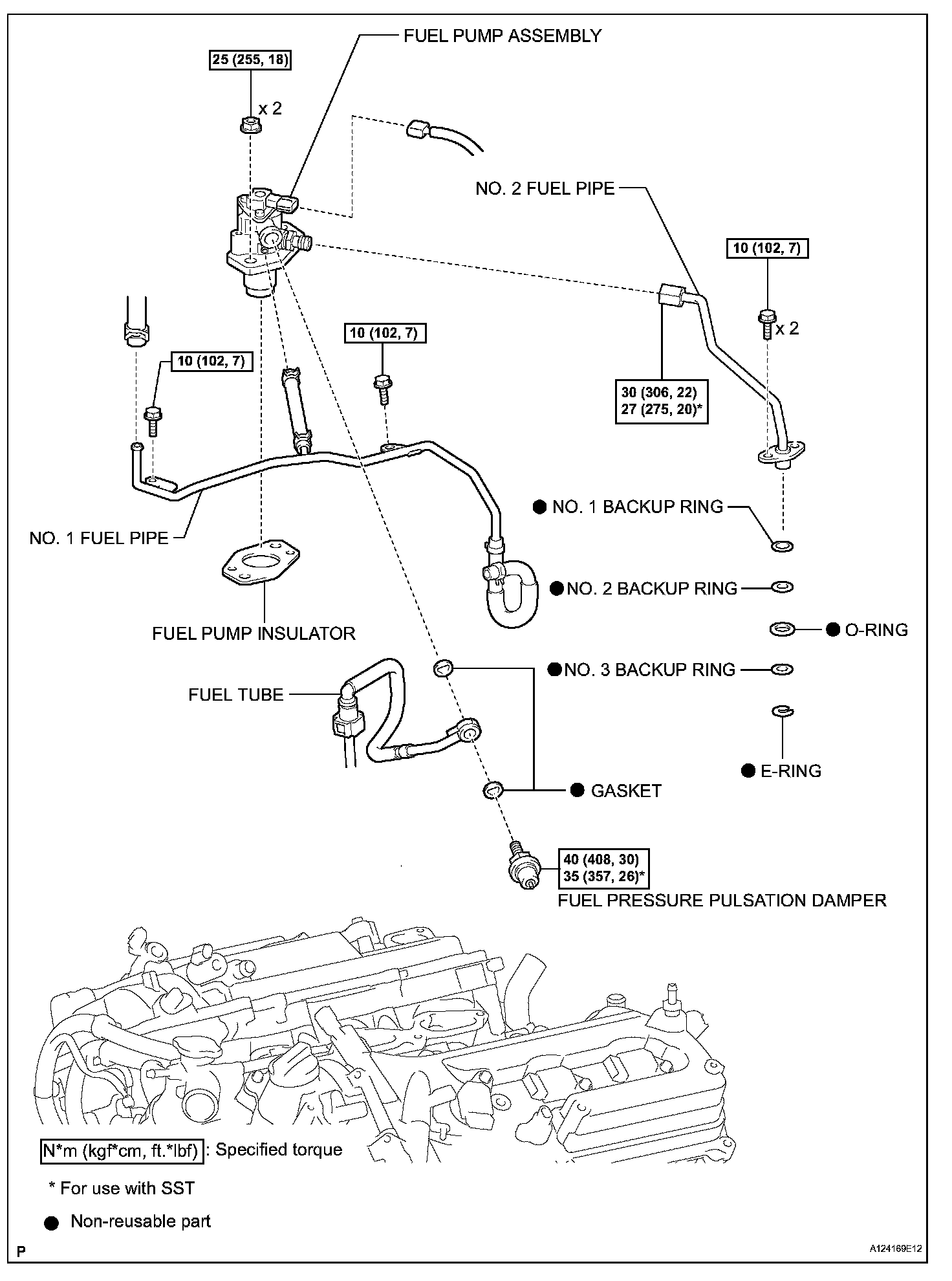

Fuel Injector (For Direct Injection):
