How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING

OPERATION FLOW

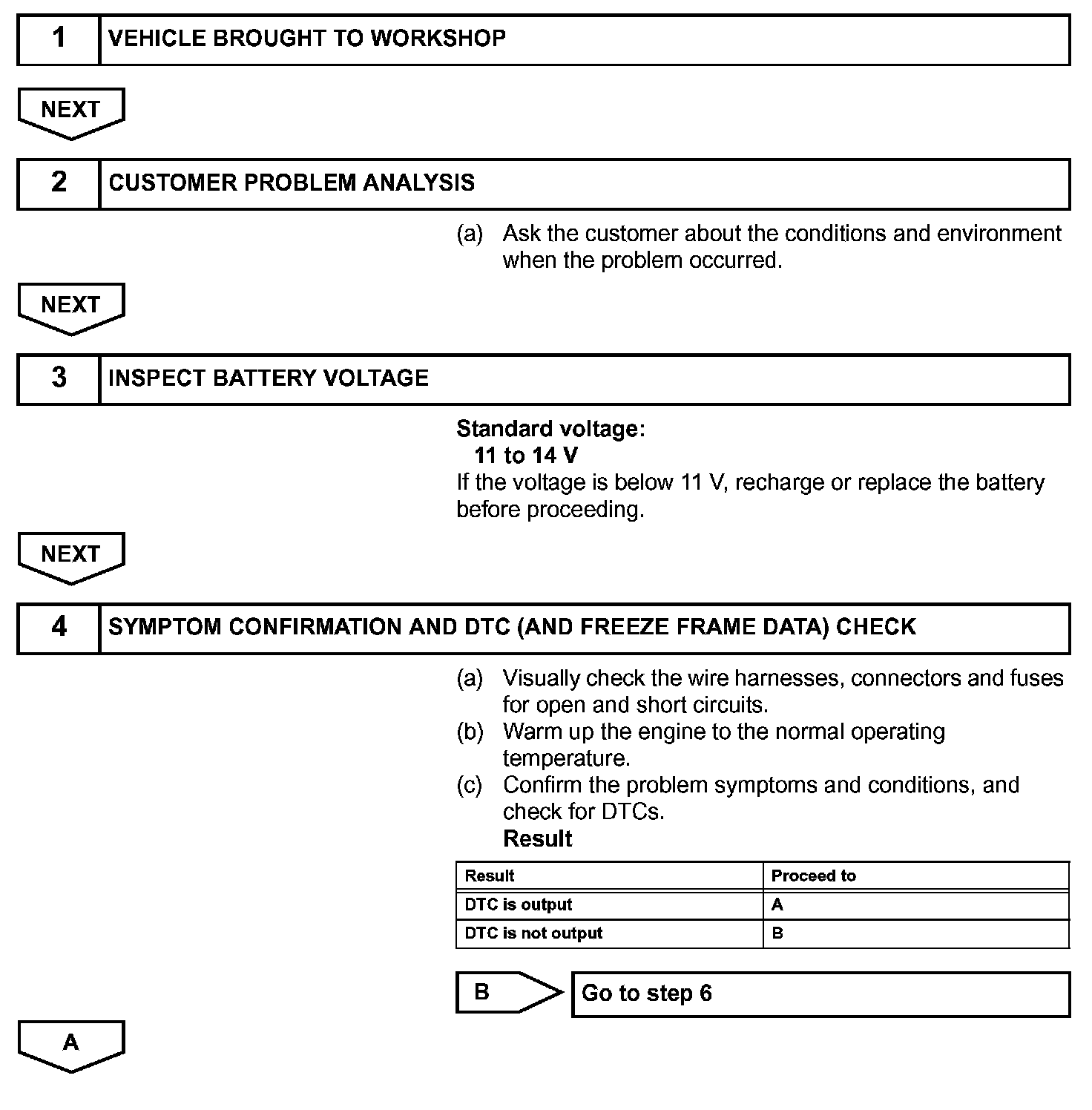

Part 1:

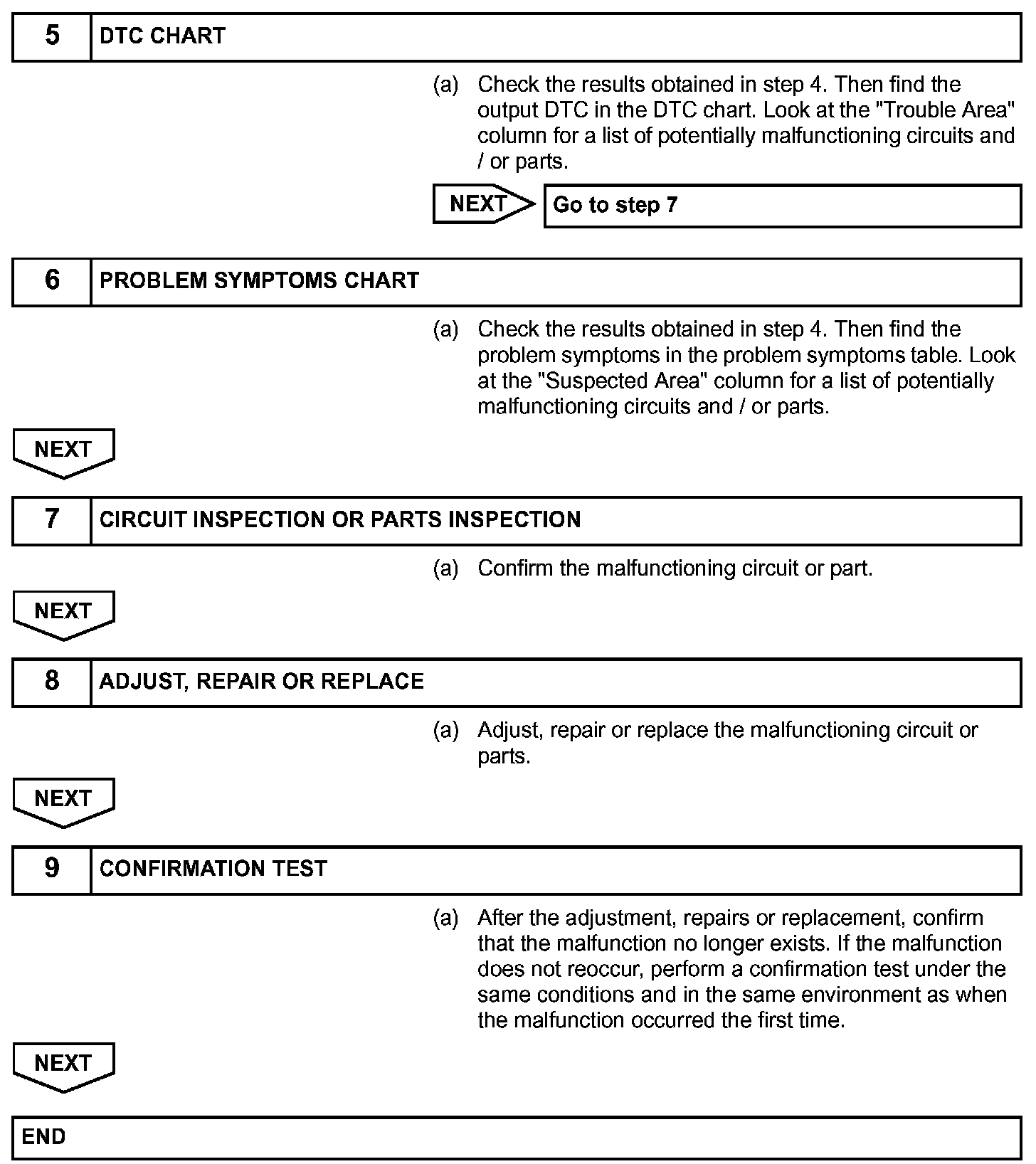

Part 2:






HINT: Perform troubleshooting in accordance with the procedures. The given is an outline of basic troubleshooting procedures. Confirm the troubleshooting procedures for the circuit you are working on before beginning troubleshooting.
