Navigation ECU Power Source Circuit: Wiring Diagram

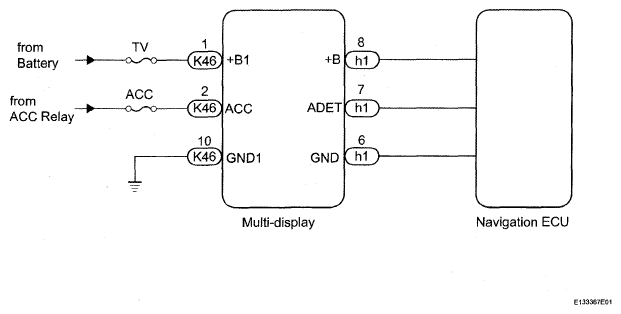

Fig 1: Navigation ECU Power Source Wiring Diagram
G05299896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
