System Diagram

Fig 1: Engine Control System Diagram - 2GR-FSE (1 Of 6)
G05285015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Control System Diagram - 2GR-FSE (2 Of 6)
G05285016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Control System Diagram - 2GR-FSE (3 Of 6)
G05285017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Control System Diagram - 2GR-FSE (4 Of 6)
G05285018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

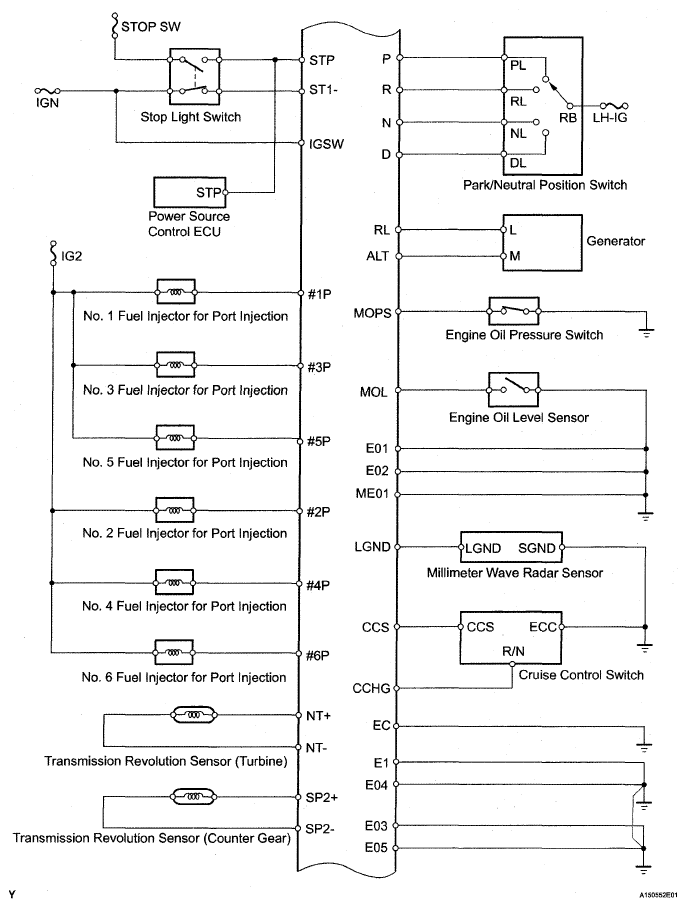

Fig 5: Engine Control System Diagram - 2GR-FSE (5 Of 6)
G05285019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

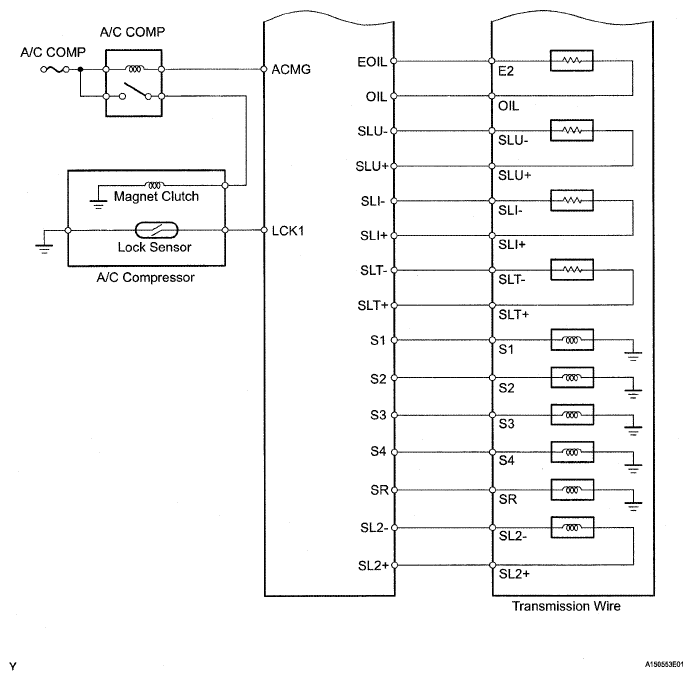

Fig 6: Engine Control System Diagram - 2GR-FSE (6 Of 6)
G05285020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
