Accelerator Pedal: Components

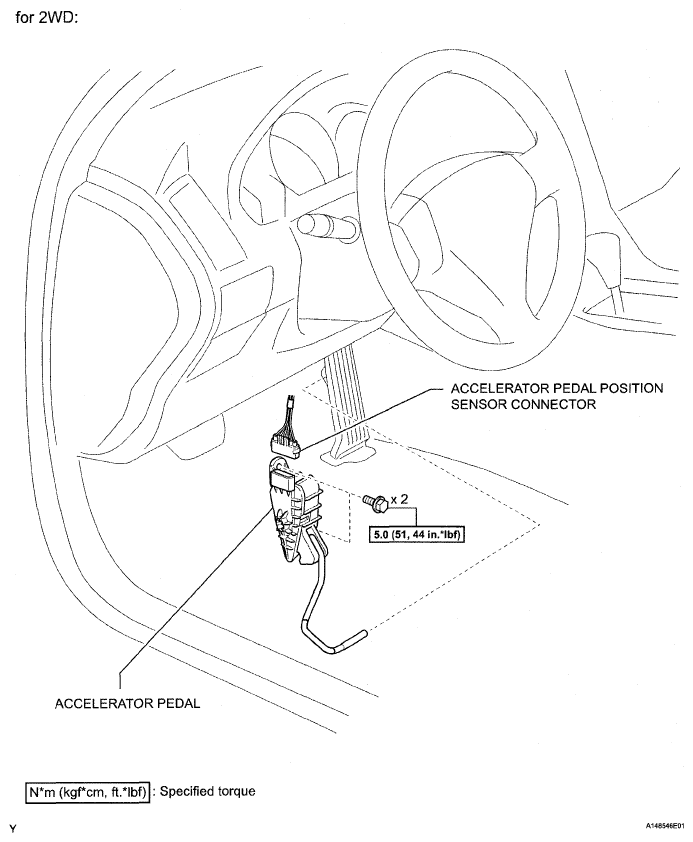

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications (For 2WD)
G05285412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Accelerator Pedal Replacement Components With Torque Specifications (For 4WD)
G05285413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
