Inspection Procedure

  1. CHECK OPERATION OF CRANKING
    1. When starting the engine, check whether the starter motor starts.

    OK: CHECK FOR INTERMITTENT PROBLEMS

    NG: Go to next step

  2. READ VALUE OF INTELLIGENT TESTER (STA SIGNAL)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the engine switch on (IG) and turn the tester ON.
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / STARTER SIG.
    4. Check the result when the engine switch is turned on (IG) and the engine is started.

      Standard

      ENGINE SWITCH POSITION AND STARTER SIGNALS REFERENCE

      STARTER SIG Engine Switch Position
      OFF on (IG)
      ON ENGINE START

    OK: Go to step 6

    NG: Go to next step

  3. INSPECT ECM (STAR AND STSW VOLTAGE)
    1. Measure the voltage according to the value(s) in the table below while cranking the engine.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      E7-4 (STAR) - E7-7 (E1) 11 to 14 V
      A6-19 (STSW) - E7-7 (E1) 11 to 14 V

      Result

      RESULT REFERENCE

      Terminal STAR Terminal STSW Proceed to
      9 to 14 V 9 to 14 V A
      0 V 9 to 14 V B
      0 V 0 V C
    Fig 1: Identifying ECM Connector Terminals
    G05285310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: REPLACE ECM

    C: Go to step 10

    A: Go to next step

  4. INSPECT ST CUT RELAY
    1. Remove the ST CUT relay from the engine room No. 2 relay block.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
    Fig 2: Identifying ST CUT Relay Connector Terminals
    G04942983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE ST CUT RELAY

    OK: Go to next step

  5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Disconnect the E77 park/neutral position (PNP) switch.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Shift Position Specified Condition
      4 - 5 P Below 1 Ω
      4 - 5 N Below 1 Ω
    Fig 3: Identifying Park/Neutral Position Switch Connector Terminals
    G05285312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

    OK: CHECK AND REPAIR HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ECM, ECM - ST CUT RELAY, ST)

  6. INSPECT STARTER RELAY
    1. Remove the starter relay from the engine room No. 1 relay block.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage applied to terminals 1 and 2)
    Fig 4: Identifying Starter Relay Connector Terminals
    G04942976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE STARTER RELAY

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - STARTER RELAY)
    1. Check the harness and the connectors between the park/neutral position switch and the starter relay.
      1. Disconnect the E77 PNP switch connector.
      2. Remove the starter relay from the engine room No. 1 relay block.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      Park/Neutral position switch (E77-5) - Starter relay (1) Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      Park/Neutral position switch (E77-5) or Starter relay (1) - Body ground 10 kΩ or higher
    2. Check the harness and the connector between the starter relay and the body ground.
      1. Remove the starter relay from the engine room No. 1 relay block.
      2. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      Starter relay (2) - Body ground Below 1 Ω
    Fig 5: Identifying Starter Relay And Park/Neutral Position Switch Connector Terminals
    G05285314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  8. INSPECT ENGINE ROOM RELAY BLOCK (STARTER RELAY VOLTAGE)
    1. Remove the starter relay from the engine room No. 1 relay block.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      Starter relay (5) - Body ground 9 to 14 V
    Fig 6: Identifying Starter Relay Connector Terminals
    G05285315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. INSPECT STARTER ASSEMBLY

    NG: REPAIR OR REPLACE STARTER ASSEMBLY

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER RELAY - STARTER, STARTER - BATTERY)

  10. CHECK HARNESS AND CONNECTOR (POWER SOURCE CONTROL ECU - ECM)
    1. Check the harness and the connectors between the power source control ECU and ECM.
      1. Disconnect the power source control ECU connector.
      2. Disconnect the A6 ECM connector.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      K73-39 (STSW) - A6-19 (STSW) Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      K73-39 (STSW) or A6-19 (STSW) - Body ground 10 kΩ or higher

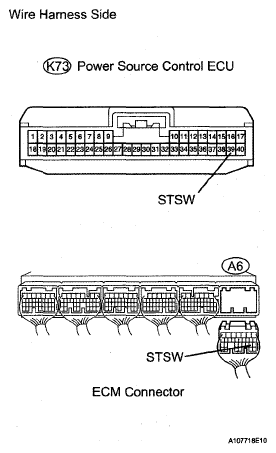

    Fig 7: Disconnecting A6 ECM Connector
    G05285316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO PUSH BUTTON START SYSTEM
