Monitor Result

Refer to CHECKING MONITOR STATUS .

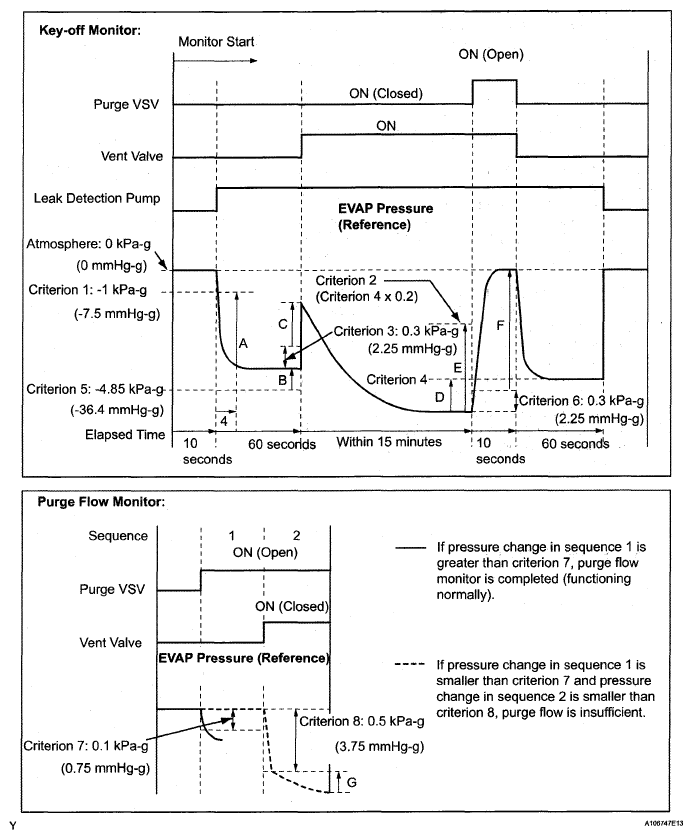

Fig 1: EVAP Pressure Graph (Key-Off Monitor)
G05285283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
