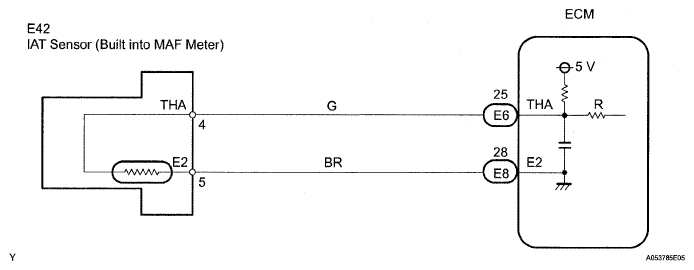

DTC P0110 Intake Air Temperature Circuit; DTC P0112 Intake Air Temperature Circuit Low Input; DTC P0113 Intake Air Temperature Circuit High Input: Wiring Diagram
WARNING: This page is about a different car, the 2007 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.
