Confirmation Driving Pattern

WARNING: This page is about a different car, the 2007 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.

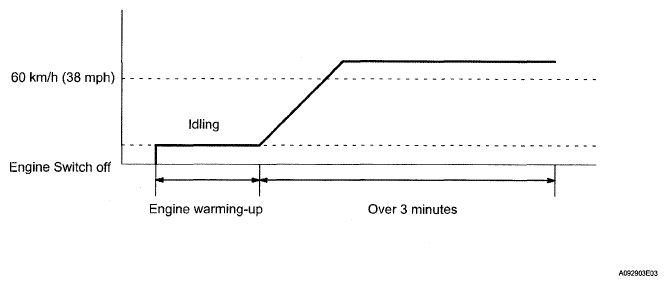

Fig 1: Engine Idling - Driving Pattern Graph
G05285539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
  2. Allow the engine to idle until ECT reaches 40°C (104°F).
  3. Allow the vehicle to run at 60 km/h (38 mph) or more for 3 minutes or more.
