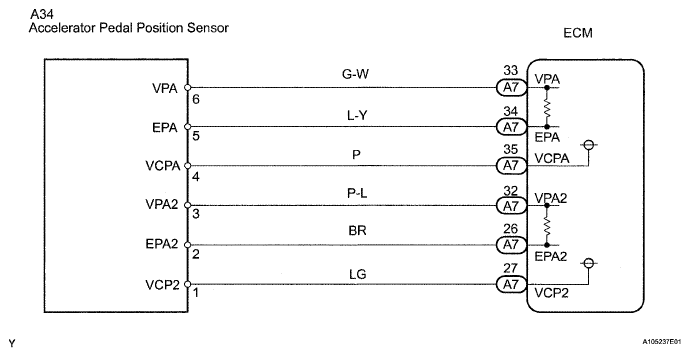

DTC P2121 Throttle / Pedal Position Sensor / Switch "D" Circuit Range / Performance: Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.
