OEM System Circuits: Taillight: Notes

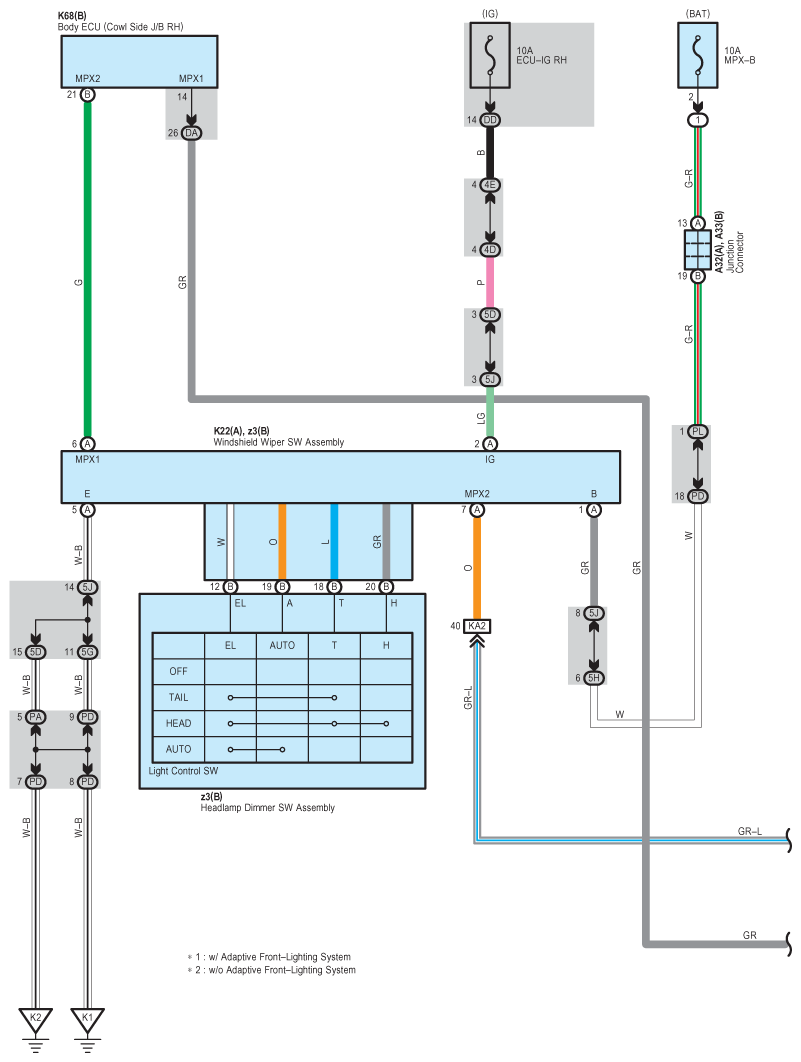

Fig 1: Taillight System Wiring Diagram (1 Of 7)

G08915662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

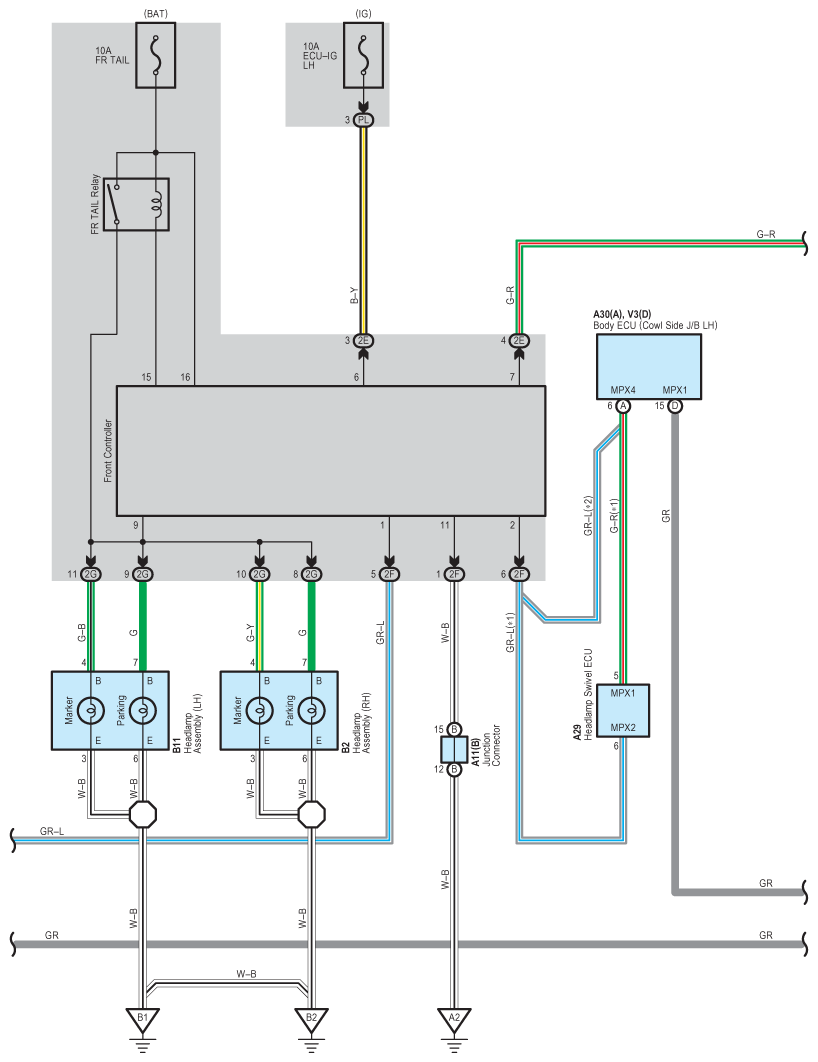

Fig 2: Taillight System Wiring Diagram (2 Of 7)

G08915663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

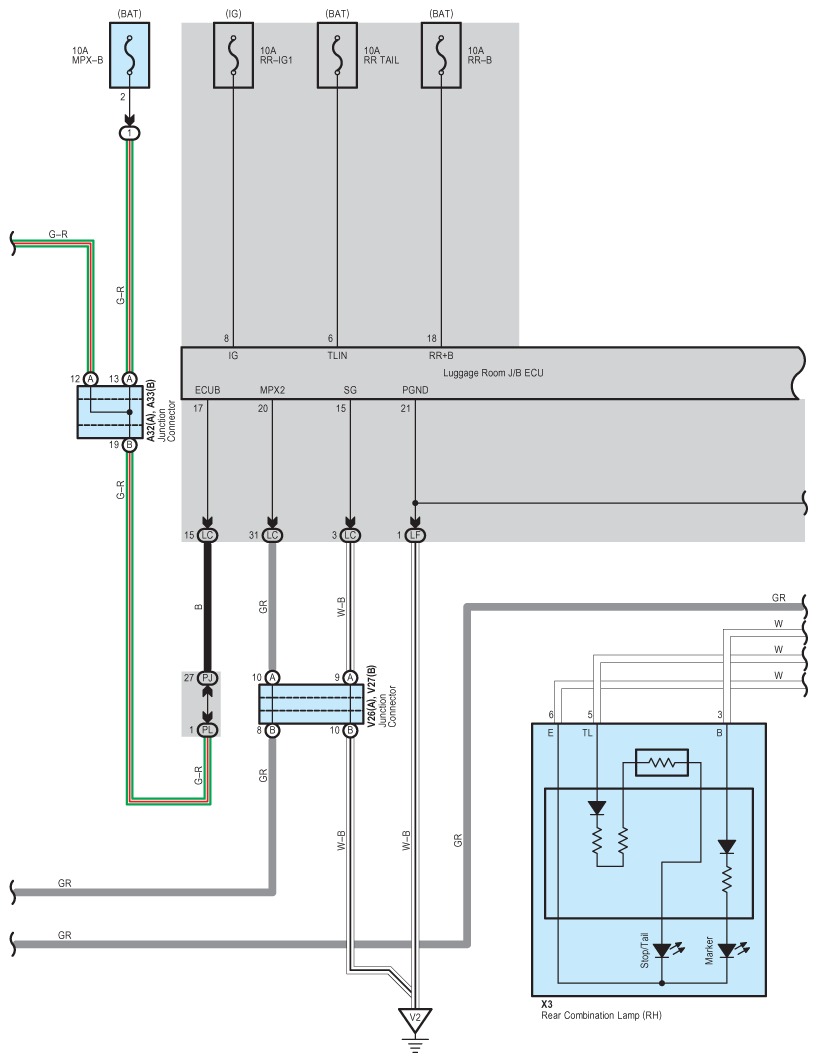

Fig 3: Taillight System Wiring Diagram (3 Of 7)

G08915664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

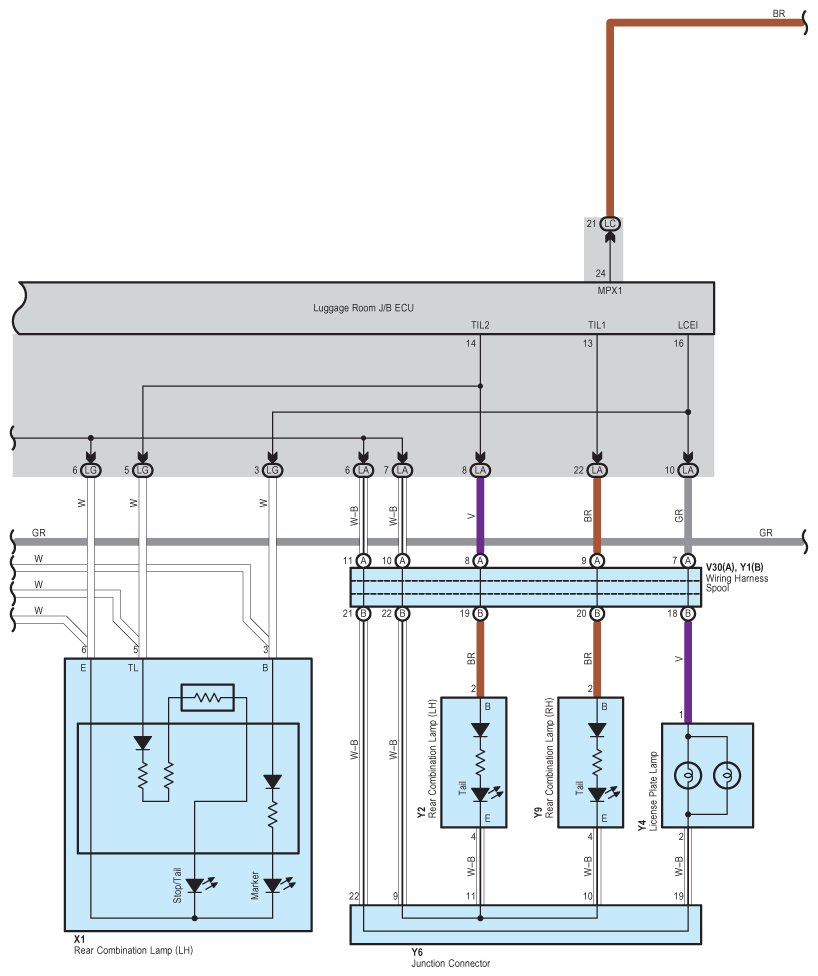

Fig 4: Taillight System Wiring Diagram (4 Of 7)

G08915665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

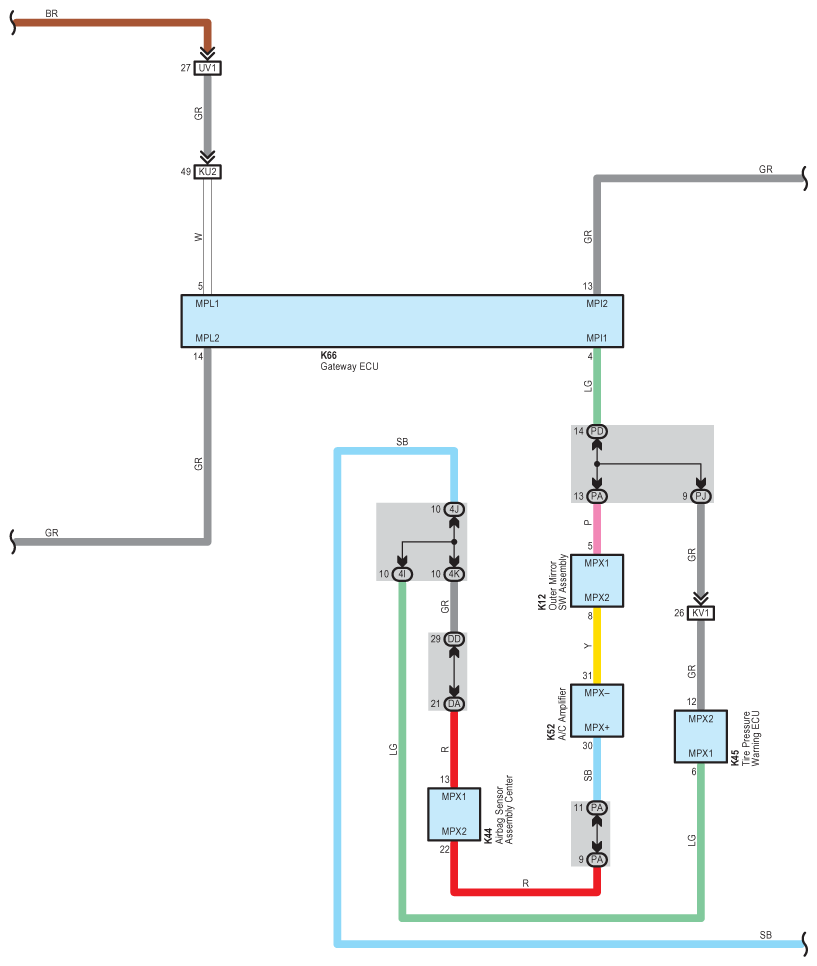

Fig 5: Taillight System Wiring Diagram (5 Of 7)

G08915666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

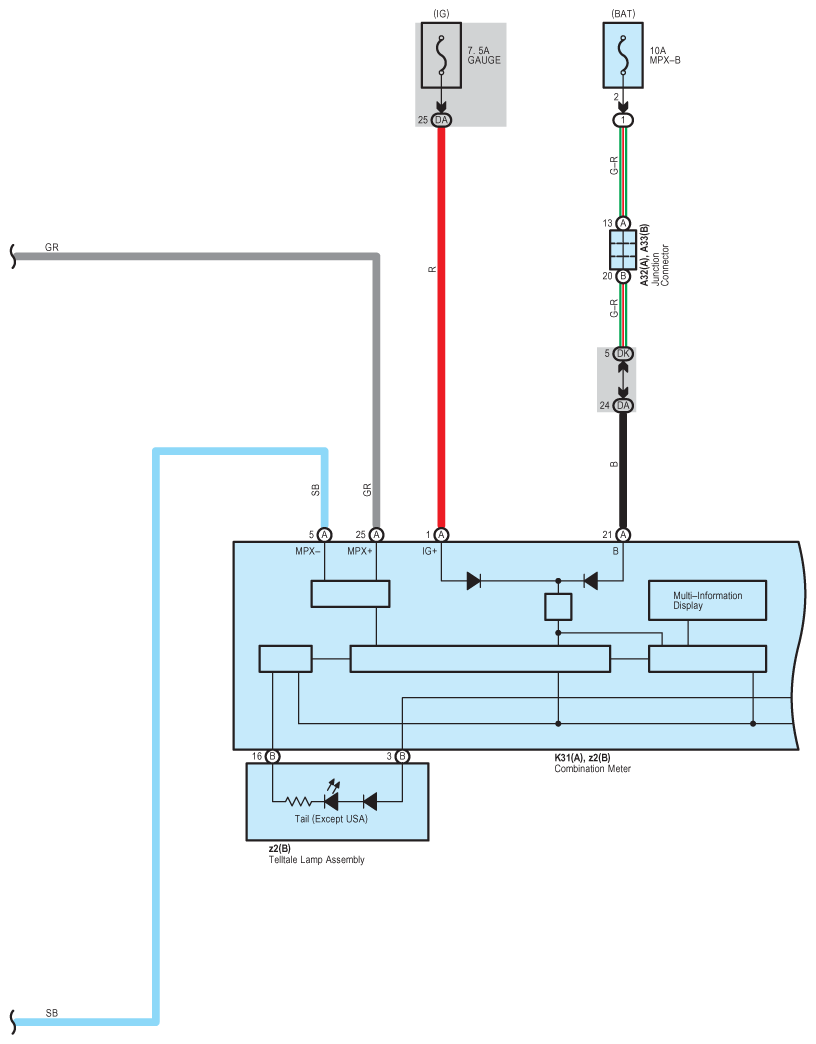

Fig 6: Taillight System Wiring Diagram (6 Of 7)

G08915667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

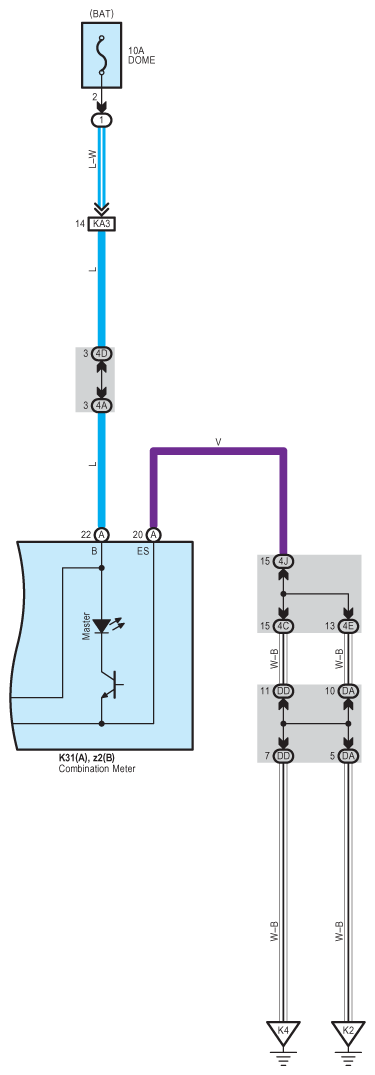

Fig 7: Taillight System Wiring Diagram (7 Of 7)

G08915668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
