VC Output Circuit: Wiring Diagram

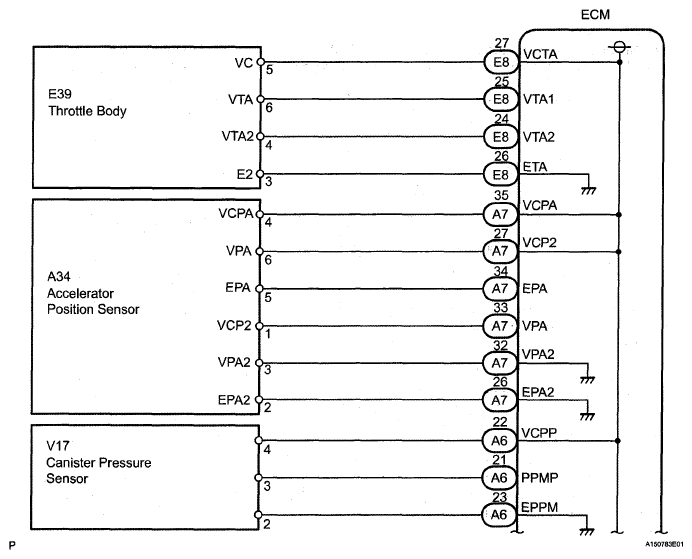

Fig 1: VC Output Circuit - Wiring Diagram (1 Of 2)
G05285295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

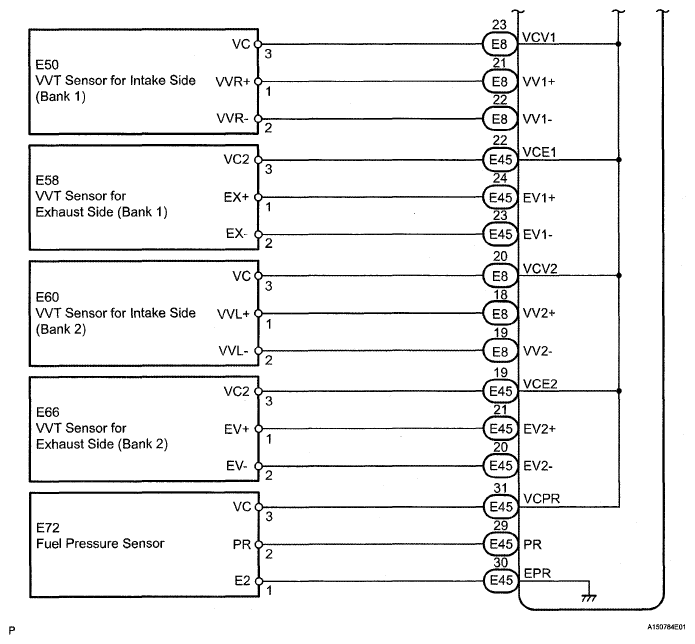

Fig 2: VC Output Circuit - Wiring Diagram (2 Of 2)
G05285296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
