Adaptive Variable Suspension System

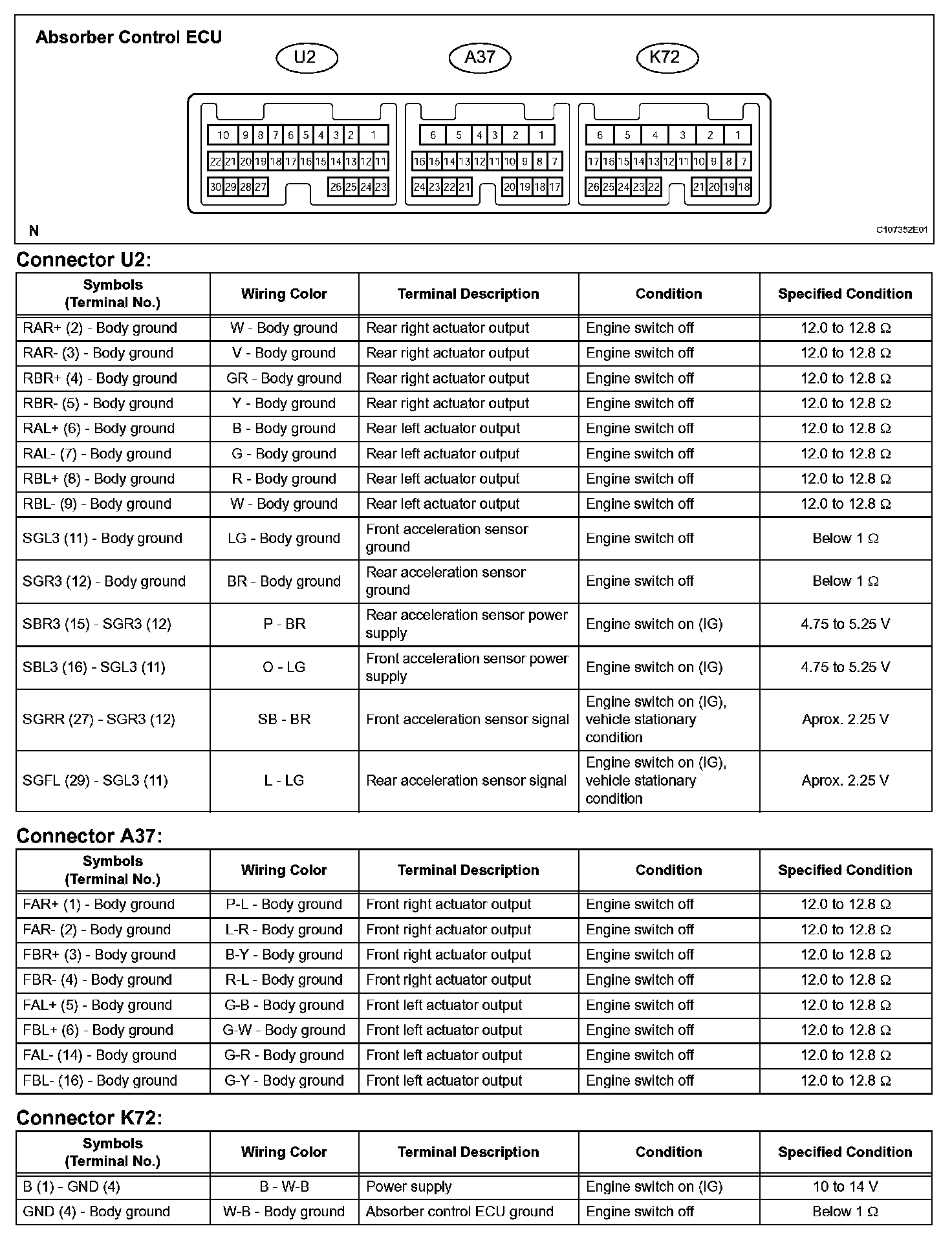

Terminals Of Control Module/Pinouts (Part 1):

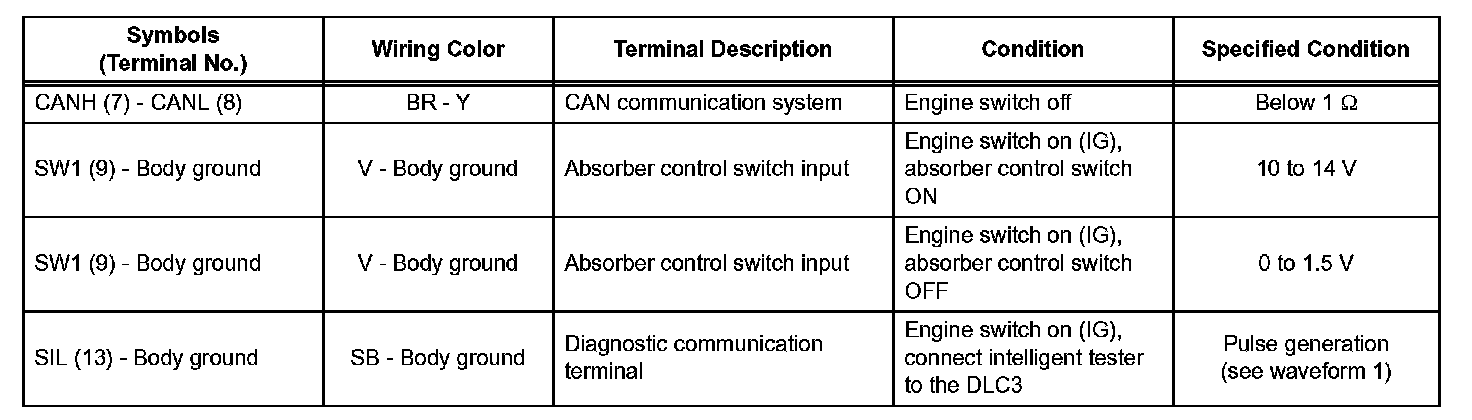

Terminals Of Control Module/Pinouts (Part 2):

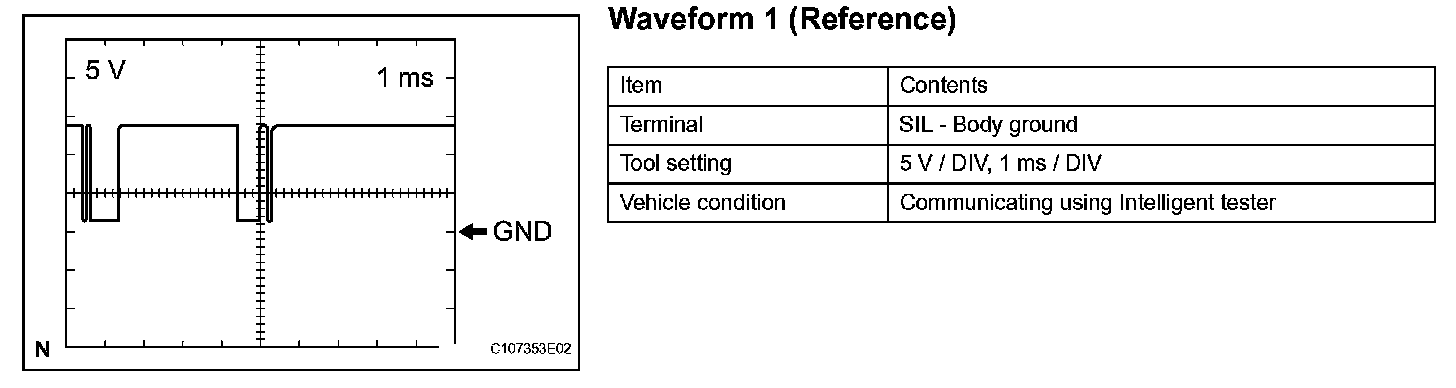

Oscilloscope Waveform:
