Distance Control ECU Communication Stop Mode

Distance Control ECU Communication Stop Mode




DESCRIPTION

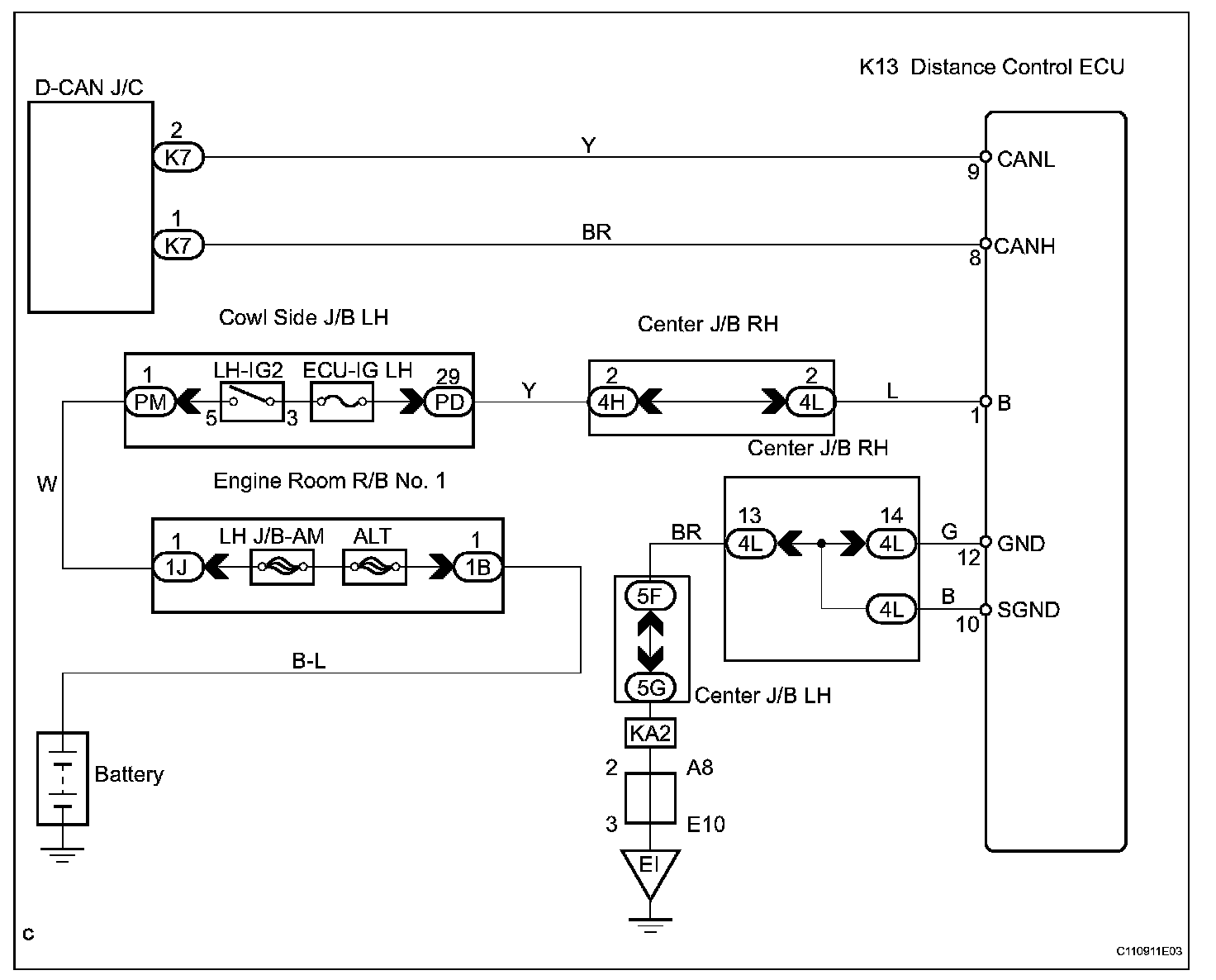

Wiring Diagram:






Step 1:




Step 1 (Continued)-2:

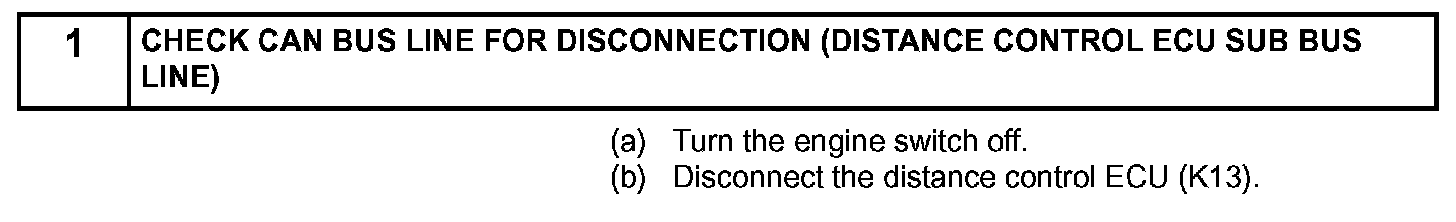

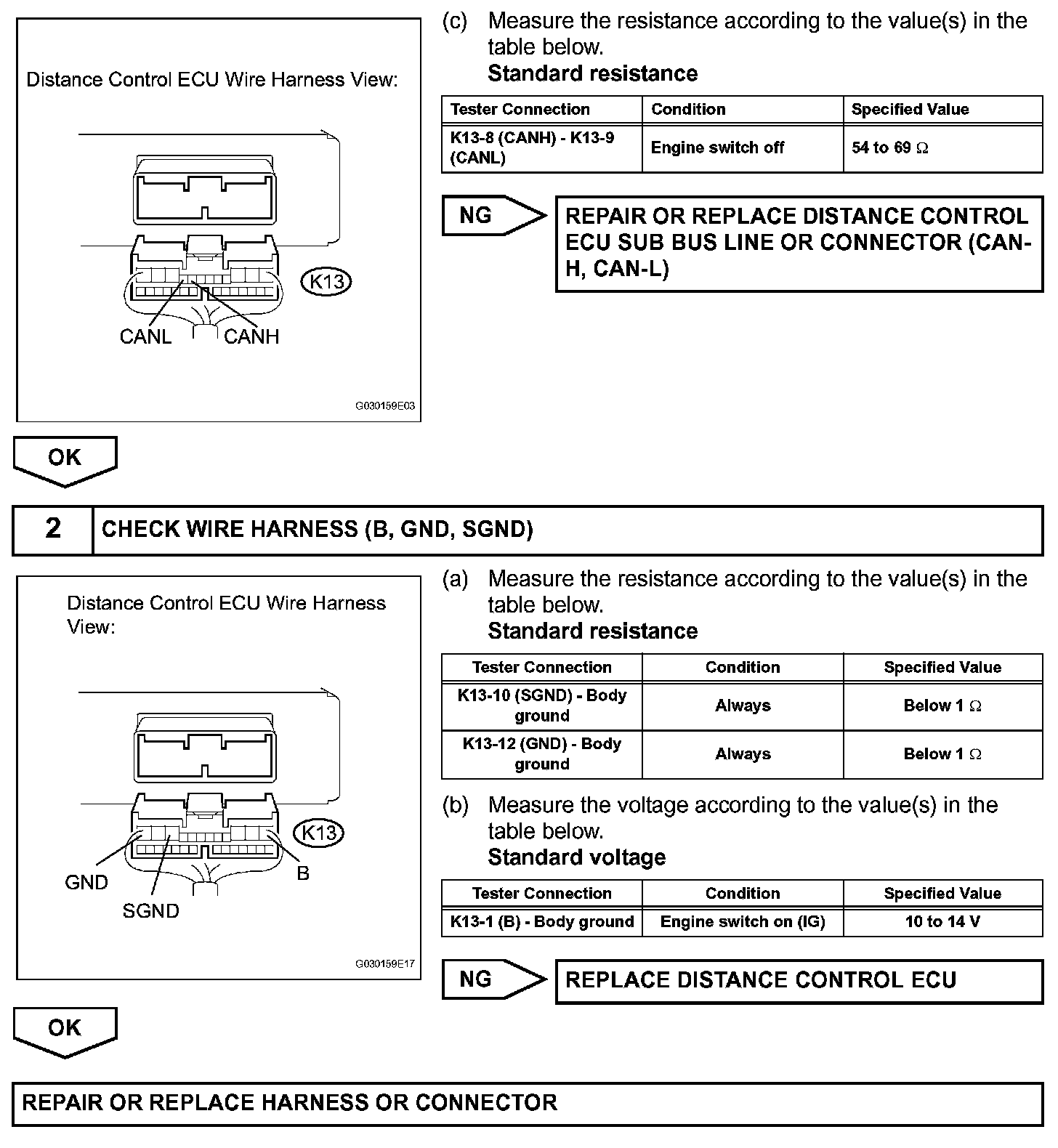

INSPECTION PROCEDURE
