Inspection Procedure

1. Disconnect the U46 ECU connector.
2. Disconnect the W8 map light connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   U46 - 5 (SIG1) - W8-3 (SIG1)	Below 1 Ω
   U46 - 12 (SIG-) - W8-7 (SIG-)	Below 1 Ω

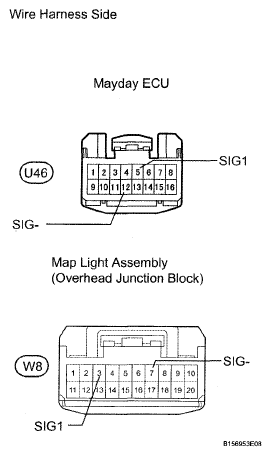

Fig 1: Identifying U46 ECU Connector And W8 MAP Light Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR THEN CLEAR HISTORIC DTC

OK: Go to next step

1. Remove the map light.
2. Remove the Mayday switch from the map light.
3. Measure the resistance of the switch when each switch is pressed.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Switch Condition	Specified Condition
   3 (SIG1) - 8 (SIG-)	EMERGENCY button is pressed	305 to 313 Ω
   3 (SIG1) - 8 (SIG-)	VOL+ button is pressed	812 to 831 Ω
   3 (SIG1) - 8 (SIG-)	VOL- button is pressed	1811 to 1848 Ω

Fig 2: Inspecting Mayday Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAYDAY SWITCH ASSEMBLY THEN CLEAR HISTORIC DTC

OK: Go to next step

1. Install the Mayday switch to the map light.
2. Measure the resistance of the switch when each switch is pressed.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Switch Condition	Specified Condition
   3 (SIG1) - 7 (SIG-)	EMERGENCY button is pressed	305 to 313 Ω
   3 (SIG1) - 7 (SIG-)	VOL+ button is pressed	812 to 831 Ω
   3 (SIG1) - 7 (SIG-)	VOL- button is pressed	1811 to 1848 Ω

Fig 3: Inspecting MAP Light Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAP LIGHT ASSEMBLY THEN CLEAR HISTORIC DTC

OK: REPLACE MAYDAY ECU TOGETHER WITH MAYDAY BATTERY AND THEN PERFORM REGISTRATION
