Terminals Of Ecu

  1. CHECK ECM

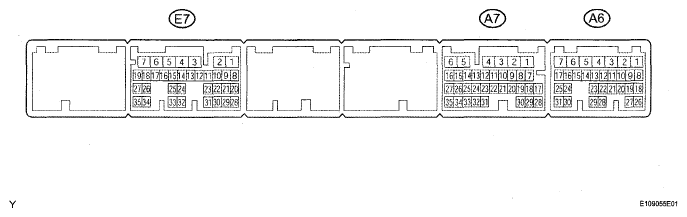

    Fig 1: Identifying Terminals Of ECU
    G05298627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL DESCRIPTION SPECIFIED CONDITION CHART

    Symbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition
    A7-3 (TC) - E7-7 (E1) V - BR Ground Engine switch on (IG) 10 to 14 V
    A7-3 (TC) - E7-7 (E1) V - BR Ground Connect terminals TC and CG of DLC3 Below 1 V
    A7-4 (STP) - E7-7 (E1) R-B - BR Stop light signal Engine switch on (IG), Depress brake pedal 10 to 14 V
    A7-4 (STP) - E7-7 (E1) R-B - BR Stop light signal Engine switch on (IG), Release brake pedal Below 1 V
    A7-31 (CCS) - E7-7 (E1) L-B - BR Cruise control main switch circuit Engine switch on (IG) 10 to 14 V
    A7-31 (CCS) - E7-7 (E1) L-B - BR Cruise control main switch circuit CANCEL switch ON 6.6 to 10.1 V
    A7-31 (CCS) - E1 (E22-7) L-B - BR Cruise control main switch circuit SET/COAST switch ON 4.5 to 7.1 V
    A7-31 (CCS) - E7-7 (E1) L-B - BR Cruise control main switch circuit RES/ACC switch ON 2.3 to 4.0 V
    A7-31 (CCS) - E7-7 (E1) L-B - BR Cruise control main switch circuit MAIN switch ON Below 1 V
    A6-8 (ST1) - E7-7 (E1) G-W - BR Stop light signal Engine switch on (IG), Depress brake pedal Below 1 V
    A6-8 (ST1) - E7-7 (E1) G-W - BR Stop light signal Release brake pedal 10 to 14 V
