Inspection Procedure

NOTE: When the distance control ECU is replaced with a new one, initialization must be performed (see INSTALLATION ).

INSPECT STEERING PAD SWITCH CABLE

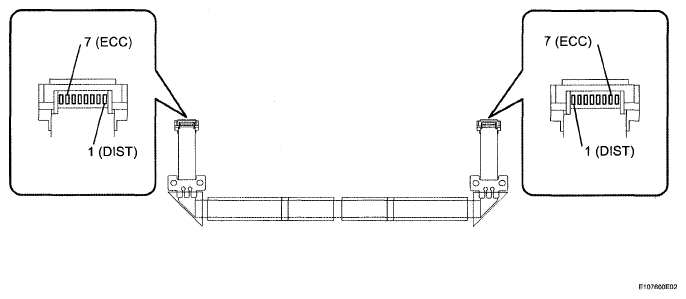

Fig 1: Inspecting Steering Pad Switch Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the steering pad switch cable.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
1 (DIST) - 1 (DIST)	Below 1 Ω
7 (ECC) - 7 (ECC)	Below 1 Ω

NG: REPLACE STEERING PAD SWITCH CABLE

OK: Go to next step

INSPECT STEERING PAD SWITCH RH

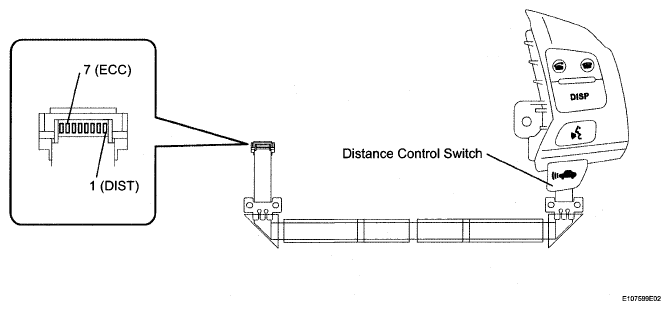

Fig 2: Inspecting Steering Pad Switch RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the steering pad switch cable to the steering pad switch RH.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
1 (DIST) - 7 (ECC)	Distance control switch ON	Below 2.5 Ω
1 (DIST) - 7 (ECC)	Distance control switch OFF	10 kΩ or higher

NG: REPAIR OR REPLACE STEERING PAD SWITCH RH

OK: Go to next step

INSPECT STEERING PAD SWITCH LH

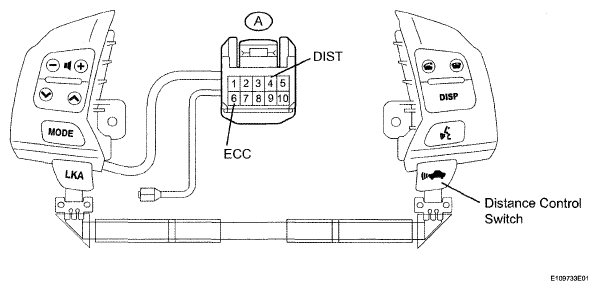

Fig 3: Inspecting Steering Pad Switch LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the steering pad switch RH and the steering pad switch cable to the steering pad switch LH.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
A-4 (DIST) - A-6 (ECC)	Distance control switch ON	Below 2.5 Ω
A-4 (DIST) - A-6 (ECC)	Distance control switch OFF	10 kΩ or higher

NG: REPAIR OR REPLACE STEERING PAD SWITCH LH

OK: Go to next step

INSPECT SPIRAL CABLE

Disconnect the spiral cable connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
A-4 - K20-11	Below 1 Ω
A-6 - K20-2	Below 1 Ω

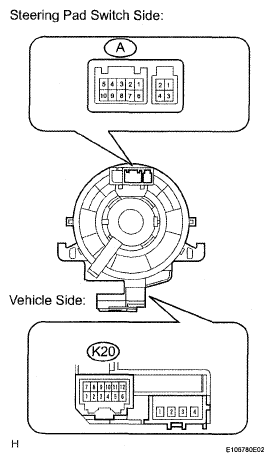

Fig 4: Inspecting Spiral Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SPIRAL CABLE

OK: Go to next step

CHECK WIRE HARNESS (DISTANCE CONTROL ECU - SPIRAL CABLE)

Disconnect the distance control ECU connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
K20-11 (DIST) - K13-16 (MODE)	Below 1 Ω
K13-16 (MODE) - Body ground	10 kΩ or higher

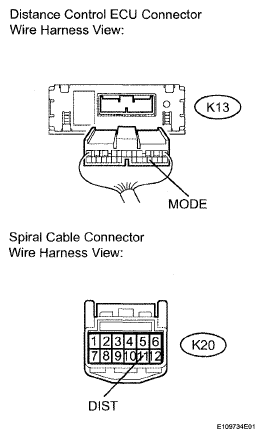

Fig 5: Checking Wire Harness (Distance Control ECU - Spiral Cable)

NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

OK: Go to next step

CHECK WIRE HARNESS (SPIRAL CABLE - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
K20-2 (ECC) - Body ground	Below 1 Ω

Fig 6: Identifying K20 Connector Terminals

NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

OK: Go to next step

INSPECT DISTANCE CONTROL ECU

Remove the distance control ECU (cruise control ECU) with the connector.
Turn the engine switch on (IG).

Measure the voltage according to the value(s) in the table below.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
K13-16 (MODE) - K13-12 (GND)	Distance control switch ON	0 to 2 V
K13-16 (MODE) - K13-12 (GND)	Distance control switch OFF	9 to 16 V

Fig 7: Inspecting Distance Control ECU

NG: REPLACE DISTANCE CONTROL ECU

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
