High Intensity Discharge Headlight Bulb: Components

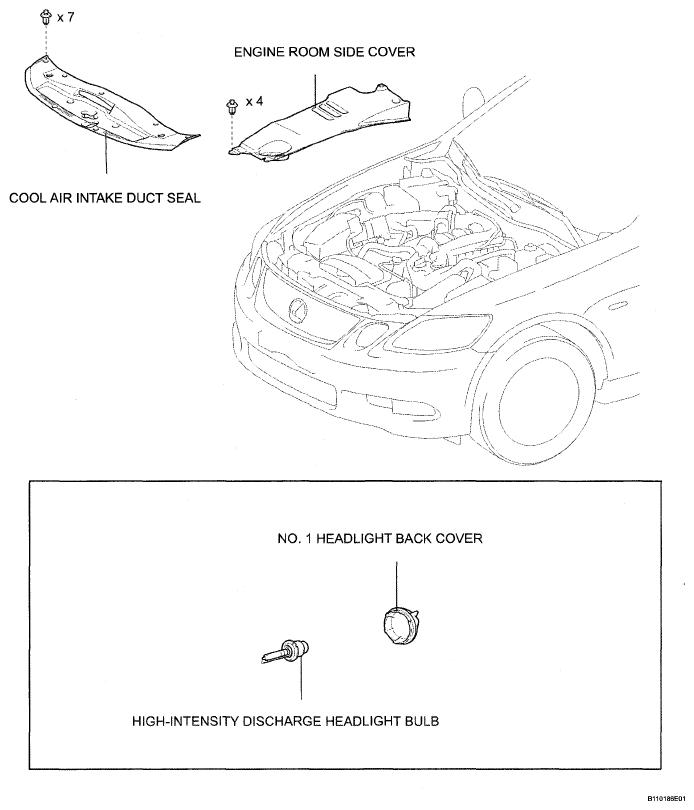

Fig 1: Identifying High Intensity Discharge Headlight Bulb Components
G05298953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
