System Diagram

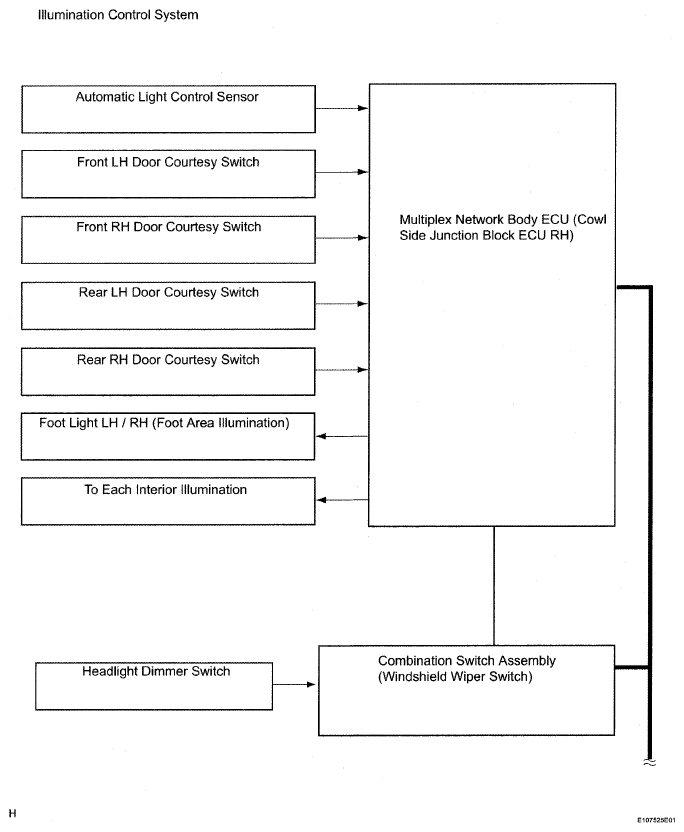

Fig 1: Lighting System Diagram - Illumination Control System (1 Of 4)
G05298750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

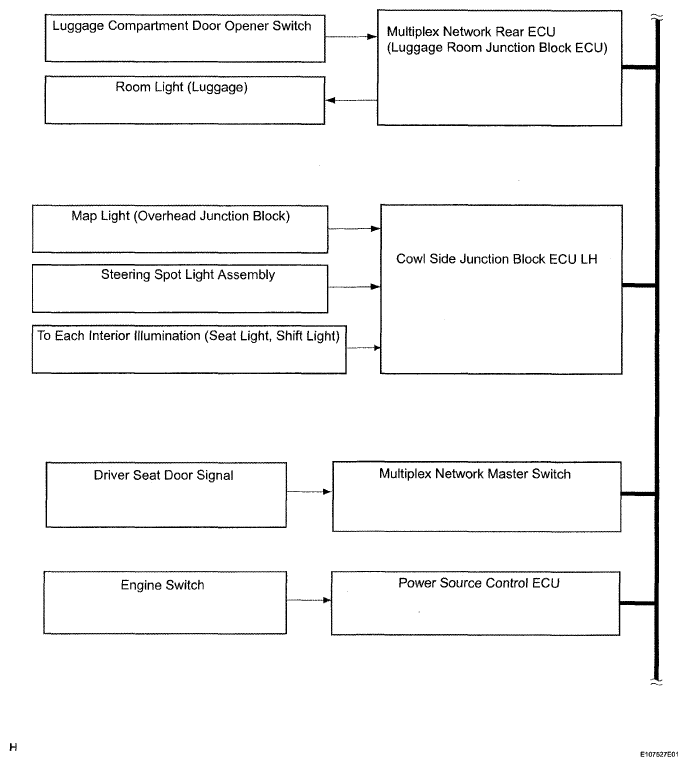

Fig 2: Lighting System Diagram - Illumination Control System (2 Of 4)
G05298751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

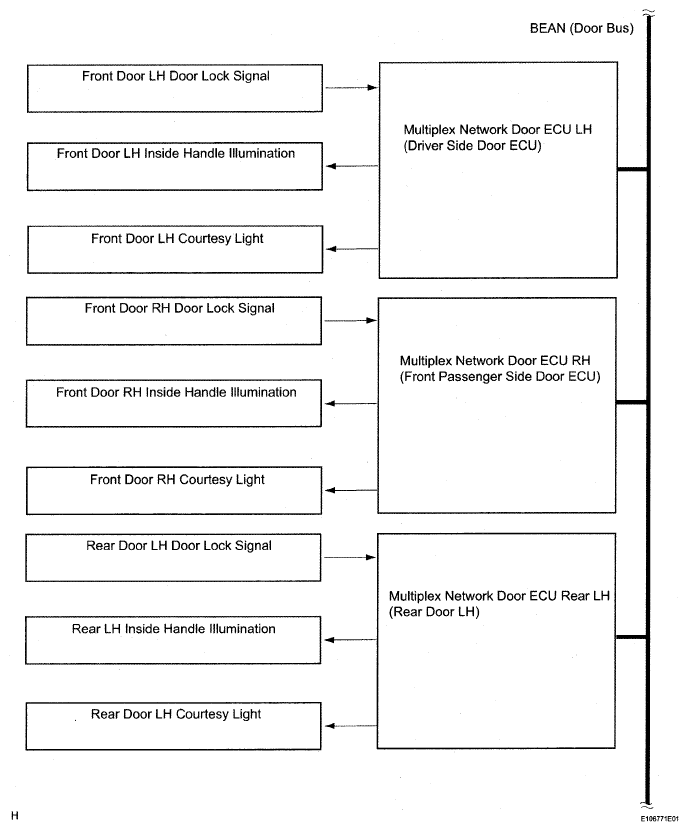

Fig 3: Lighting System Diagram - Illumination Control System (3 Of 4)
G05298752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

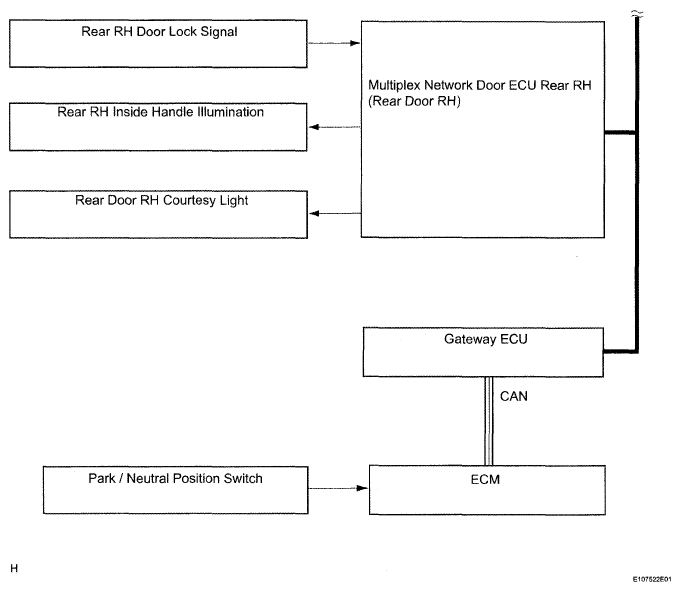

Fig 4: Lighting System Diagram - Illumination Control System (4 Of 4)
G05298753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

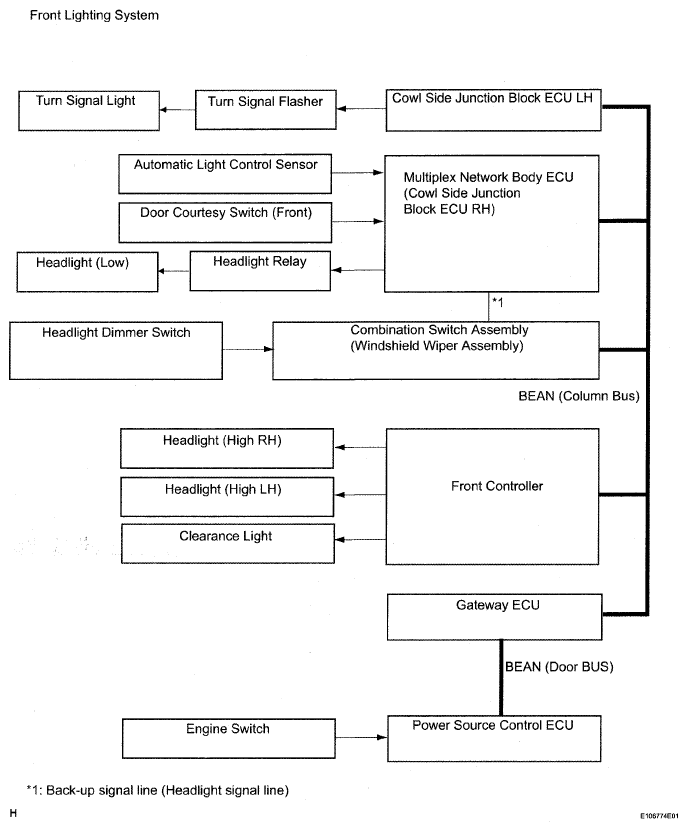

Fig 5: Lighting System Diagram - Front Lighting System
G05298754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

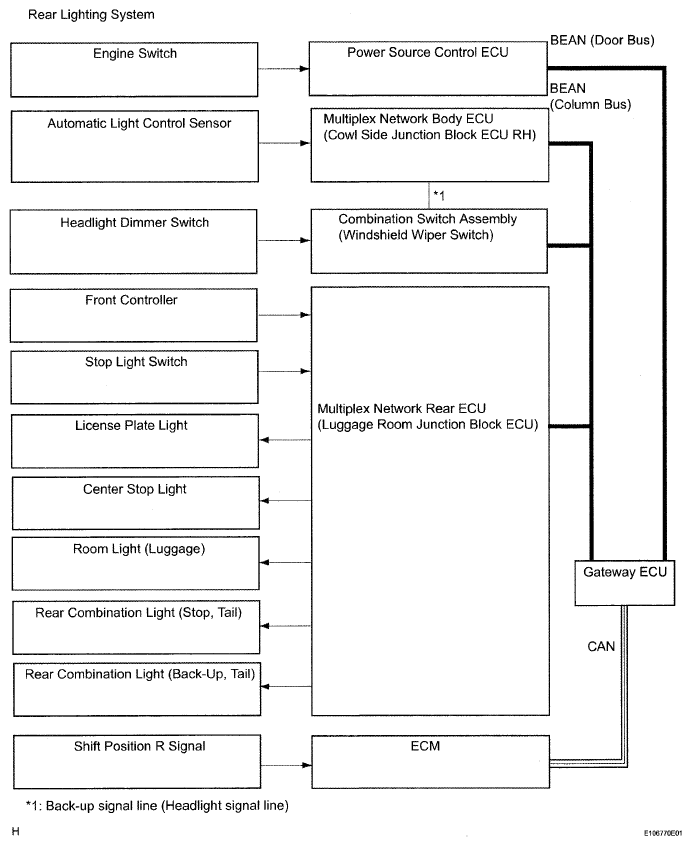

Fig 6: Lighting System Diagram - Rear Lighting System
G05298755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

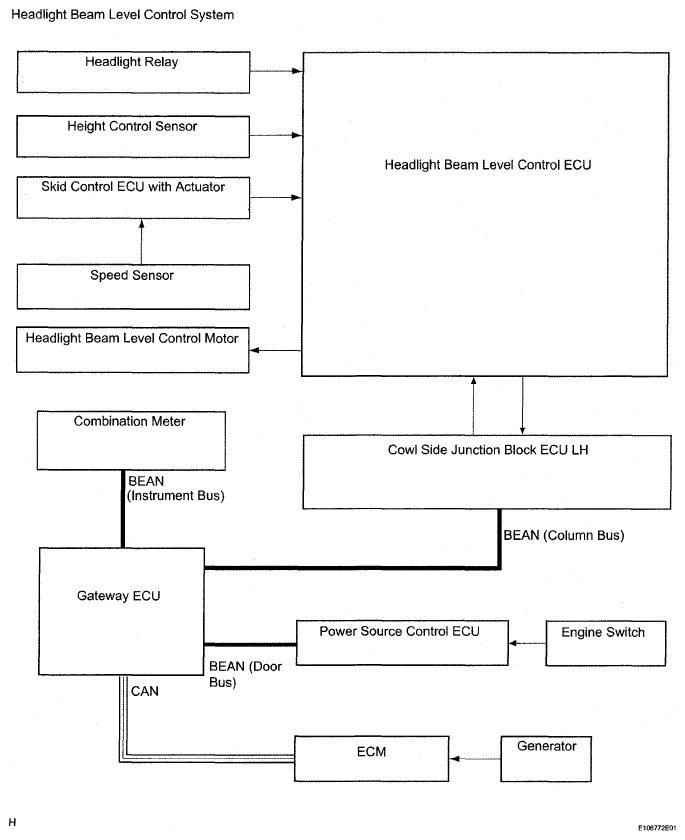

Fig 7: Lighting System Diagram - Headlight Beam Level Control System
G05298756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

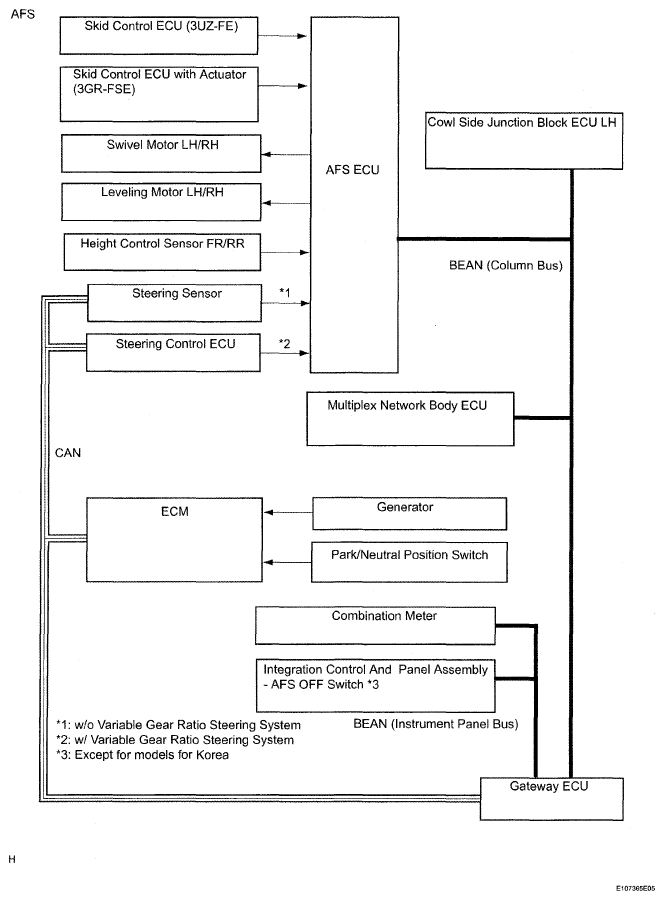

Fig 8: Lighting System Diagram - AFS
G05298757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
