Inspection Procedure

1. Check if the component shown by the sub-code is displayed in the check result of the other components.
   1. Check if "01-DC" is output for the other components.
   2. If "01-DC" is output for any other components, check if the same physical address is displayed.

      HINT:

      For the list of the components shown by sub-codes, refer to the table in the next step.

   Result

   RESULT DESCRIPTION



   Result	Proceed to
   "01-DC" is output and the same physical address is displayed	A
   "01-DC" is not output or the same physical address is not displayed	B

B: Go to step   4

A: Go to next step

1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component which has stored this code.

   Component table

   COMPONENT DESCRIPTION



   Display	Component
   AUDIO H/U	Radio receiver
   DSP-AMP	Stereo component amplifier
   G/W	Gateway ECU
   NAVI	Navigation ECU
   EMV	Multi-display

   HINT:

   "NAVI" is the component which has stored this code in the example shown in the illustration.

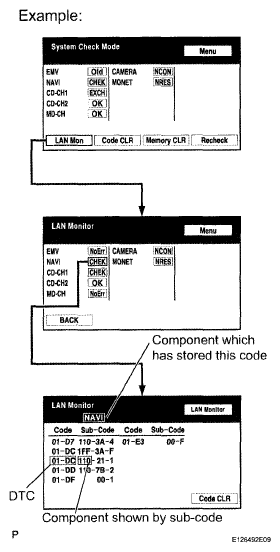

   Fig 1: LAN Monitor Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Select the component which has stored this code.

Component table

NEXT: END

1. Clear the DTCs (see DTC CHECK / CLEAR ).

   HINT:

   If "01-DC" is output for only one component, this may not indicate a malfunction.

1. Recheck for DTCs and check if the same trouble occurs again.

   OK:

   Malfunction disappears.

NG: Go to step   3

OK: END
