Driver Side Door Entry Unlock Function does not Operate: Wiring Diagram

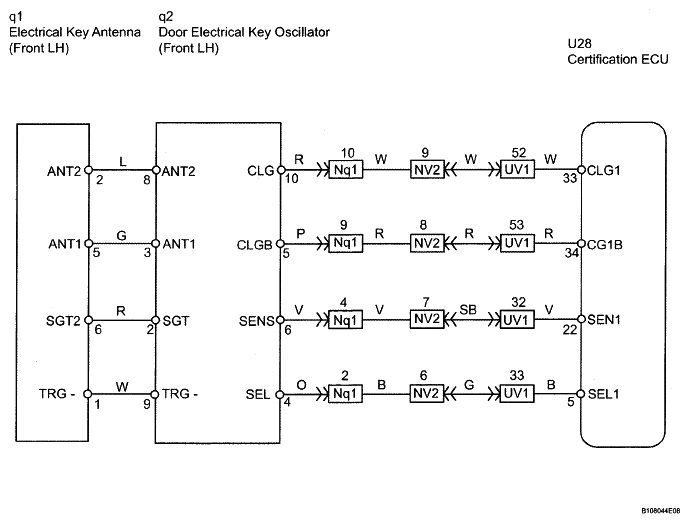

Fig 1: Driver Side Door - Wiring Diagram
G05299236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
