Rear Sunshade Assembly: Components

Fig 1: Rear Sunshade Assembly Replacement Components With Torque Specifications (1 Of 2)
G05301075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

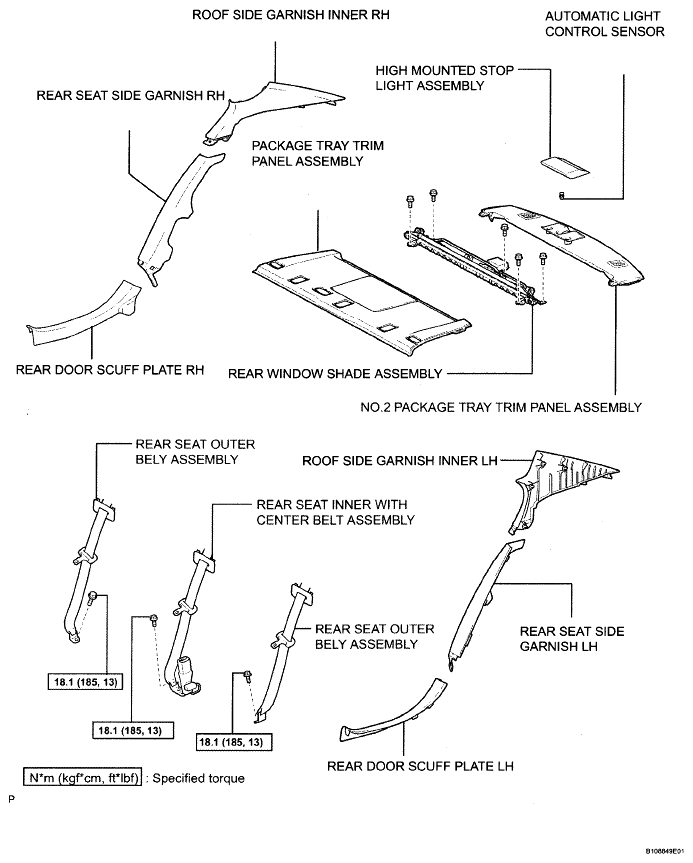

Fig 2: Rear Sunshade Assembly Replacement Components With Torque Specifications (2 Of 2)
G05301076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
