System Diagram

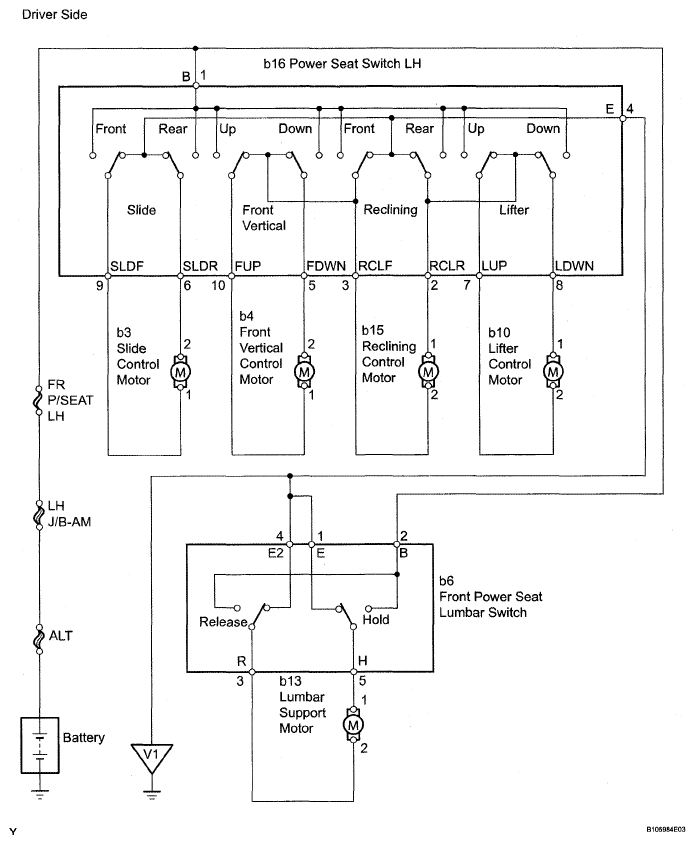

Fig 1: Front Power Seat Control Circuit Diagram (1 Of 2)
G05300442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

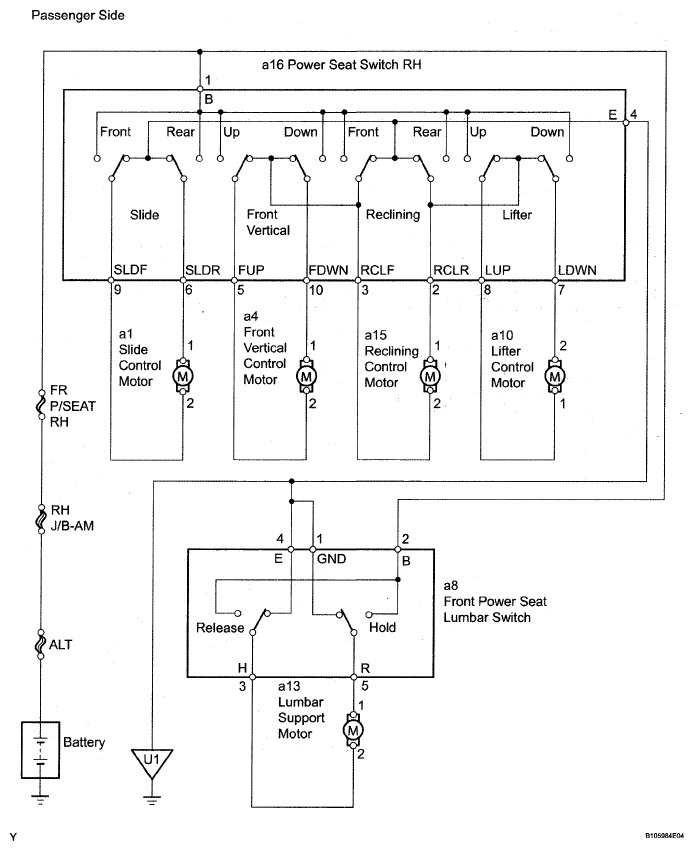

Fig 2: Front Power Seat Control Circuit Diagram (2 Of 2)
G05300443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
