Power Seat Switch: Components

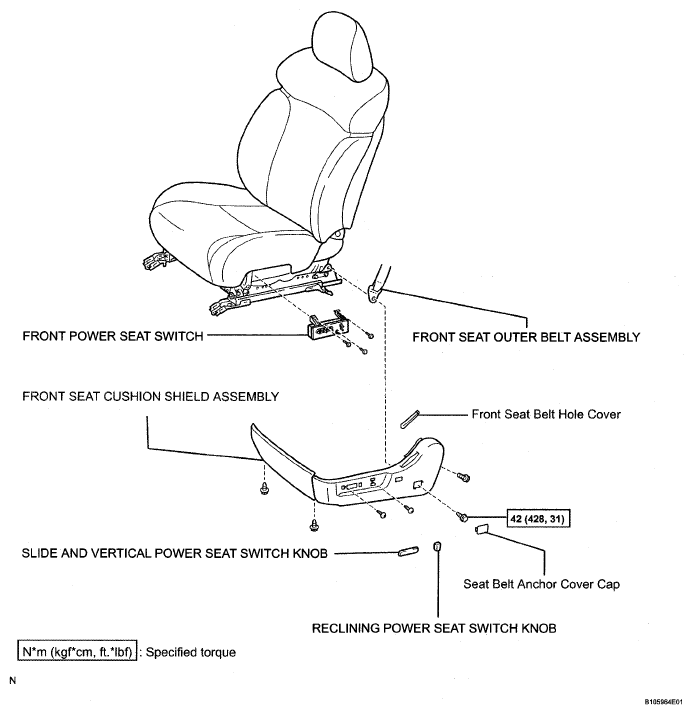

Fig 1: Power Seat Switch Replacement Components With Torque Specifications
G05300599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
