DTC P0230 Fuel Pump Primary Circuit: Wiring Diagram

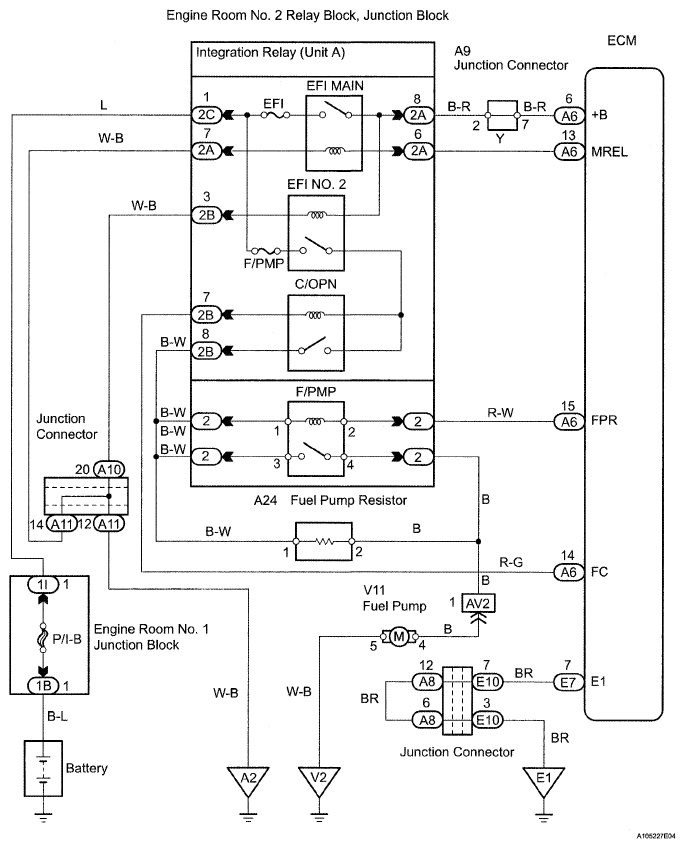

Fig 1: Fuel Pump Primary Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

This troubleshooting procedure is based on the premise that the engine is started. If the engine is not started, proceed to the problem symptoms table (see PROBLEM SYMPTOMS TABLE ).
