Inspection Procedure

1. Check for DTC (see DTC CHECK / CLEAR ).

   OK:

   DTC is not output.

NG: GO TO FLOWCHART OF EACH DTC (See  DIAGNOSTIC TROUBLE CODE CHART  )

OK: Go to next step

1. Enter test mode (see TEST MODE PROCEDURE ).
2. When switching to test mode, check if the test mode is displayed on the multi-information display of the combination meter.

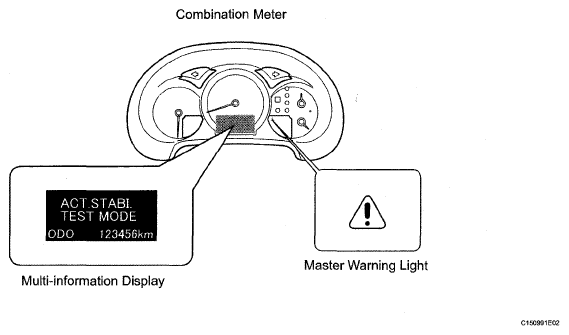

   Fig 1: Identifying Combination Meter Warning Light Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Result

B: Go to  step  4

A: Go to next step

1. Disconnect the A58 front active stabilizer control ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE REFERENCE CHART



   Tester Connection	Switch Condition	Specified Condition
   A58-1 (LCN+) - A58-8 (LCN-)	Engine switch off	54 to 69 Ω
   A58-2 (CANH) - A58-3 (CANL)	Engine switch off

Fig 2: Identifying A49 Front Active Stabilizer Control ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO METER / GAUGE SYSTEM (See  HOW TO PROCEED WITH TROUBLESHOOTING  )

1. Perform the test mode inspection (see TEST MODE PROCEDURE ).

1. Check test mode DTC (see DTC CHECK / CLEAR ).

   OK:

   DTC is not output.

NG: GO TO  TEST MODE PROCEDURE  )

OK: END (NORMAL)
