Cruise Control Main Switch: Inspection

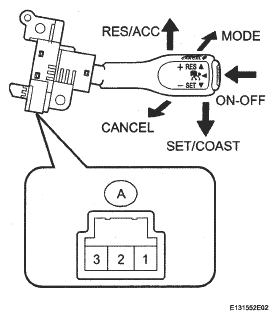

- INSPECT CRUISE CONTROL MAIN SWITCH (w/ Dynamic Radar Cruise Control System)
- Measure the resistance of the switch.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 - 3 RES / ACC switch hold ON 235 to 245 Ω 1 - 3 SET/COAST switch hold ON 620 to 640 Ω 1 - 3 CANCEL switch hold ON 1,510 to 1,570 Ω 1 - 3 Cruise control main switch OFF 10 kΩ or higher 1 - 3 Cruise control main switch ON Below 1 Ω 1 - 2 MODE switch is hold ON Below 1 Ω If the result is not as specified, replace the switch assembly.
- Measure the resistance of the switch.
- INSPECT CRUISE CONTROL MAIN SWITCH (w/o Dynamic Radar Cruise Control System)
- Measure the resistance of the switch.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 - 3 RES/ACC switch hold ON 235 to 245 Ω 1 - 3 SET/COAST switch hold ON 620 to 640 Ω 1 - 3 CANCEL switch hold ON 1,510 to 1,570 Ω 1 - 3 Cruise control main switch OFF 10 kΩ or higher 1 - 3 Cruise control main switch ON Below 1 Ω If the result is not as specified, replace the switch assembly.
- Measure the resistance of the switch.
