Inspection Procedure

1. Check the DATA LIST for proper functioning of the cruise control switch.

   Hybrid vehicle control ECU

   ITEM MEASUREMENT CONDITIONS



   Item	Measurement Item / Display (Range)	Normal Condition
   CCS MAIN SW M-CPU	Main switch signal (Main CPU) / ON or OFF	ON: Main switch ON (Pushed on) OFF: Main switch OFF (Pushed off)
   CANCEL SW	CANCEL switch signal / ON or OFF	ON: CANCEL switch ON OFF: CANCEL switch OFF
   SET/COAST SW	SET / COAST switch signal / ON or OFF	ON: SET / COAST switch ON OFF: SET / COAST switch OFF
   RES/ACC SW	RES / ACC switch signal / ON or OFF	ON: RES/ACC switch ON OFF: RES / ACC switch OFF

   OK:

   When cruise control switch operation is performed, the results will be same as above.

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

NG: GO TO Next Step

1. Disconnect the cruise control main switch connector.
2. Measure the resistance of the switch.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   1 - 3	RES / ACC switch hold ON	235 to 245 Ω
   1 - 3	SET / COAST switch hold ON	620 to 640 Ω
   1 - 3	CANCEL switch hold ON	1,510 to 1,570 Ω
   1 - 3	Cruise control main switch OFF	10 kΩ or higher
   1 - 3	Cruise control main switch ON	Below 1 Ω

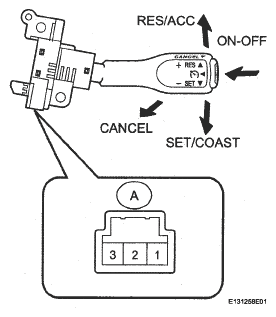

   Fig 1: Identifying Cruise Control Main Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE CRUISE CONTROL MAIN SWITCH

OK: GO TO Next Step

1. Disconnect the cruise control switch connector.
2. Disconnect the K20 spiral cable connector.
3. Measure the resistance of the spiral cable.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   A-3 - K20-1	Below 1 Ω
   A-4 - K20-2	Below 1 Ω

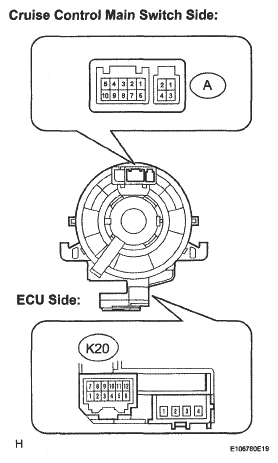

   Fig 2: Identifying K20 Spiral Cable Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SPIRAL CABLE SUB-ASSEMBLY

OK: GO TO Next Step

1. Disconnect the K20 spiral cable connector.
2. Disconnect the A54 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   K20-1 (CCS) - A54-26 (CCS)	Below 1 Ω
   K20-2 (ECC) - Body ground	Below 1 Ω
   K20-1 (CCS) - Body ground	10 kΩ or higher

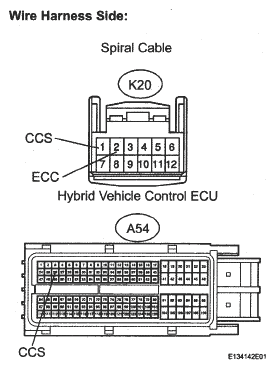

   Fig 3: Identifying K20 Spiral Cable And A54 ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
