System Diagram

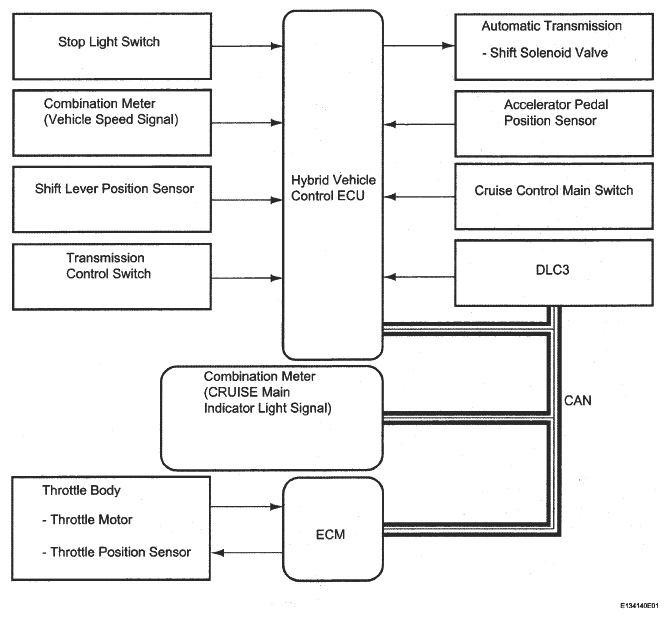

Fig 1: Identifying Cruise Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication table
COMMUNICATION CHART
Sender
Receiver
Signal
Line
Hybrid vehicle control ECU
ECM
Throttle motor operation signal
CAN
ECM
Hybrid vehicle control ECU
Throttle position sensor signal
CAN
Hybrid vehicle control ECU
Combination meter
CRUISE main indicator light signal
CAN
