Inspection Procedure

1. Disconnect the B8 sensor connector.
2. Measure the voltage of the wire harness side connector.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   B8-5 (IGB) - Body ground	Power switch ON (IG)	10 to 14 V

   Fig 1: Identifying B8 Sensor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG:  GO TO step  3

OK: GO TO Next Step

1. Disconnect the B8 sensor connector.
2. Disconnect the A54 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   B8-1 (LGND) - A54-1 (LGND)	Below 1 Ω
   B8-1 (LGND) - Body ground	10 kΩ or higher

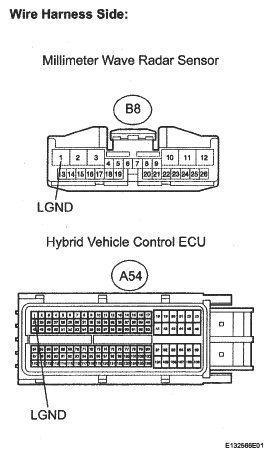

   Fig 2: Identifying B8 Sensor And A54 ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

1. Disconnect the B8 sensor connector.
2. Disconnect the K13 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   B8-5 (IGB) - K13-13 (IGB)	Below 1 Ω
   B8-5 (IGB) - Body ground	10 kΩ or higher

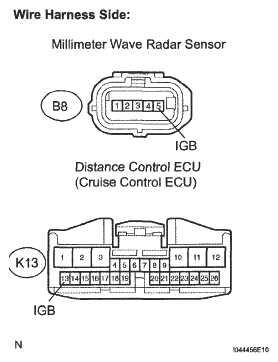

   Fig 3: Identifying B8 Sensor And K13 ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
