Operation Check

INPUT SIGNAL CHECK
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Check the cruise control main switch (ON-OFF, CANCEL, SET / COAST, RES / ACC, and MODE) using the DATA LIST function in the intelligent tester

  Fig 1: Identifying Cruise Control Main Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT MODE SWITCH
1. Turn the power switch ON (IG).

  Fig 2: Inspecting Power Switch ON
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the cruise control main switch ON. Then push the cruise control main switch to MODE for 1 second or more to change to constant speed control mode. Check that "NORM" is indicated on the display.
  NOTE: Do not push any other switches before pushing the cruise control main switch to MODE. If another switch is pushed, turn the main switch OFF and repeat the procedure above.

  HINT:

  If a malfunction is detected, turn the power switch OFF and repeat the procedure above.

  Fig 3: Indicating NORM Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STEERING PAD SWITCH
1. Turn the power switch ON (IG).
2. Turn the cruise control main switch ON.
3. Turn ON the distance control switch of the steering pad switch.
4. Check that the indication of the vehicle-to-vehicle distance, which is shown in the multi-information display on the combination meter, changes from long to middle to short in that order.

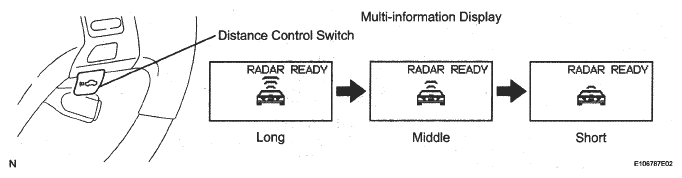

  Fig 4: Multi-Information Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The indication is automatically set to long each time the engine is started.
