Inspection Procedure

HINT:

After the inspection is completed, clear the DTCs.

1. CHECK WIRE HARNESS (MULTI-DISPLAY - TELEVISION CAMERA)

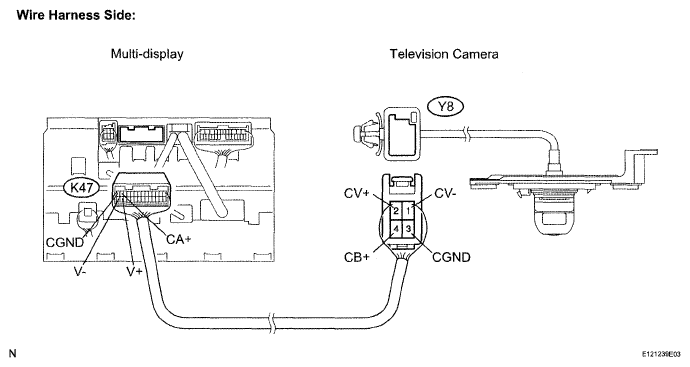

   Fig 1: Checking Wire Harness (Multi-Display - Television Camera)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the K47 display connector.
   2. Disconnect the Y8 camera connector.
   3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection	Specified Condition
      Y8-4 (CB+) - K47-13 (CA+)	Below 1 Ω
      Y8-3 (CGND) - K47-14 (CGND)	Below 1 Ω
      Y8-2 (CV+) - K47-27 (V+)	Below 1 Ω
      Y8-1 (CV-) - K47-28 (V-)	Below 1 Ω
      Y8-4 (CB+) - Body ground	10 kΩ or higher
      Y8-3 (CGND) - Body ground	10 kΩ or higher
      Y8-2 (CV+) - Body ground	10 kΩ or higher
      Y8-1 (CV-) - Body ground	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: GO TO Next Step

2. CHECK MULTI-DISPLAY (CA+ VOLTAGE)
   1. Measure the voltage of the display.

      Standard voltage

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection	Condition	Specified Condition
      K47-13 (CA+) - K47-14 (CGND)	Power switch ON (IG), shift lever in R position	Approx. 6 V

   Fig 2: Identifying K47 Connector Terminals
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE MULTI-DISPLAY

   OK: REPLACE TELEVISION CAMERA ASSEMBLY
