Interior Light: Notes

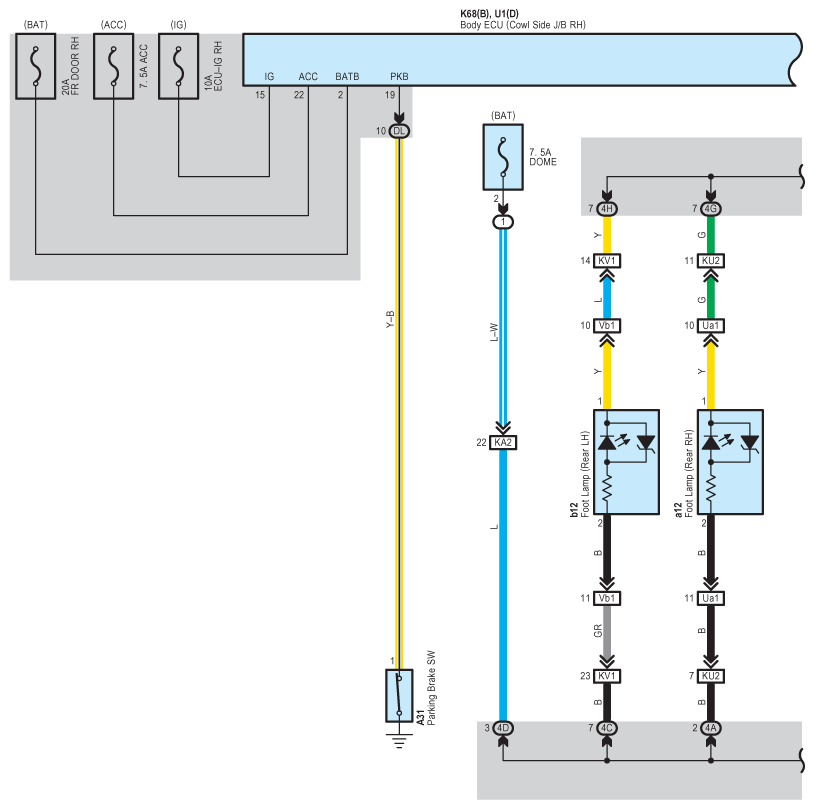

Fig 1: Interior Light Wiring Diagram (1 Of 14)

G08919444

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

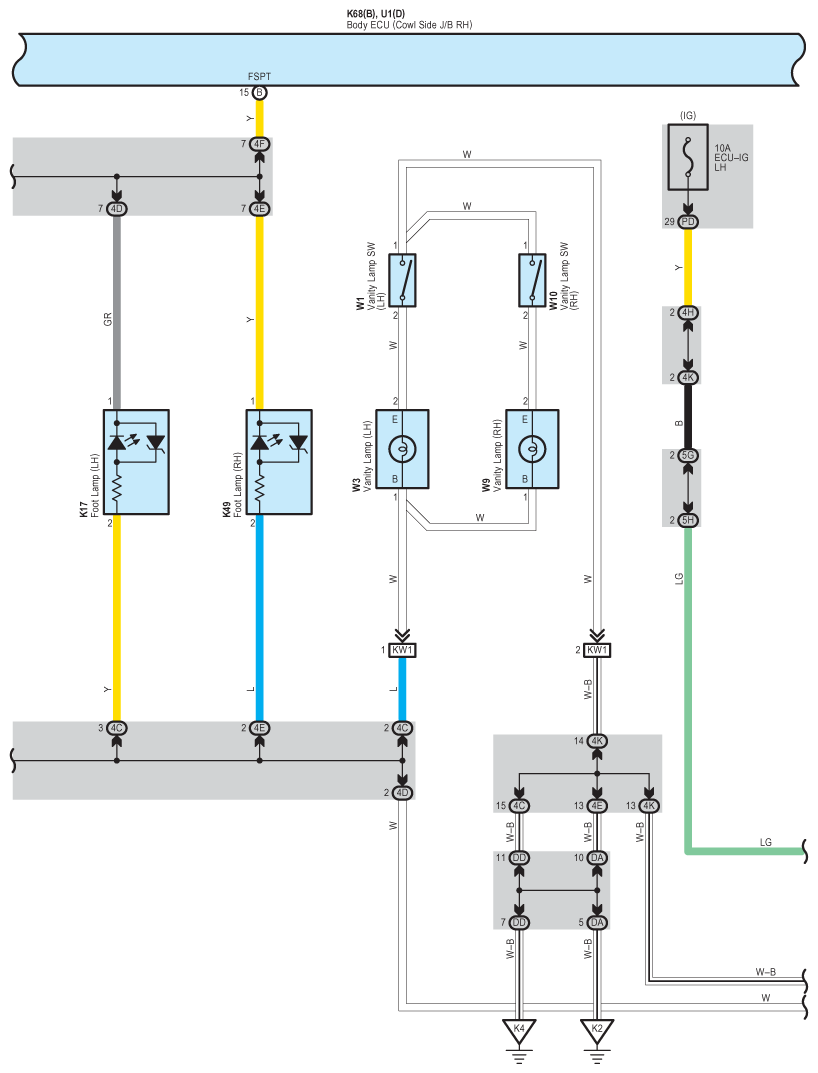

Fig 2: Interior Light Wiring Diagram (2 Of 14)

G08919445

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

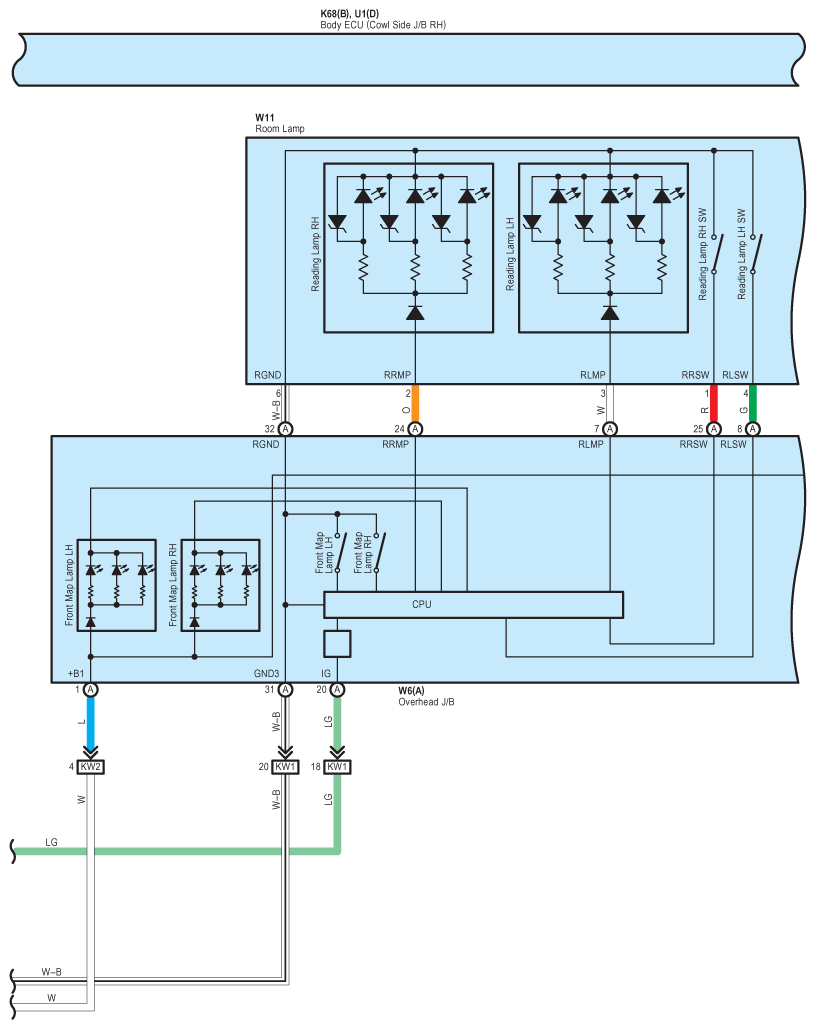

Fig 3: Interior Light Wiring Diagram (3 Of 14)

G08919446

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

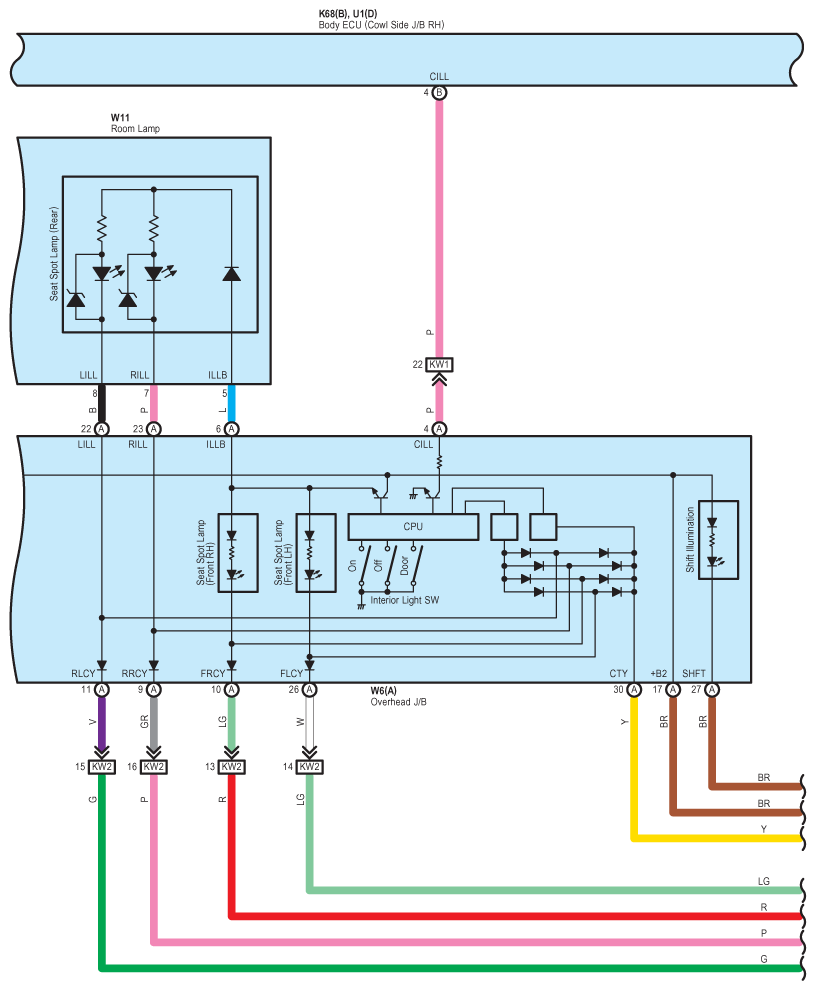

Fig 4: Interior Light Wiring Diagram (4 Of 14)

G08919447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

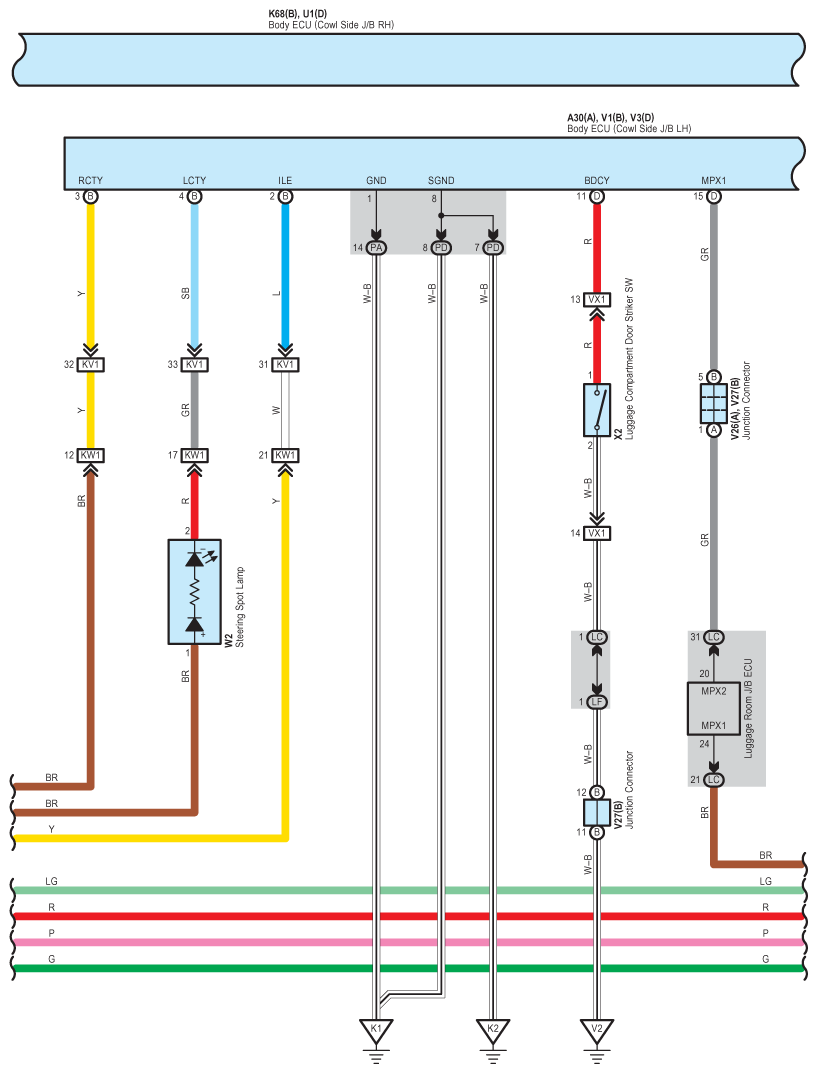

Fig 5: Interior Light Wiring Diagram (5 Of 14)

G08919448

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

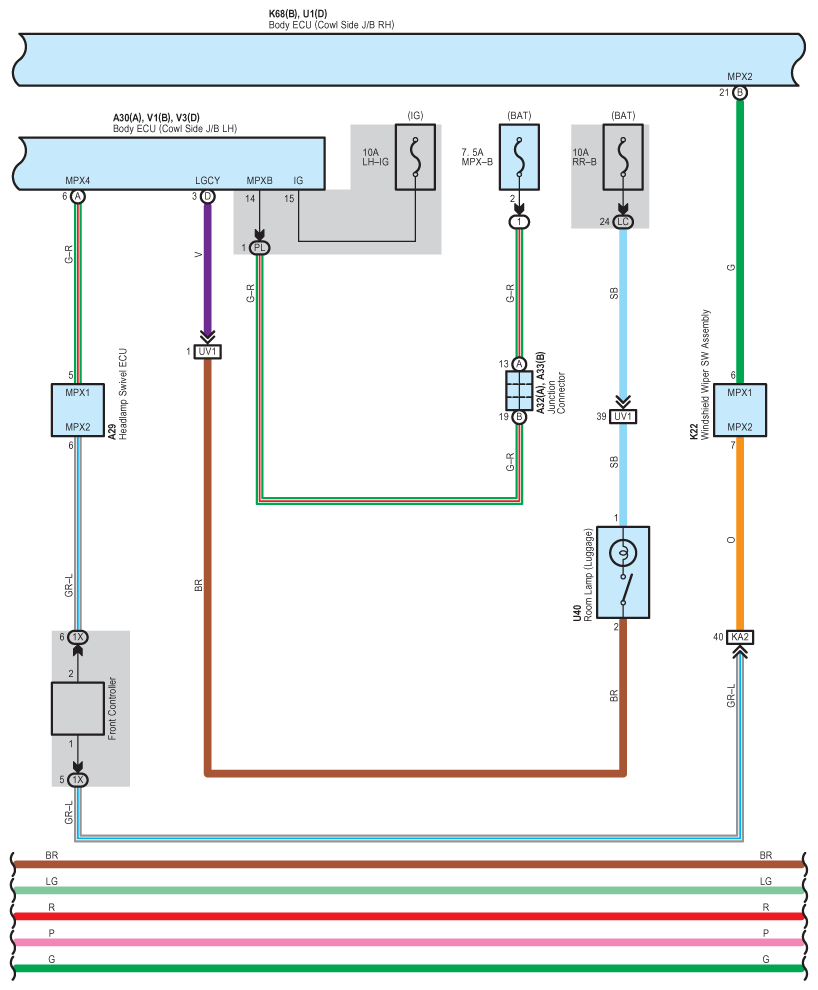

Fig 6: Interior Light Wiring Diagram (6 Of 14)

G08919449

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

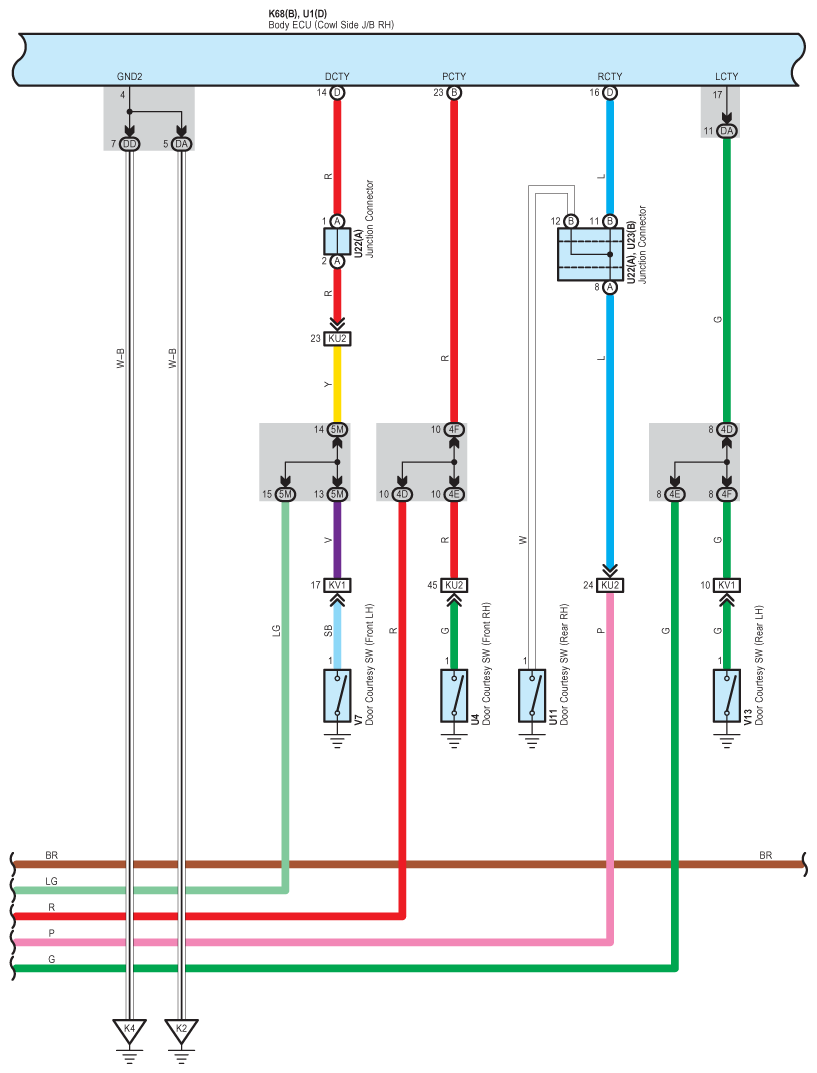

Fig 7: Interior Light Wiring Diagram (7 Of 14)

G08919450

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

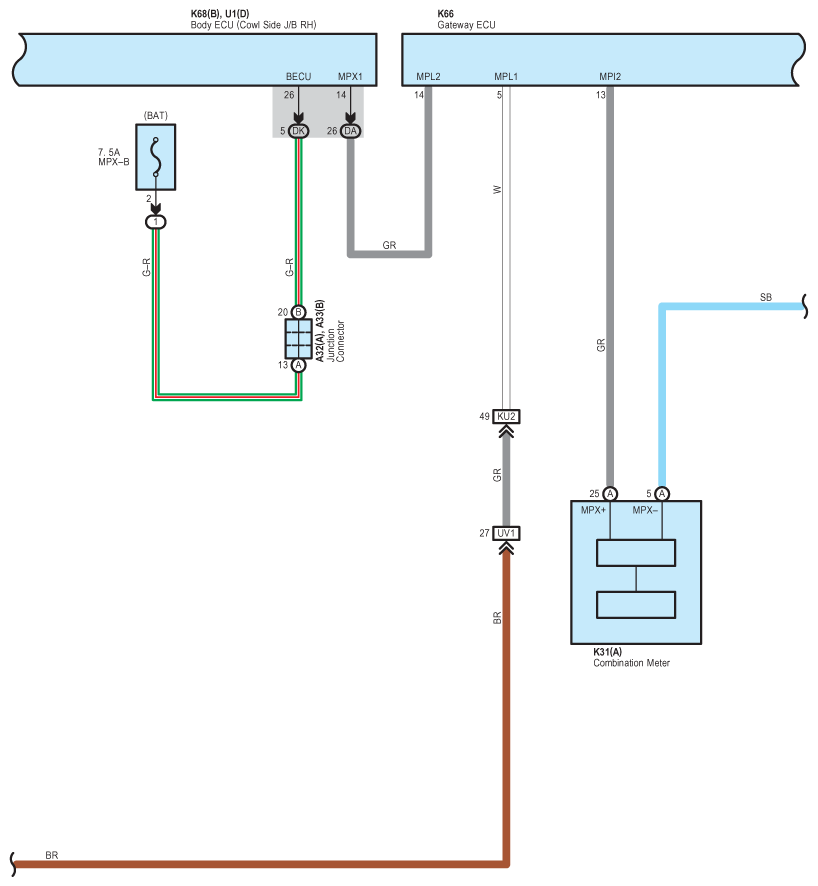

Fig 8: Interior Light Wiring Diagram (8 Of 14)

G08919451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

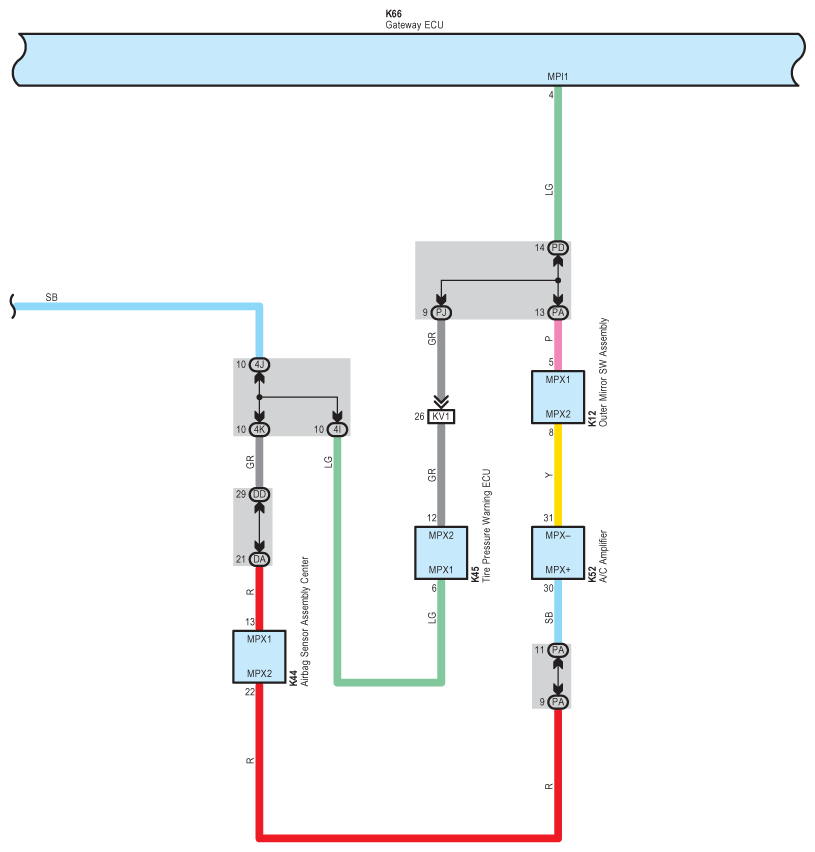

Fig 9: Interior Light Wiring Diagram (9 Of 14)

G08919452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

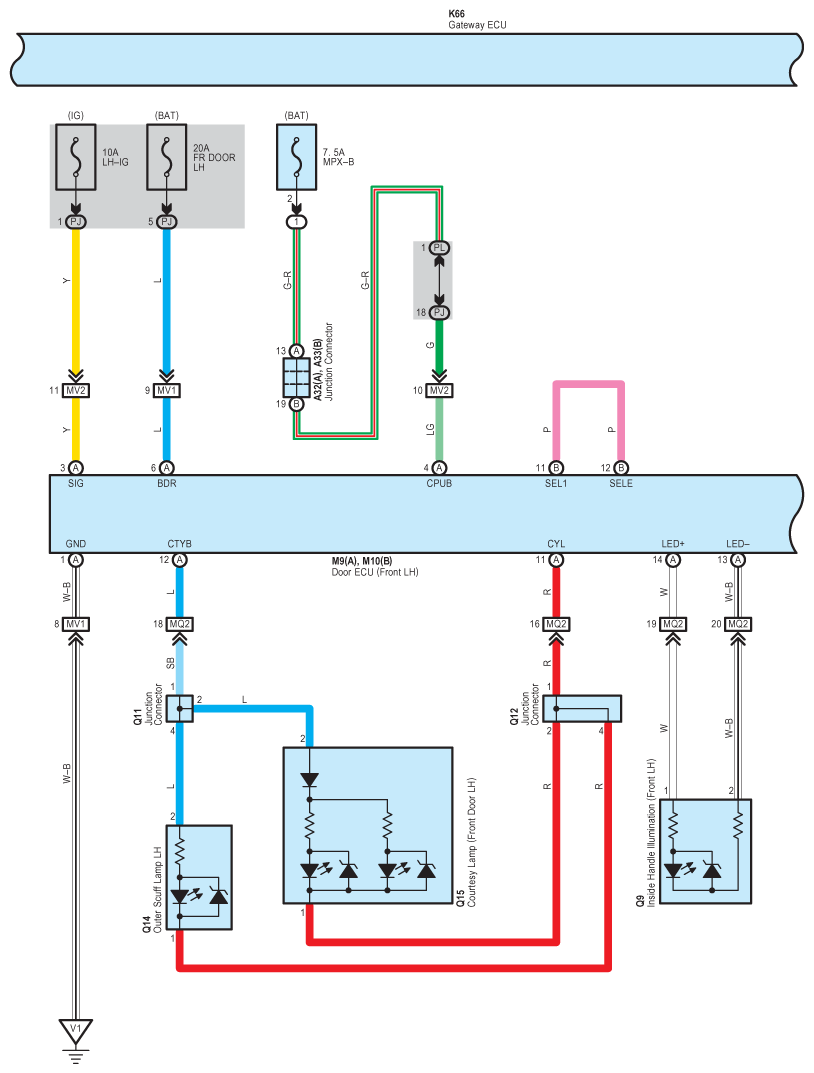

Fig 10: Interior Light Wiring Diagram (10 Of 14)

G08919453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

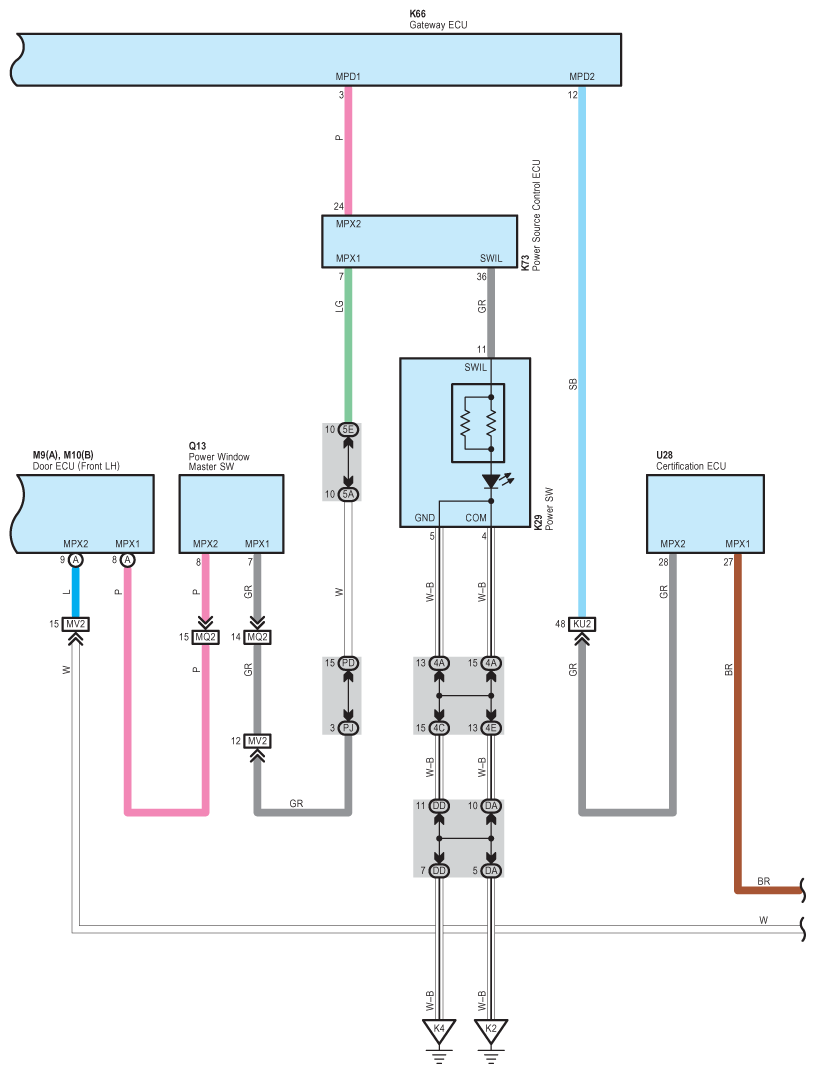

Fig 11: Interior Light Wiring Diagram (11 Of 14)

G08919454

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

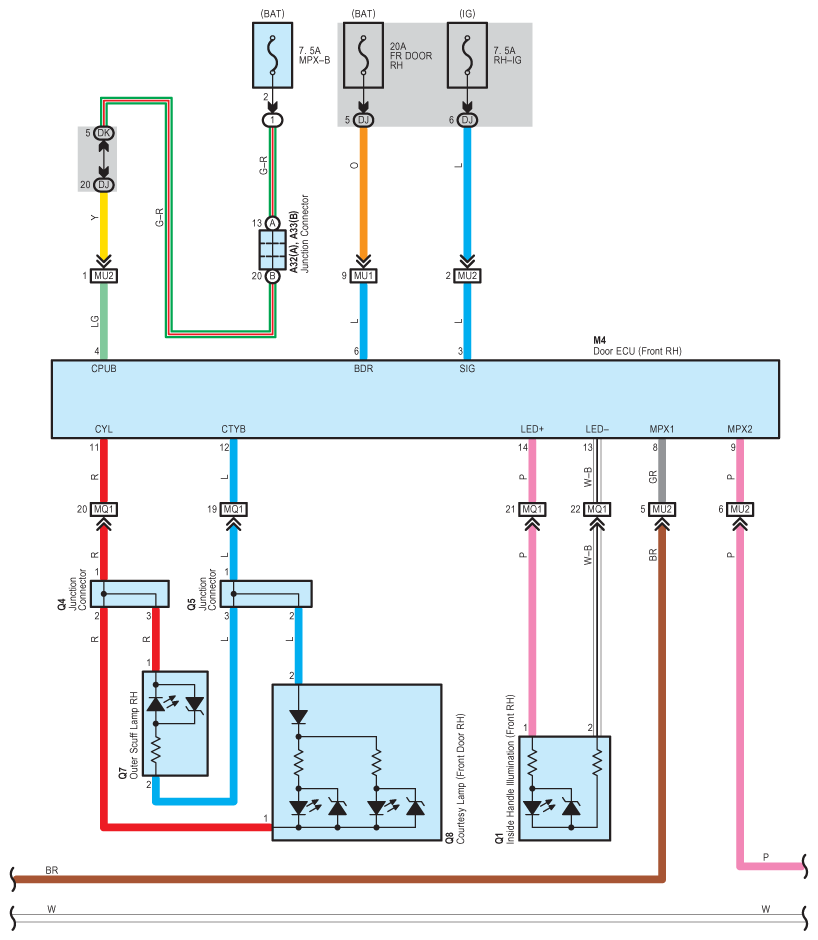

Fig 12: Interior Light Wiring Diagram (12 Of 14)

G08919455

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

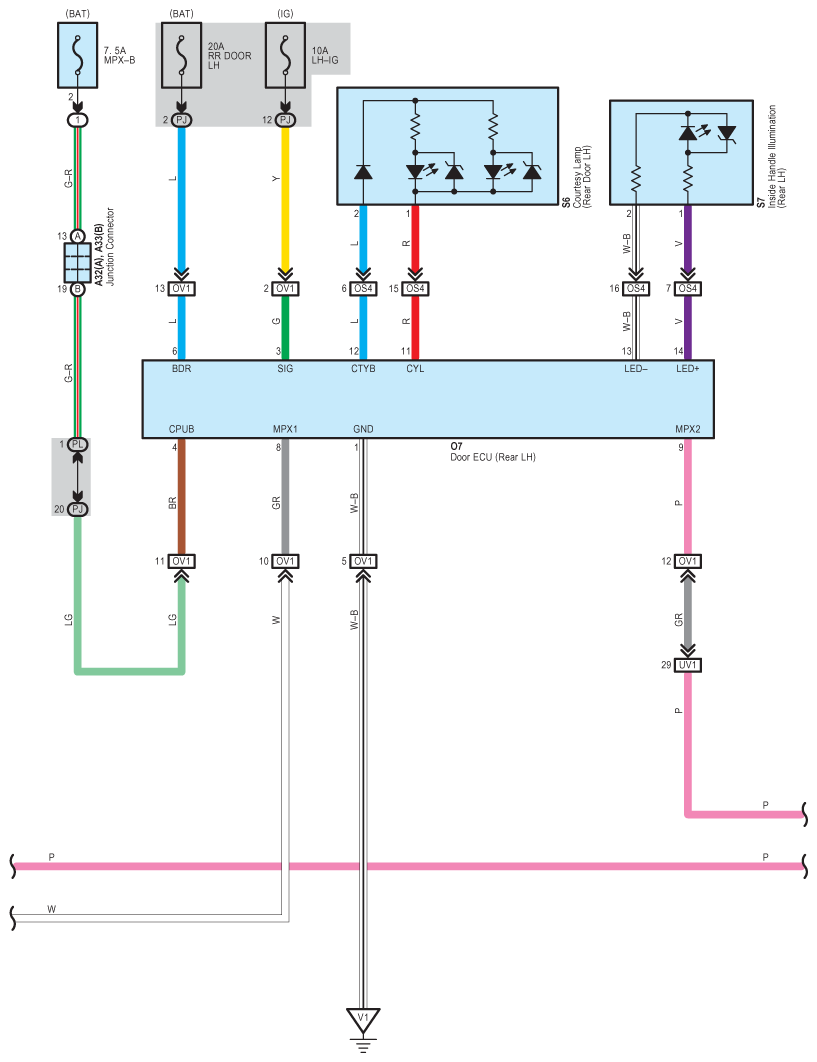

Fig 13: Interior Light Wiring Diagram (13 Of 14)

G08919456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

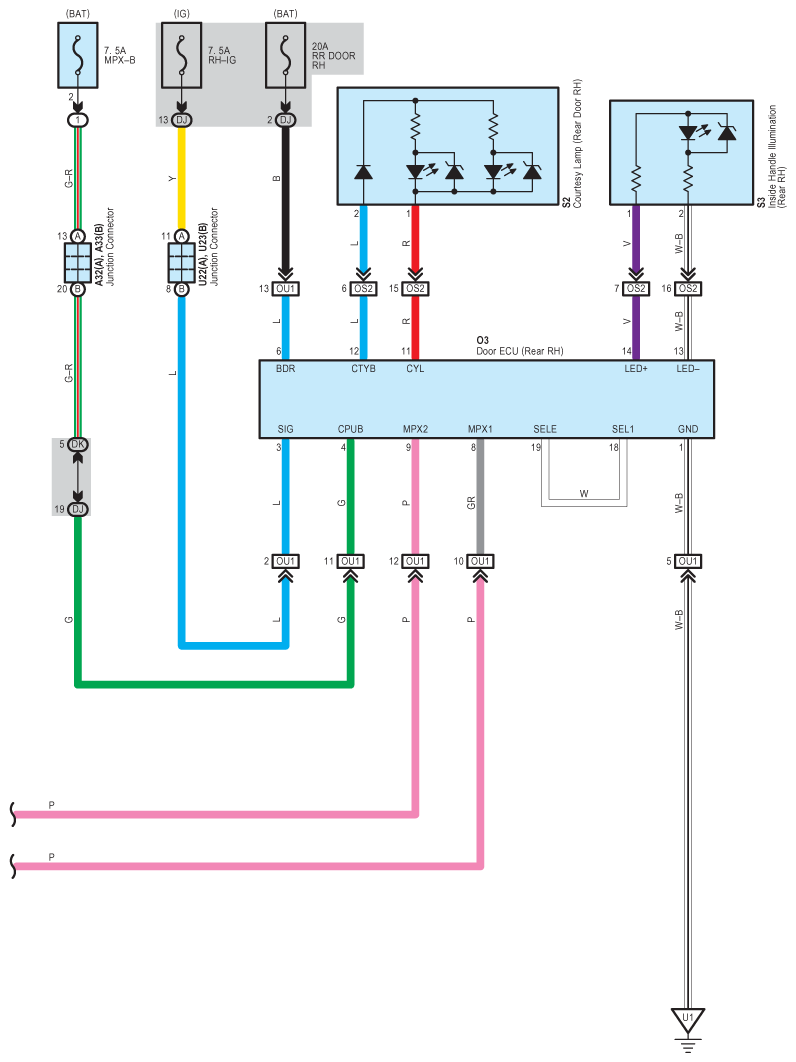

Fig 14: Interior Light Wiring Diagram (14 Of 14)

G08919457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
