Inspection Procedure
- INSPECT CRUISE CONTROL MAIN SWITCH
- Remove the cruise control main switch connector.

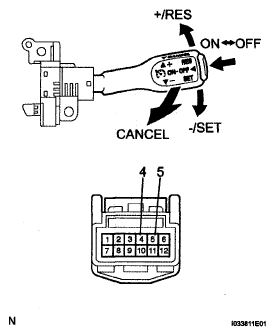

- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 4 - 5 Neutral 10 kΩ or higher 4 - 5 +/RES 210 to 270 Ω 4 - 5 -/SET 560 to 700 Ω 4 - 5 CANCEL 1,380 to 1,700 Ω 4 - 5 Main Switch off 10 kΩ or higher 4 - 5 Main Switch on Below 1 Ω NG: REPLACE CRUISE CONTROL MAIN SWITCH
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (CRUISE CONTROL MAIN SWITCH, BODY GROUND - ECM)
- Check for open and short circuit in harness and connector between cruise control main switch and ECM (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
- Check for open and short circuit in harness and connector between cruise control main switch and body ground (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
