Display Signal Circuit Between Disc Player Changer and Multi-Display: Wiring Diagram

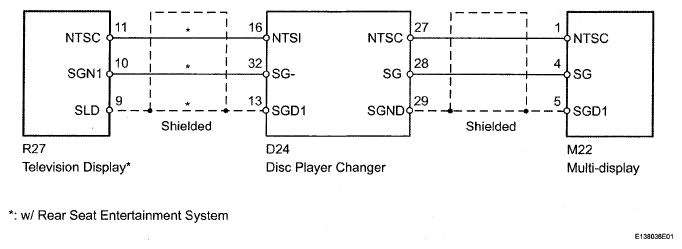

Fig 1: Identifying Display Signal Circuit Between Disc Player Changer & Multi-Display Wiring Diagram
G05266495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
