Key Lock-In Prevention Function Does Not Work Properly (Manual Operation and Operation Interlocked With Key Are Active): Wiring Diagram

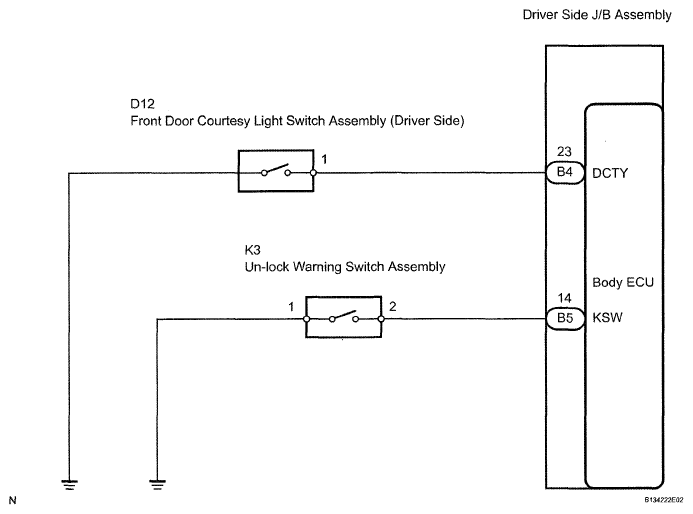

Fig 1: Identifying Key Lock-In Prevention Function Does Not Work Properly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
