Rear Power Window RH Auto Up/Down Function does not Operate with Rear Power Window Switch RH: Wiring Diagram

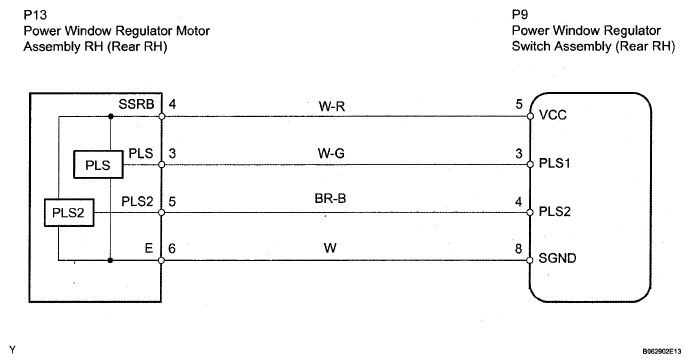

Fig 1: Identifying Power Window Regulator Motor Wiring Diagram
G05266768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
