Electric Modulated Air Suspension: Notes

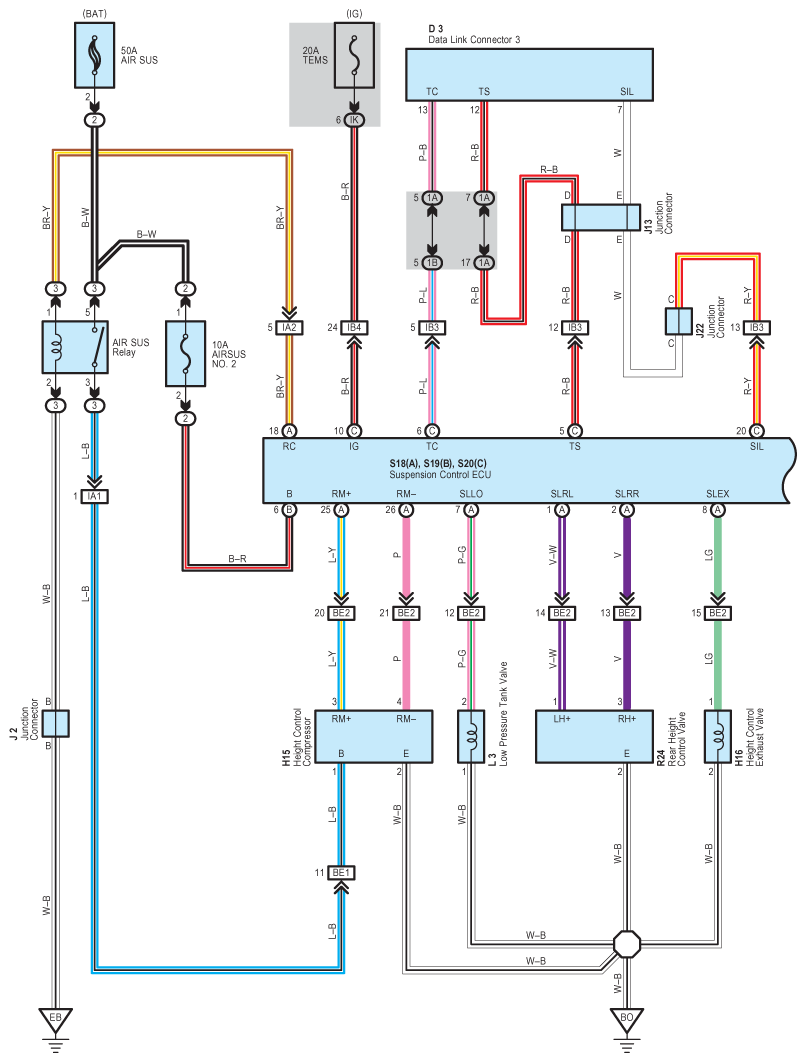

Fig 1: Electric Modulated Air Suspension System Wiring Diagram (1 Of 6)
G08917636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

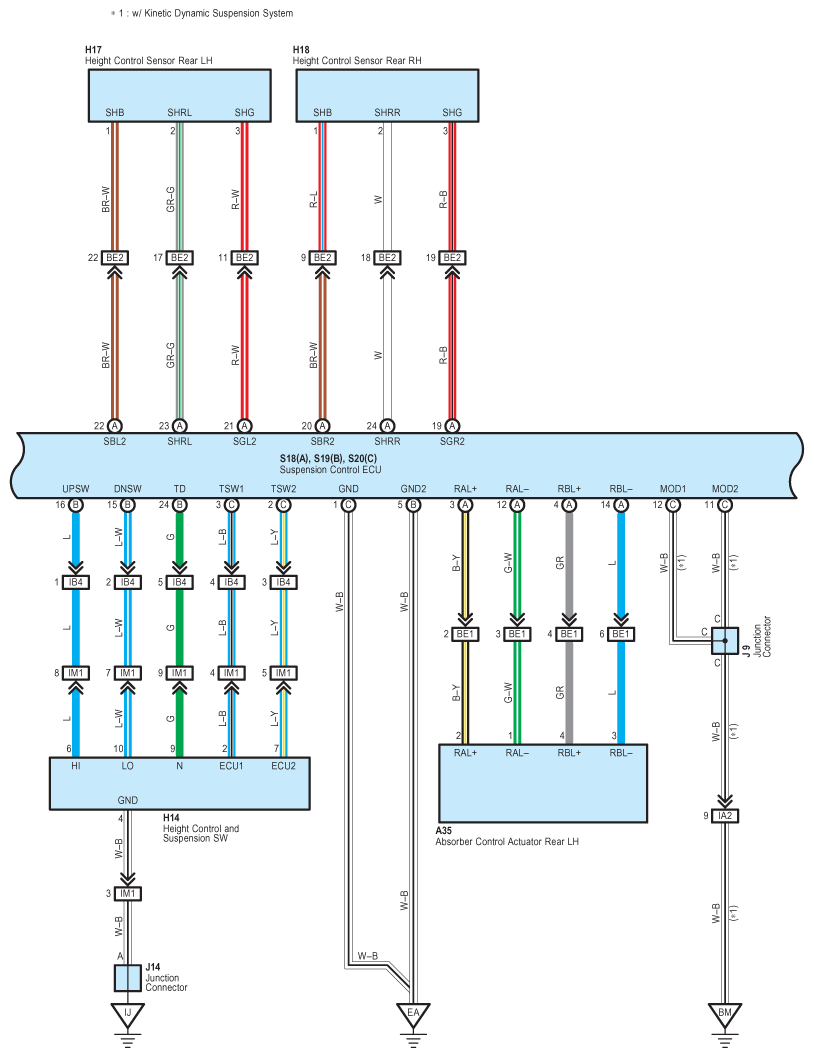

Fig 2: Electric Modulated Air Suspension System Wiring Diagram (2 Of 6)
G08917637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

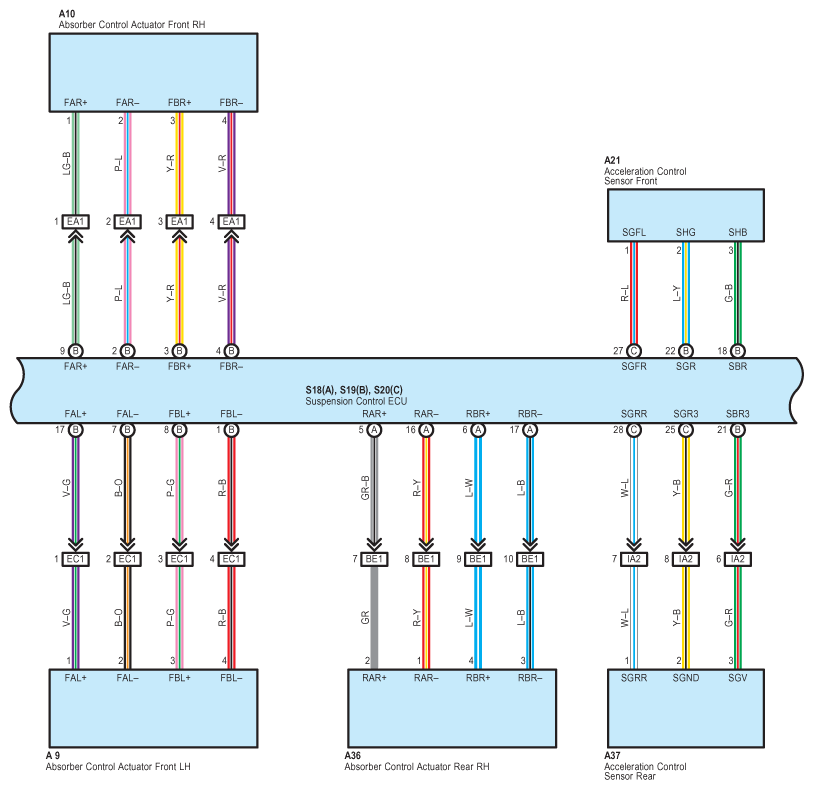

Fig 3: Electric Modulated Air Suspension System Wiring Diagram (3 Of 6)
G08917638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

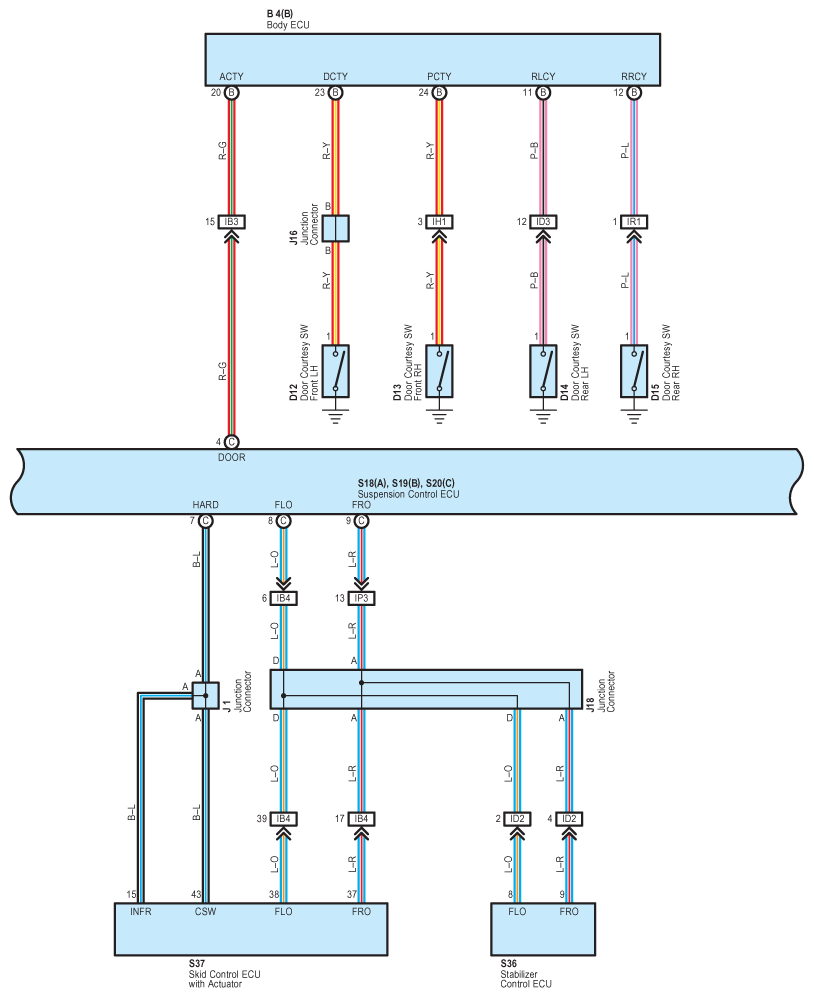

Fig 4: Electric Modulated Air Suspension System Wiring Diagram (4 Of 6)
G08917639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

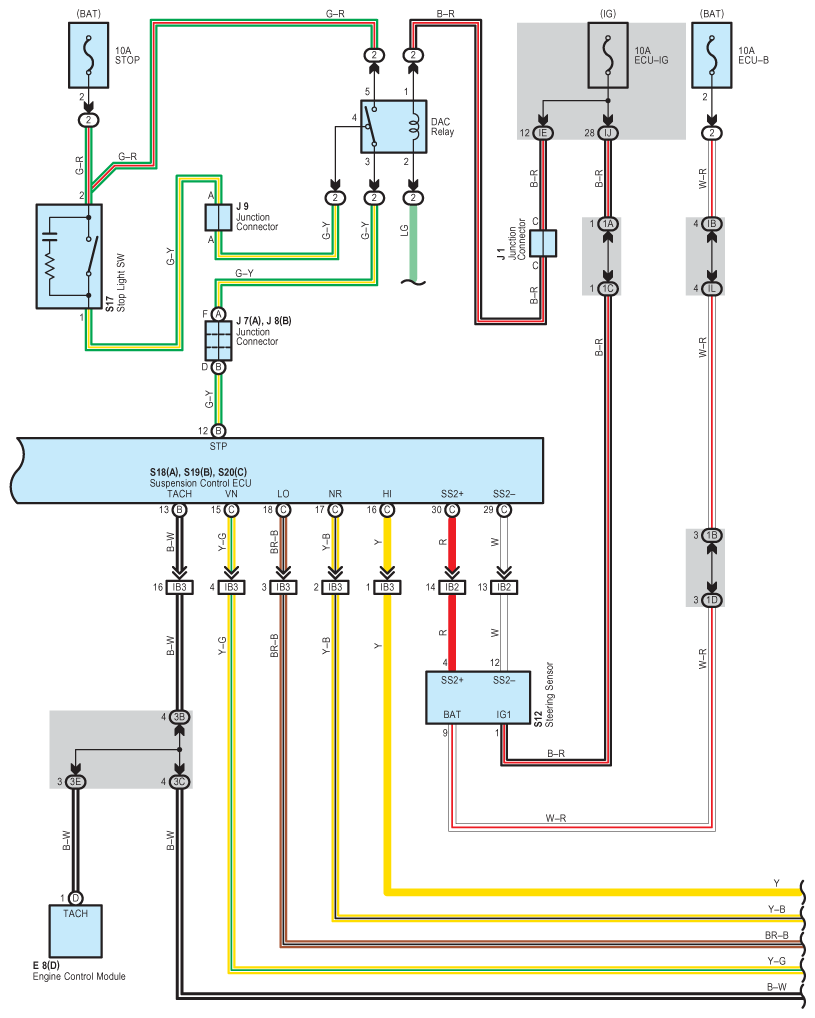

Fig 5: Electric Modulated Air Suspension System Wiring Diagram (5 Of 6)
G08917640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

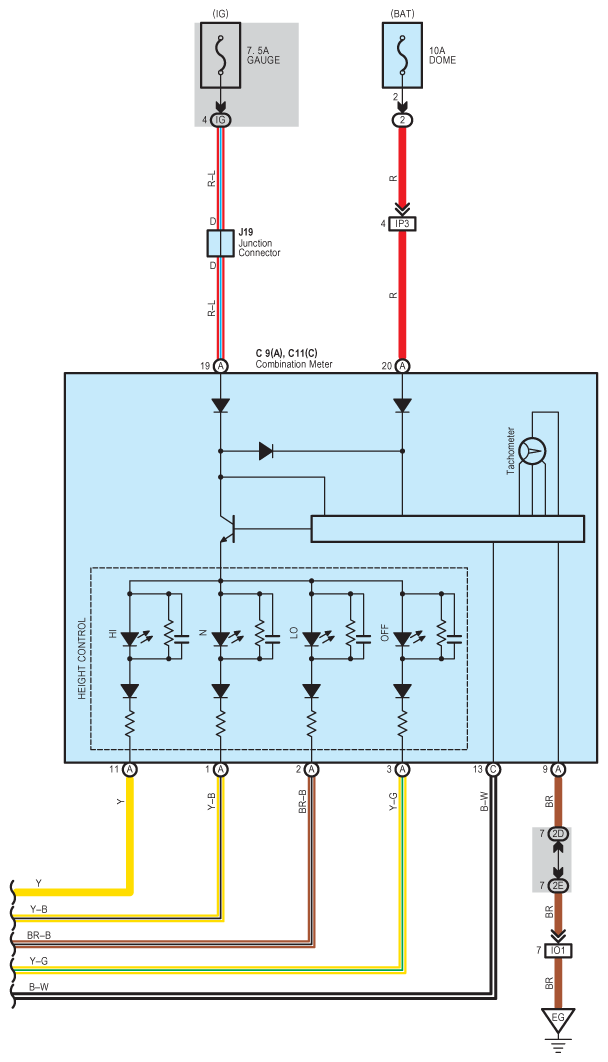

Fig 6: Electric Modulated Air Suspension System Wiring Diagram (6 Of 6)
G08917641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
