Initialization Of Power Window During PDS (PD050-06)
Publication date: 2006-08-10Reference number: PD050-06
INITIALIZATION OF POWER WINDOW DURING PDS
TECHNICAL SERVICE BULLETIN
Reference Number(s): PD050-06, Date of Issue:
August 10, 2006
| LEXUS: | 2007 GX 470 |
| Section: | PRE-DELIVERY SERVICE |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
Introduction
As a result of the removal of the Short Pin, the "one-touch open and close" (AUTO) and "jam protection" functions for each door's power window may become inoperative due to loss of the window position memory stored in the microcomputer.
Initialize each door's "one-touch" power window after installing the Short Pin in its original location during Pre-Delivery Service (PDS).
NOTE:
Anytime the battery terminal has been disconnected, each door's power window MUST be re-initialized.
Applicable Vehicles
- 2007 model year GX 470 vehicles.
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
Initialization Procedure

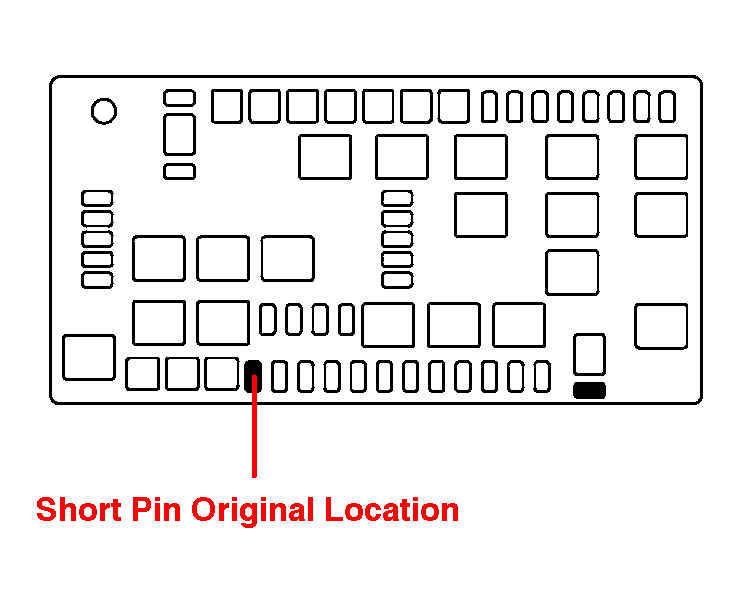

Check that the Short Pin is installed in its original location. (Refer to TSIB No. PD048-06, SHORT PIN INSTALLATION DURING PDS

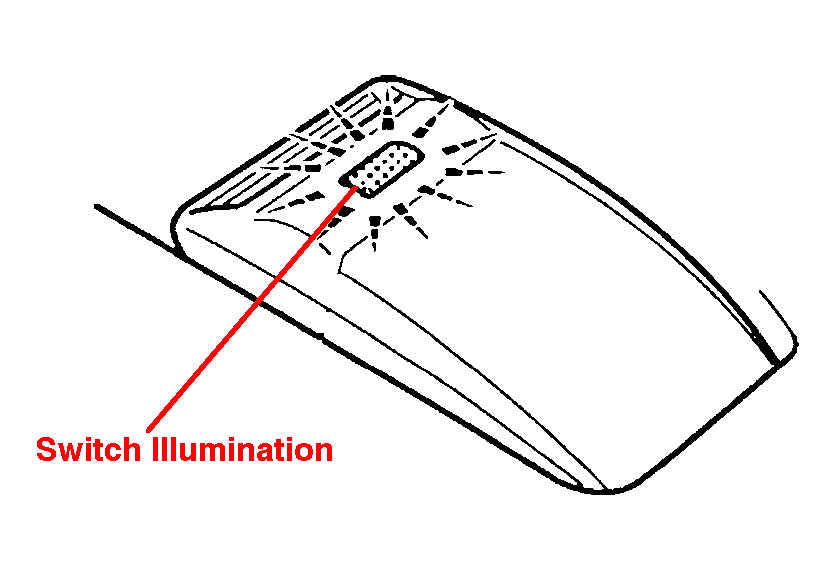

- Turn the ignition to the "ON" position.NOTE: At this time, the power window switch for each door's window should be blinking.
- Push down and hold the driver's door power window switch to completely open the window.

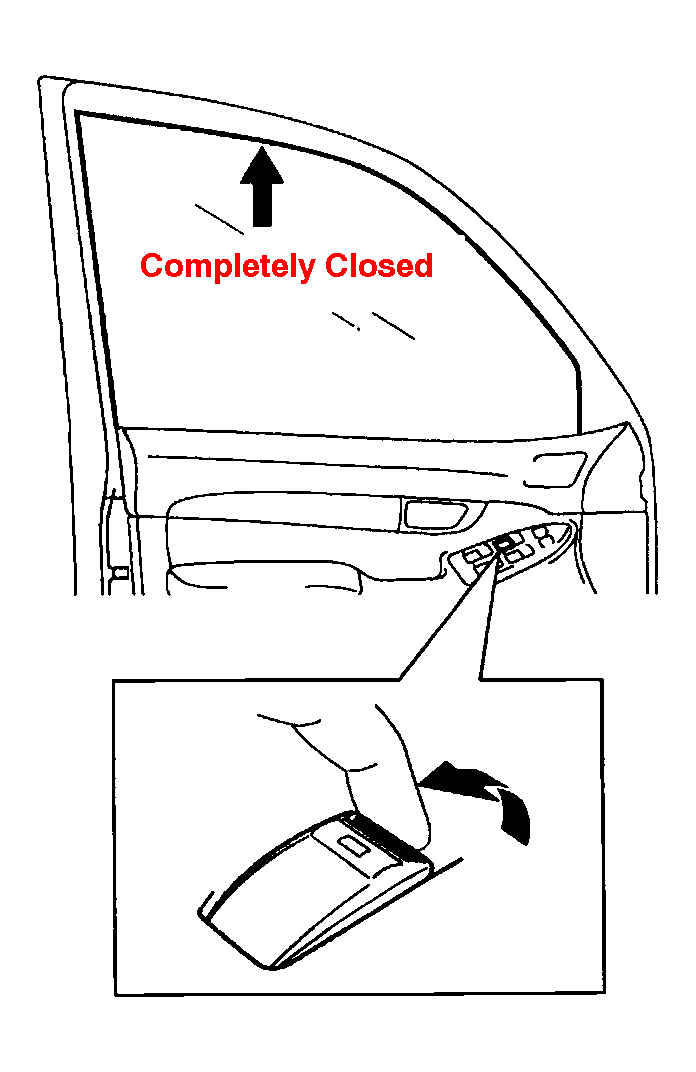

- Pull and hold up the driver's door power window switch until the window closes. Continue holding the switch for approximately one second until the switch changes from blinking to a constant illumination.
- Check for proper operation of the "one-touch open and close" function by fully pushing the switch to the "DOWN" and "UP" positions.NOTE: Jam protection function becomes effective through the above initialization procedure.
- Repeat the above procedure on each door's power window switch.
